雅马哈Yamaha-IMX644-Mixer-Service-Manual维修服务手册说明书含电器原理图

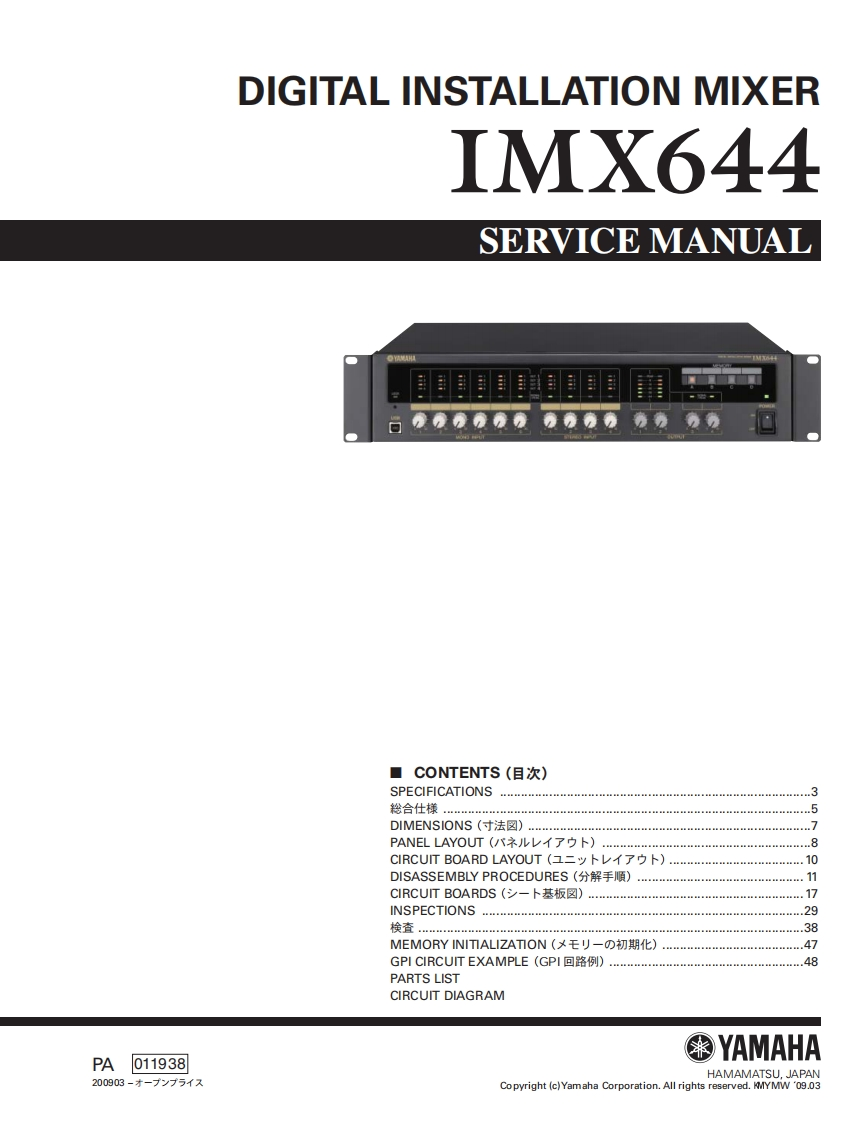

DIGITAL INSTALLATION MIXERIMX644SERVICE MANUAL■CONTENTS(目次)SPECIFICATIONS3糝合仕樣.…“.5DIMENSIONS(寸法☒)7PANEL LAYOUT(/八礻儿L了ヴ卜)8CIRCUIT BOARD LAYOUT(ユ二y卜y了7)..10DISASSEMBLY PROCEDURES(分解手順).11CIRCUIT BOARDS(>-卜基板☒).17INSPECTIONS29検查38MEMORY INITΠALIZATION(E)-D初期化).47GPI CIRCUIT EXAMPLE(GPI回路例)..48PARTS LISTCIRCUIT DIAGRAMYAMAHAPAO11938HAMAMATSU,JAPAN200903-才-ブブ5入Copyright (c)Yamaha Corporation.All rights reserved.KMYMW '09.03
