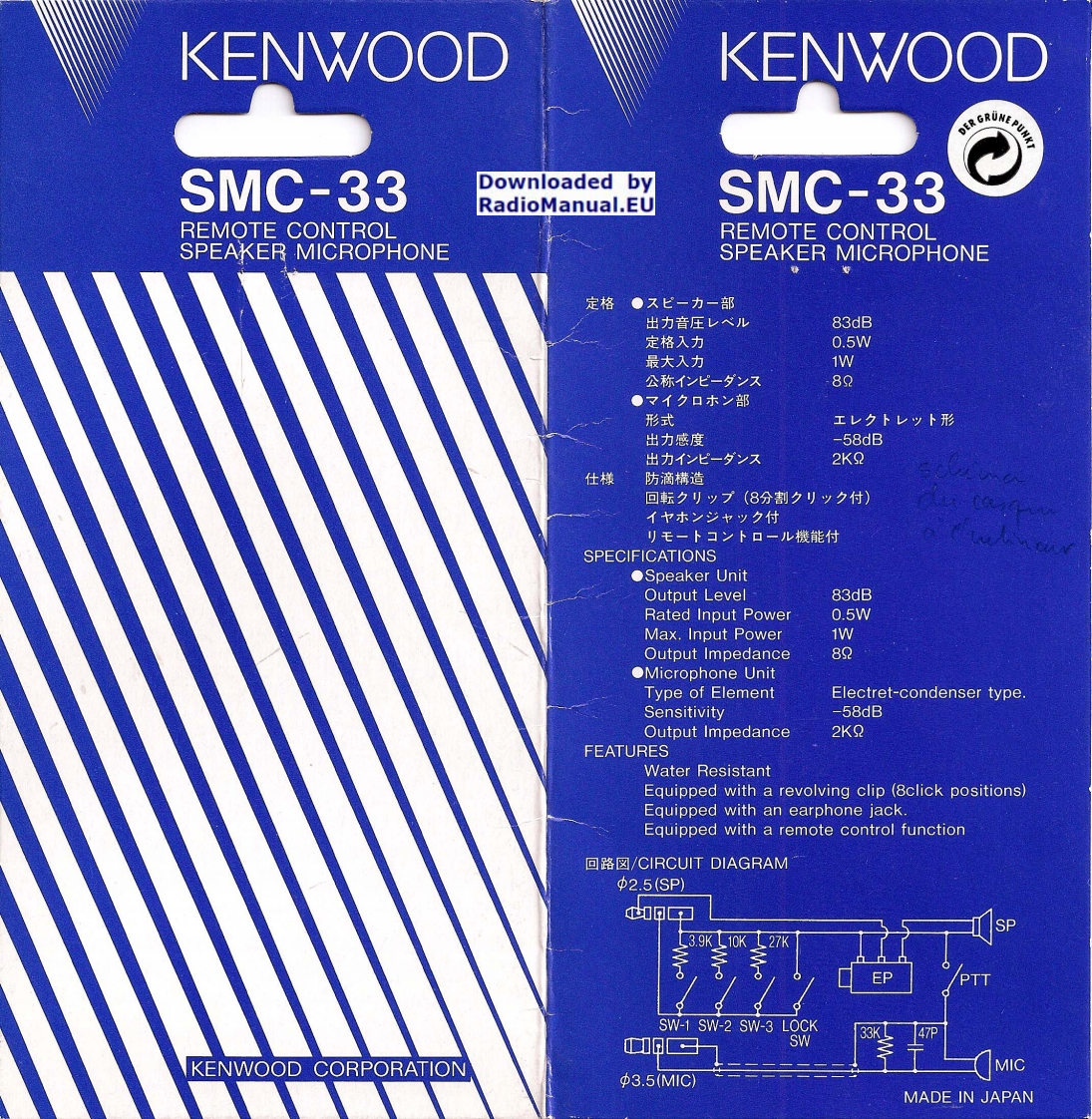

KENWOODKENWOODSMC-33Downloaded byRadioManual.EUSMC-33REMOTE CONTROLREMOTE CONTROLSPEAKER MICROPHONESPEAKER MICROPHONE定格●又上一力一部出力音压レ入儿83dB定格入力0.5W最大入力1W公称北一夕又82●マ不夕口ホ之部形式工夕卜以卜形出力感度-58dB出力北-夕又2K2仕模防滴構造回酝夕刂yブ(8分割夕刂义夕付)ヤ本之中y夕付)毛一卜口之卜可一儿機能付SPECIFICATIONS●Speaker UnitOutput Level83dBRated Input Power0.5WMax.Input Power1WOutput Impedance82●Microphone UnitType of ElementElectret-condenser type.Sensitivity-58dBOutput Impedance2KQFEATURESWater ResistantEquipped with a revolving clip(8click positions)Equipped with an earphone jack.Equipped with a remote control function回路☒/CIRCUIT DIAGRAMφ2.5(SP)如g▣3.9K10K27KEPSW-1 SW-2 SW-3 LOCKSW33K L47PI子KENWOOD CORPORATIONMICφ3.5(MICMADE IN JAPAN
