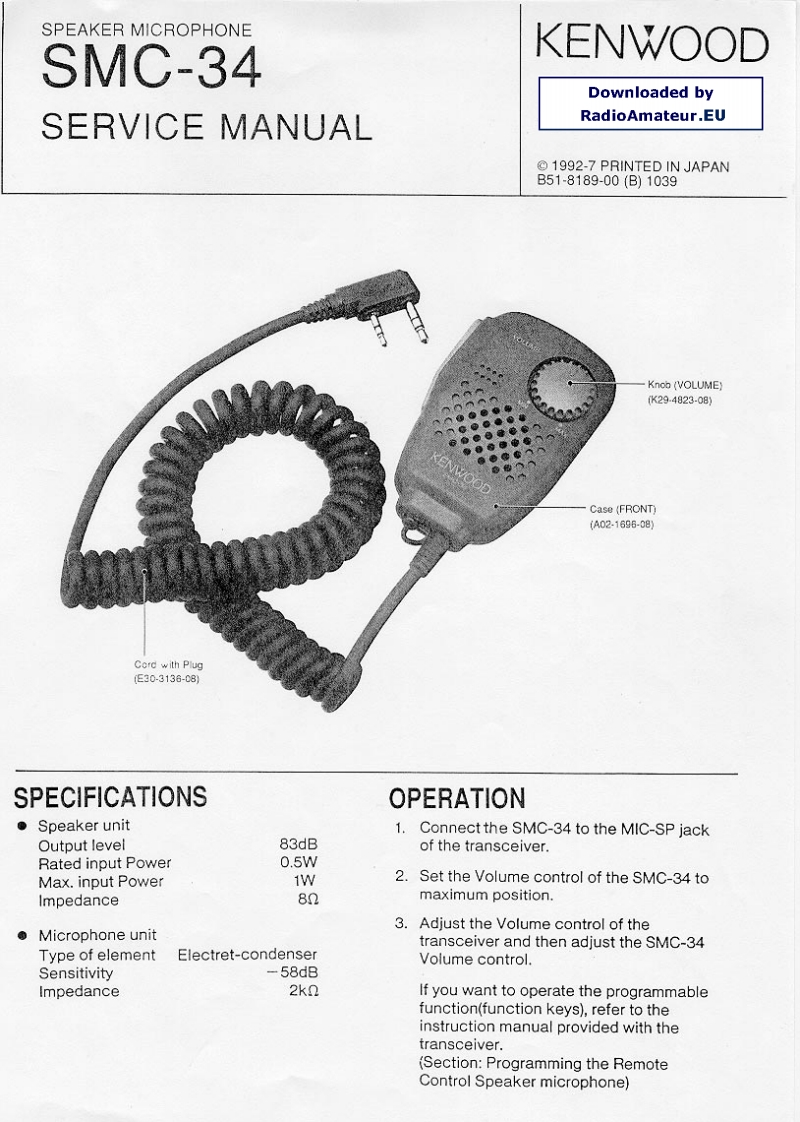

SPEAKER MICROPHONESMC-34KENWOODDownloaded bySERVICE MANUALRadioAmateur.EU1992-7 PRINTED IN JAPANB51-8189-00(B)1039一Knob (VOLUMEK294823-08)Case (FRONT(A02.1696-08)Cerd with PlugE30-3136-08SPECIFICATIONSOPERATION●Speaker unit1.Connect the SMC-34 to the MIC-SP jackOutput level83dBof the transceiver.Rated input Power0.5wMax.input Power1W2.Set the Volume control of the SMC-34 toImpedance82maximum position.3.Adjust the Volume control of theMicrophone unittransceiver and then adjust the SMC-34Type of elementElectret-condenserVolume control.Sensitivity-58dBImpedance2k2If you want to operate the programmablefunction(function keys),refer to theinstruction manual provided with thetransceiver.(Section:Programming the RemoteControl Speaker microphone)
