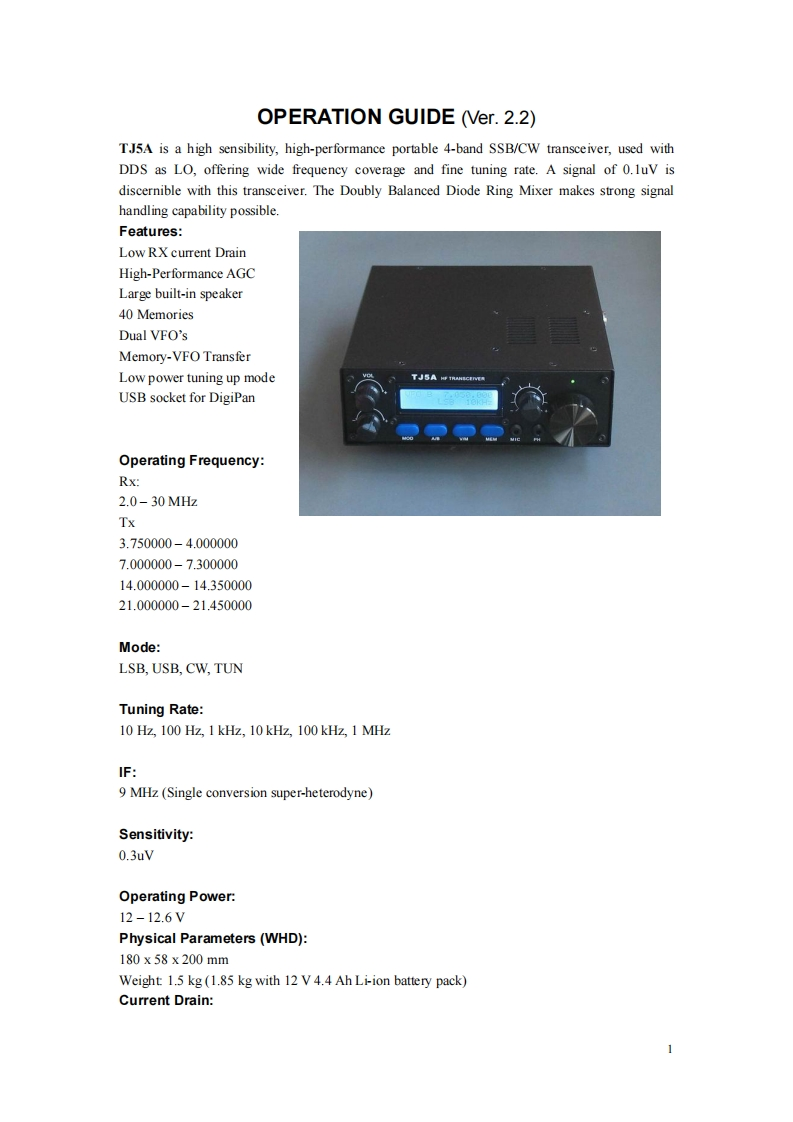

OPERATION GUIDE (Ver.2.2)TJ5A is a high sensibility,high-performance portable 4-band SSB/CW transceiver,used withDDS as LO,offering wide frequency coverage and fine tuning rate.A signal of 0.luV isdiscernible with this transceiver.The Doubly Balanced Diode Ring Mixer makes strong signalhandling capability possible.Features:Low RX current DrainHigh-Performance AGCLarge built-in speaker40 MemoriesDual VFO'sMemory-VFO TransferLow power tuning up modeUSB socket for DigiPanOperating Frequency:Rx:2.0-30MHzTx3.750000-4.0000007.000000-7.30000014.000000-14.35000021.000000-21.450000Mode:LSB,USB,CW,TUNTuning Rate:10 Hz.100 Hz.1 kHz.10 kHz.100 kHz.1 MHzIF:9 MHz(Single conversion super-heterodyne)Sensitivity:0.3uVOperating Power:12-12.6VPhysical Parameters (WHD):180x58x200mmWeight 1.5 kg(1.85 kg with 12 V4.4 Ah Li-ion battery pack)Current Drain:
