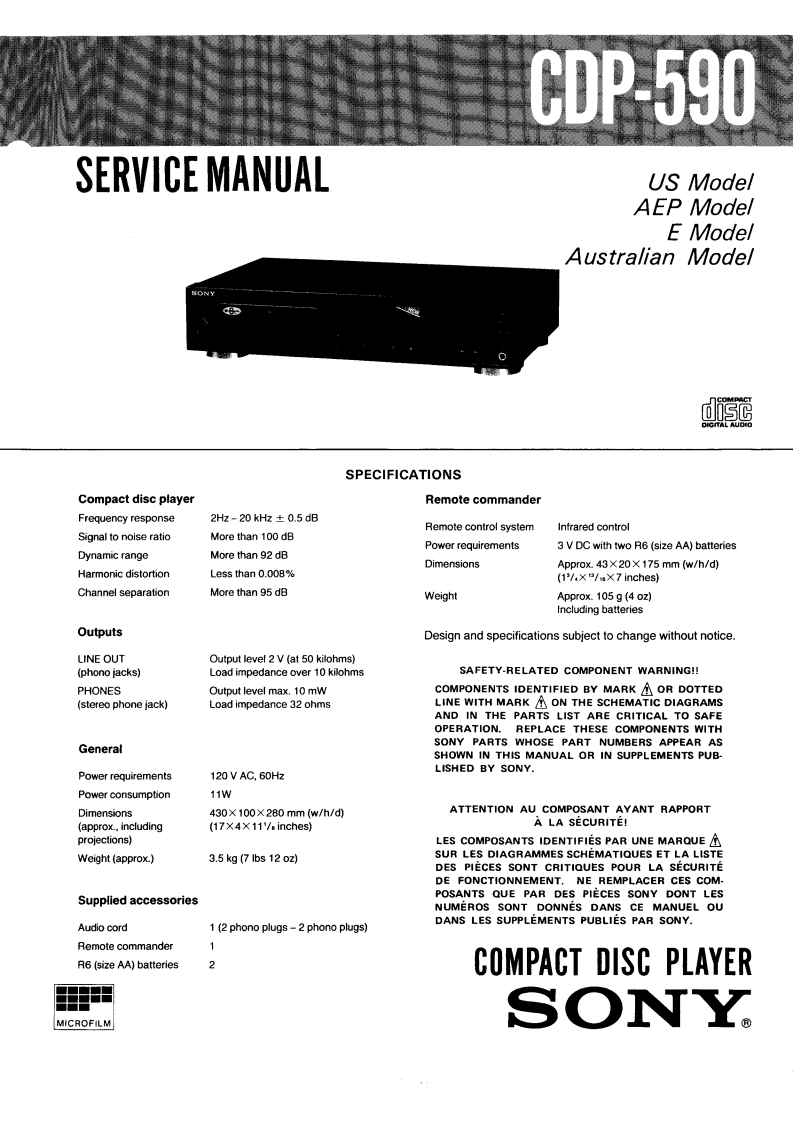

CDP-590SERVICE MANUALUS ModelAEP ModelE ModelAustralian ModelSPECIFICATIONSCompact disc playerRemote commanderFrequency response2Hz-20kHz±0.5dBRemote control systemInfrared controlSignal to noise ratioMore than 100 dBPower requirements3 V DC with two R6 (size AA)batteriesDynamic rangeMore than 92 dBDimensionsApprox.43×20×175mm(w/h/d)Harmonic distortionLess than 0.008%(1'/.×a/wX7 nches)Channel separationMore than 95 dBWeightApprox.105 g (4 oz)Including batteriesOutputsDesign and specifications subject to change without notice.LINE OUTOutput level 2 V (at 50 kilohms)(phono jacks)Load impedance over 10 kilohmsSAFETY-RELATED COMPONENT WARNING!!PHONESOutput level max.10 mWCOMPONENTS IDENTIFIED BY MARK OR DOTTED(stereo phone jack)Load impedance 32 ohmsLINE WITH MARKON THE SCHEMATIC DIAGRAMSAND IN THE PARTS LIST ARE CRITICAL TO SAFEOPERATION.REPLACE THESE COMPONENTS WITHGeneralSONY PARTS WHOSE PART NUMBERS APPEAR ASSHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-LISHED BY SONY.Power requirements120 V AC,60HzPower consumption11WDimensions430×100×280mm(w/h/d)ATTENTION AU COMPOSANT AYANT RAPPORT(approx..including(17×4×11'/.inches)A LA SECURITEIprojections)LES COMPOSANTS IDENTIFIES PAR UNE MARQUEWeight (approx.)3.5 kg (7 Ibs 12 oz)SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTEDES PIECES SONT CRITIQUES POUR LA SECURITEDE FONCTIONNEMENT.NE REMPLACER CES COM-Supplied accessoriesPOSANTS QUE PAR DES PIECES SONY DONT LESNUMEROS SONT DONNES DANS CE MANUEL OUDANS LES SUPPLEMENTS PUBLIES PAR SONY.Audio cord1 (2 phono plugs-2 phono plugs)Remote commanderR6(size AA)batteriesCOMPACT DISC PLAYERMICROFILMSONY
