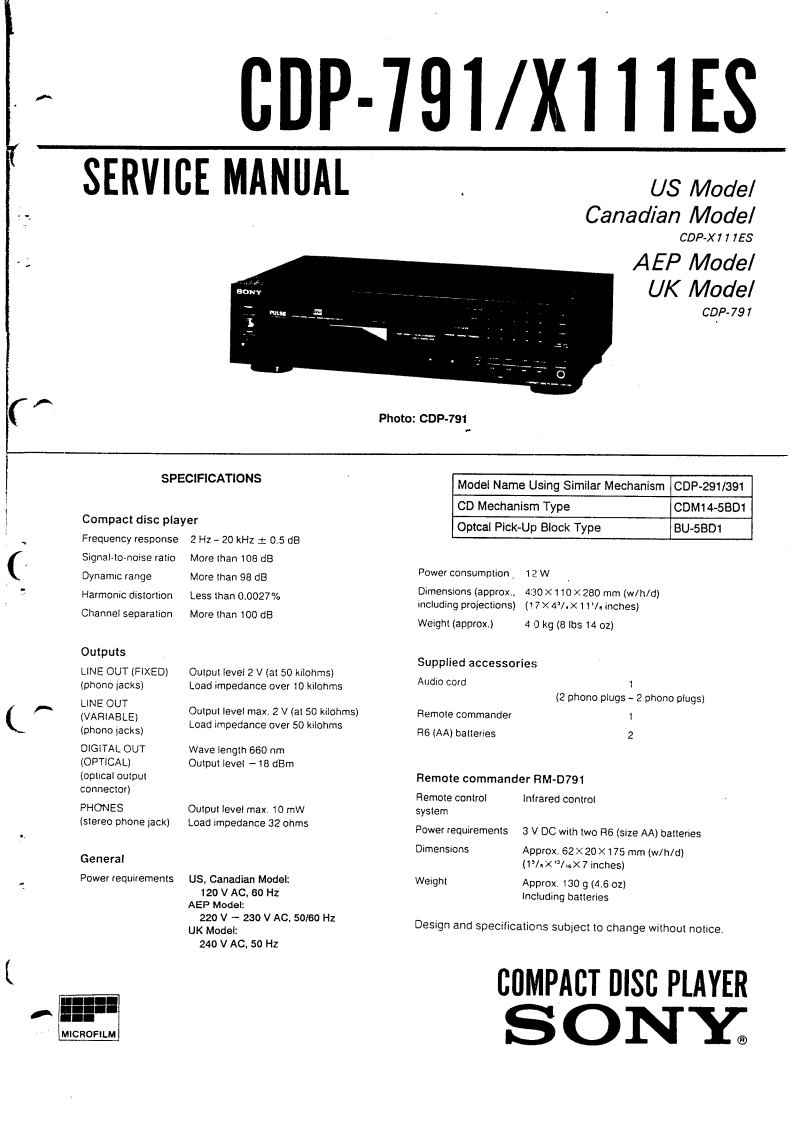

CDP-791/X111ESSERVICE MANUALUS ModelCanadian ModelCDP-X111ESAEP ModelUK ModelCDP-791Photo:CDP-791SPECIFICATIONSModel Name Using Similar Mechanism CDP-291/391CD Mechanism TypeCDM14-5BD1Compact disc playerOptcal Pick-Up Block TypeBU-5BD1Frequency response 2 Hz -20 kHz+0.5 dBSignal-to-noise ratioMore than 108 dBDynamic rangeMore than 98 dBPower consumption.12WHarmonic distortionLess than 0.0027%Dimensions(approx.430×110×2B0mm(w/h/d)Channel separationincluding projections)(17×43/,×11/,inches)More than 100 dBWeight (approx.)40 kg (8 Ibs 14 oz)OutputsLINE OUT (FIXED)Output level 2 V(at 50 kilohms)Supplied accessories(phono jacks)Load impedance over 10 kilohmsAudio cordLINE OUT(2 phono plugs-2 phono plugs)VARIABLE】Output level max.2 V (at 50 kilohms)Remote commander(phono jacks)Load impedance over 50 kilohmsR6 (AA)batteriesDIGITAL OUTWave length 660 nm(OPTICAL)Output level -18 dBm(optical outputRemote commander RM-D791connector)Remote controlPHONESInfrared controlOutput level max.10 mWsystem(stereo phone jack)Load impedance 32 ohmsPower requirements3 V DC with two R6 (size AA)batteriesDimensionsGeneralApprox.62×20×175mmw/h/d)(1/x/X7 inches)Power requirementsUS,Canadian Model:WeightAppr0x.130g(4.60z)120 VAC,60 HzAEP Model:Including batteries220V-230VAC,5060HzUK Model:Design and specifications subject to change without notice240 V AC,50 HzCOMPACT DISC PLAYERMICROFILMSONY
