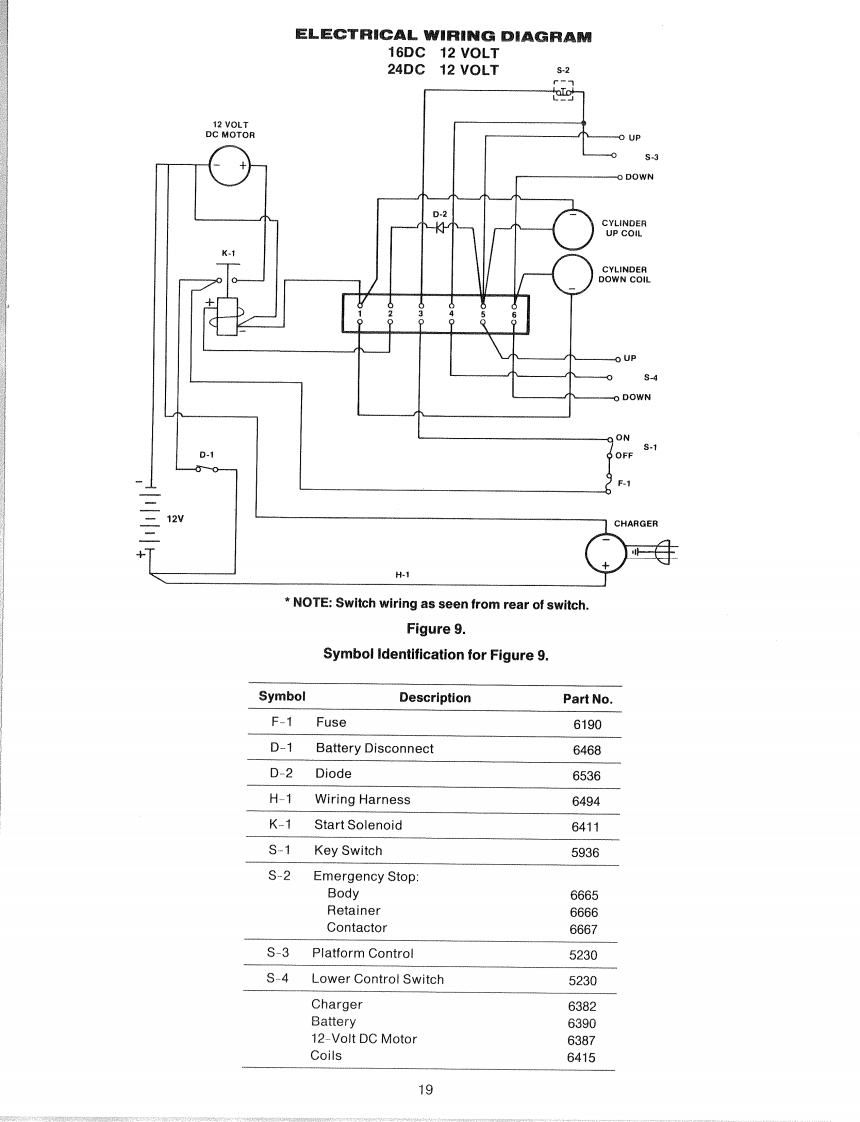

ELECTRICAL WIRING DIAGRAM16DC 12 VOLT24DC 12 VOLT8-212 VOLTDC MOTOR-o UP0S3O DOWND-2CYLINDERUP COILs-4-o DOWNON8-1D-1OFF9F.112VCHARGERH-1NOTE:Switch wiring as seen from rear of switch.Figure 9.Symbol Identification for Figure 9.SymbolDescriptionPart No.F-1Fuse6190D-1Battery Disconnect6468D-2Diode6536H-1Wiring Harness6494K-1Start Solenoid6411S-1Key Switch5936S-2Emergency Stop:Body6665Retainer6666Contactor6667S-3Platform Control5230S-4 Lower Control Switch5230Charger6382Battery639012-Volt DC Motor6387Coils641519
