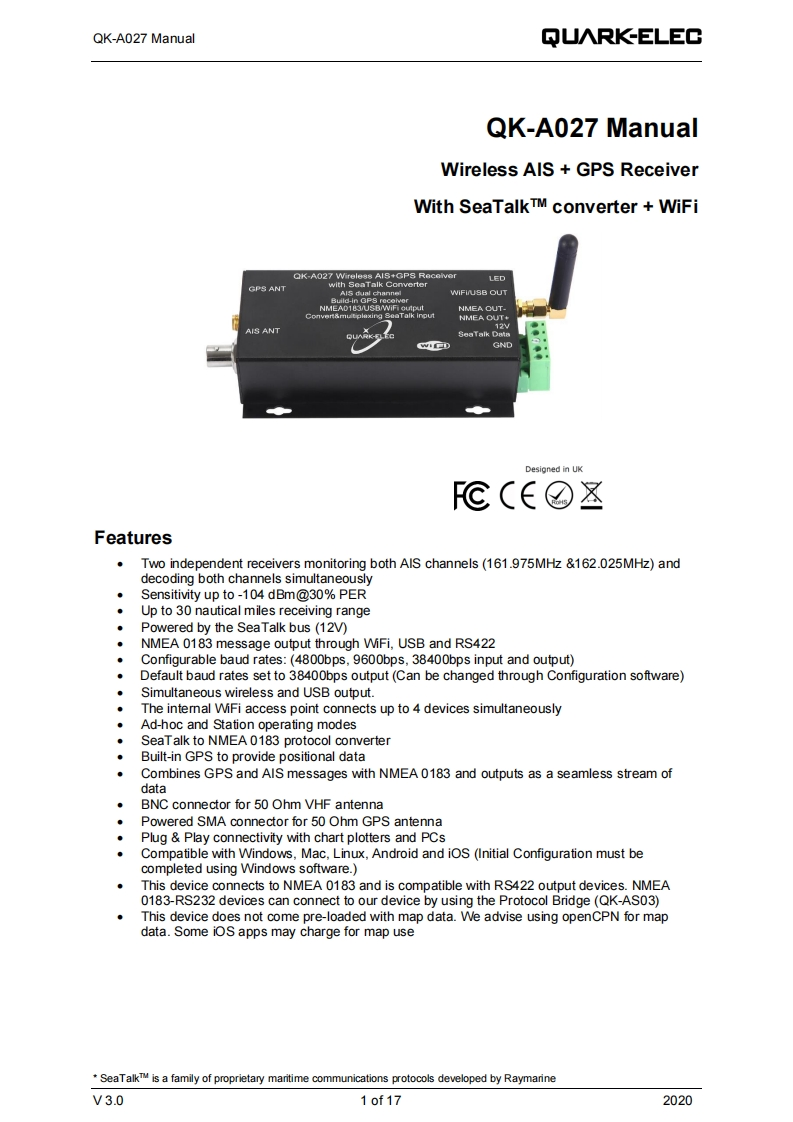

QK-A027 ManualQUARK-ELECQK-A027 ManualWireless AlS+GPS ReceiverWith SeaTalkTM converter WiFiQK-A027 Wireless AlS+GPS RecoiverLEDGPS ANTwith SoaTalk ConverterBulld-in OPSWIFI/USB OUTNMEA OUT.NMEA OUT+AIS ANTwIGNDDesigned in UKF©(E@©☒FeaturesTwo independent receivers monitoring both AlS channels(161.975MHz &162.025MHz)anddecoding both channels simultaneouslySensitivity up to-104 dBm@30%PERUp to 30 nautical miles receiving rangePowered by the SeaTalk bus (12V)NMEA 0183 message output through WiFi,USB and RS422Configurable baud rates:(4800bps,9600bps,38400bps input and output)Default baud rates set to 38400bps output(Can be changed through Configuration software)Simultaneous wireless and USB output.The internal WiFi access point connects up to 4 devices simultaneouslyAd-hoc and Station operating modesSeaTalk to NMEA 0183 protocol converterBuilt-in GPS to provide positional dataCombines GPS and AIS messages with NMEA 0183 and outputs as a seamless stream ofdataBNC connector for 50 Ohm VHF antennaPowered SMA connector for 50 Ohm GPS antennaPlug Play connectivity with chart plotters and PCsCompatible with Windows,Mac,Linux,Android and iOS(Initial Configuration must becompleted using Windows software.)This device connects to NMEA 0183 and is compatible with RS422 output devices.NMEA0183-RS232 devices can connect to our device by using the Protocol Bridge(QK-AS03)This device does not come pre-loaded with map data.We advise using openCPN for mapdata.Some iOS apps may charge for map use.SeaTalkTM is a family of proprietary maritime communications protocols developed by RaymarineV3.010f172020
