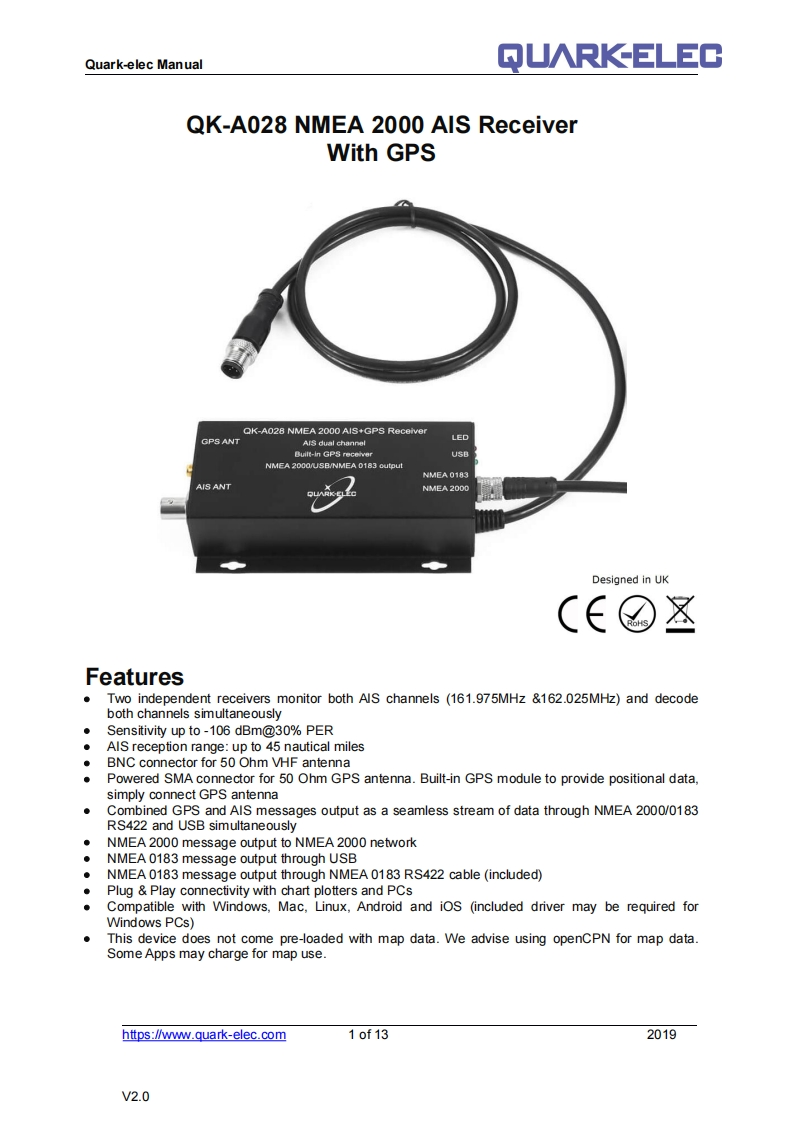

Quark-elec Manual▣JARKELECQK-A028 NMEA 2000 AIS ReceiverWith GPSQK-A028 NMEA 2000 AlS+GPS ReceiverGPS ANTAIS dual channelLEDBullt-in GPS recniverUSBNMEA 2000/USB/NMEA 0183 outputNMEA 0183AIS ANTNMEA 2000Designed in UK(∈©FeaturesTwo independent receivers monitor both AlS channels (161.975MHz &162.025MHz)and decodeboth channels simultaneouslySensitivity up to-106 dBm@30%PERAlS reception range:up to 45 nautical milesBNC connector for 50 Ohm VHF antennaPowered SMA connector for 50 Ohm GPS antenna.Built-in GPS module to provide positional data,simply connect GPS antennaCombined GPS and AIlS messages output as a seamless stream of data through NMEA 2000/0183RS422 and USB simultaneouslyNMEA 2000 message output to NMEA 2000 networkNMEA 0183 message output through USBNMEA 0183 message output through NMEA 0183 RS422 cable (included)Plug Play connectivity with chart plotters and PCsCompatible with Windows,Mac,Linux,Android and iOS (included driver may be required forWindows PCs)This device does not come pre-loaded with map data.We advise using openCPN for map data.Some Apps may charge for map use.https://www.quark-elec.com10f132019V2.0
