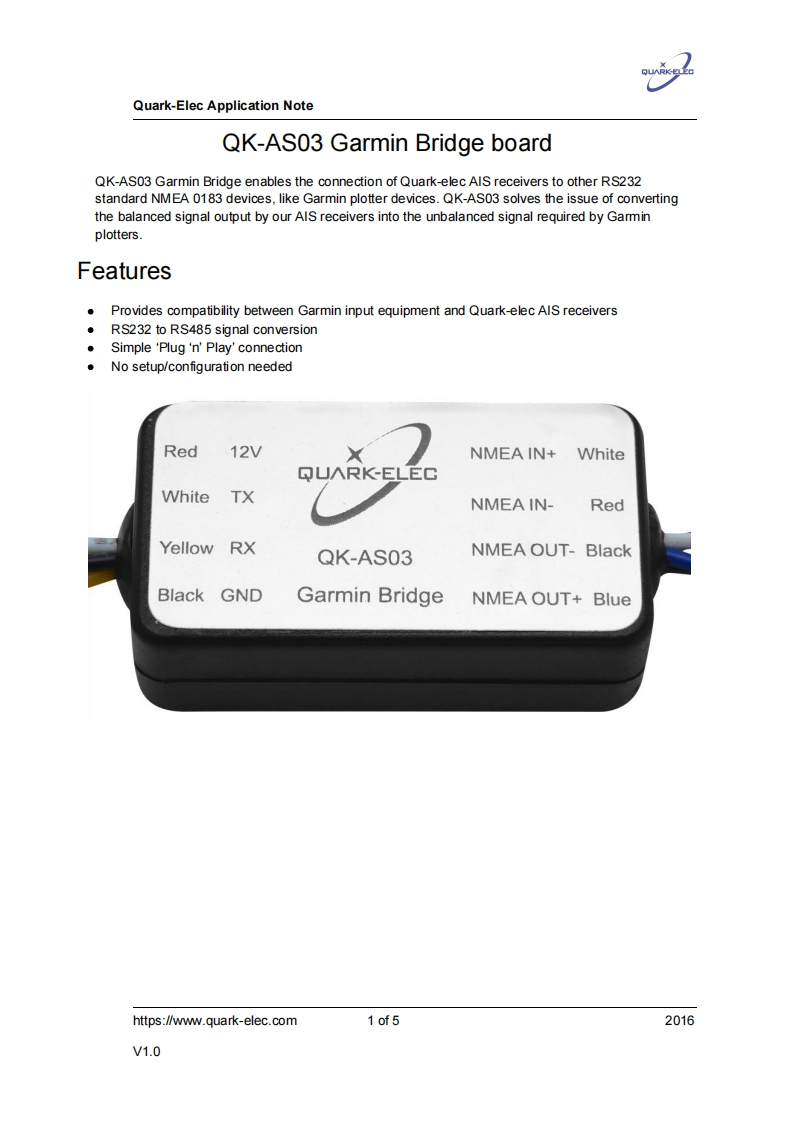

Quark-Elec Application NoteQK-AS03 Garmin Bridge boardQK-AS03 Garmin Bridge enables the connection of Quark-elec AlS receivers to other RS232standard NMEA 0183 devices,like Garmin plotter devices.QK-AS03 solves the issue of convertingthe balanced signal output by our AlS receivers into the unbalanced signal required by Garminplotters.FeaturesProvides compatibility between Garmin input equipment and Quark-elec AlS receiversRS232 to RS485 signal conversionSimple 'Plug'n'Play'connectionNo setup/configuration neededRed12VNMEA IN+WhiteQUARK-ELECWhiteTXNMEA IN-RedYellow RXQK-AS03NMEA OUT-BlackBlack GNDGarmin BridgeNMEA OUT+Bluehttps://www.quark-elec.com1 of 52016V1.0
