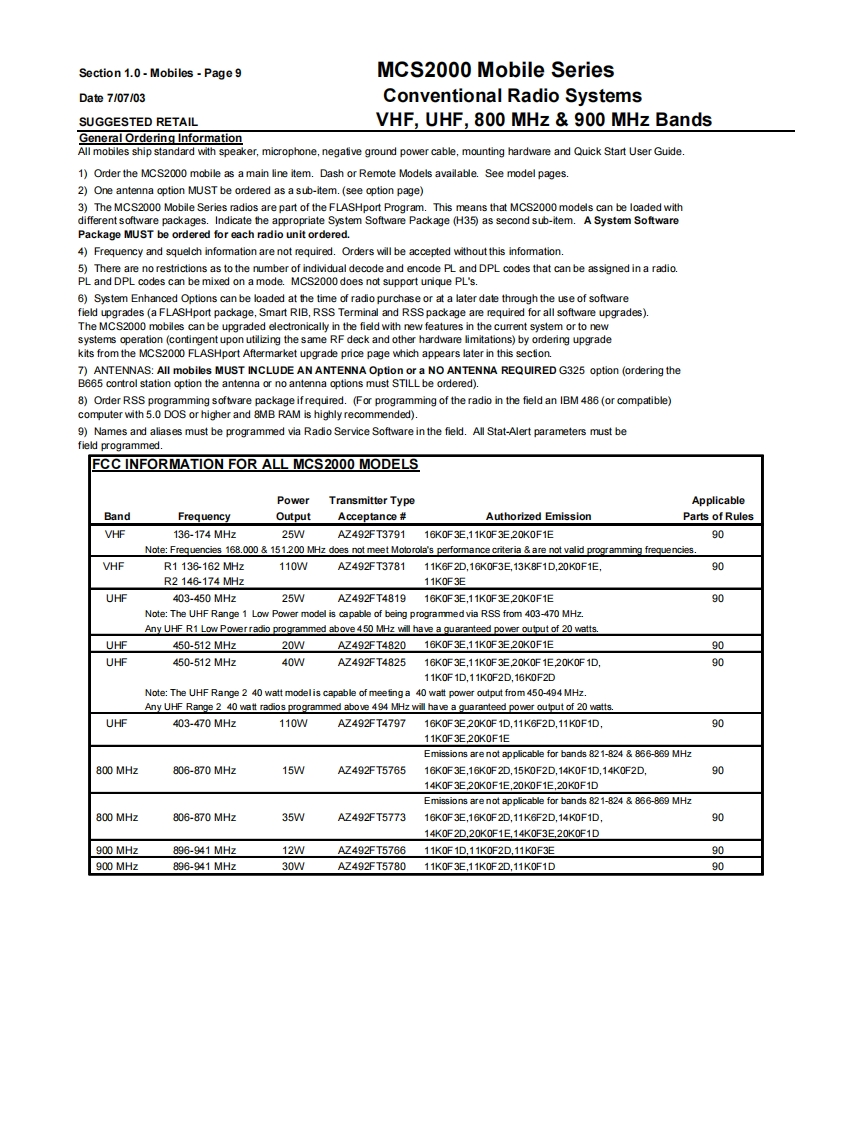

Section 1.0-Mobiles-Page9MCS2000 Mobile SeriesDate7/07/03Conventional Radio SystemsSUGGESTED RETAILVHF,UHF,800 MHz 900 MHz BandsGeneral Ordering InformationAll mobiles ship standard with speaker,microphone,negative ground power cable,mounting hardware and Quick Start User Guide.1)Order the MCS2000 mobile as a main line item.Dash or Remote Models available.See model pages.2)One antenna option MUST be ordered as a sub-item.(see option page)3)The MCS2000 Mobile Series radios are part of the FLASHport Program.This means that MCS2000 models can be loaded withdifferent software packages.Indicate the appropriate System Software Package (H35)as second sub-item.A System SoftwarePackage MUST be ordered for each radio unit ordered.4)Frequency and squelch information are not required.Orders will be accepted without this information.5)There are no restrictions as to the number of individual decode and encode PL and DPL codes that can be assigned in a radio.PL and DPL codes can be mixed on a mode.MCS2000 does not support unique PL's.6)System Enhanced Options can be loaded at the time of radio purchase or at a later date through the use of softwarefield upgrades (a FLASHport package,Smart RIB,RSS Terminal and RSS package are required for all software upgrades).The MCS2000 mobiles can be upgraded electronically in the field with new features in the current system or to newsystems operation(contingent upon utilizing the same RF deck and other hardware limitations)by ordering upgradekits from the MCS2000 FLASHport Aftermarket upgrade price page which appears later in this section.7)ANTENNAS:All mobiles MUST INCLUDE AN ANTENNA Option or a NO ANTENNA REQUIRED G325 option (ordering theB665 control station option the antenna or no antenna options must STILL be ordered).8)Order RSS programming software package ifrequired.(For programming of the radio in the field an IBM 486(or compatible)computer with 5.0 DOS or higher and 8MB RAM is highly recommended).9)Names and aliases must be programmed via Radio Service Software in the field.All Stat-Alert parameters must befield programmed.FCC INFORMATION FOR ALL MCS2000 MODELSPowerTransmitter TypeApplicableBandFrequencyOutputAcceptanceAuthorized EmissionParts of RulesVHF136-174MHz25WAZ492FT379116K0F3E,11K0F3E20K0F1E90Note:Frequencies 168.000 151.200 MHz does not meet Motprola's performance criteria are not valid programming frequenciesVHFR1136-162MHz110WAZ492FT378111K6F2D,16K0F3E,13K8F1D,20K0F1E,90R2146174MHz11KOF3EUHF403-450MHz25WAZ492FT481916K0F3E,11K0F3E20K0F1E90Note:The UHF Range 1 Low Power model is capable of being programmed via RSS from 403-470 MHz.Any UHF R1 Low Power radio programmed above 450 MHz will have a guaranteed power output of 20 watts.UHF450-512MHz20WAZ492FT482016K0F3E,11K0F3E20K0F1E90UHF450-512MHz40WAZ492FT482516K0F3E,11K0F3E20K0F1E20K0F1D.9011K0F1D,11K0F2D,16K0F2DNote:The UHF Range 2 40 watt modelis capable of meefing a 40 watt power output from 450-494 MHz.Any UHF Range 2 40 watt radios programmed above 4
