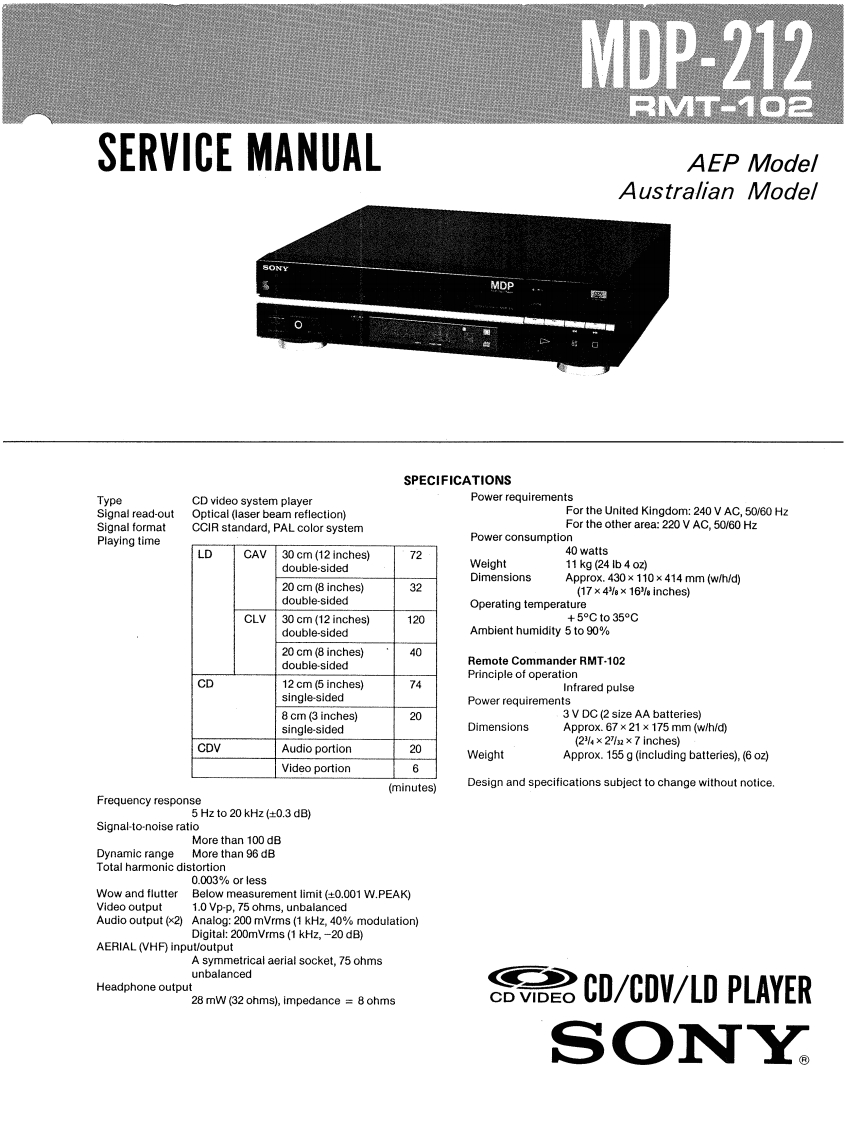

MDP-212SERVICE MANUALAEP ModelAustralian ModelMDP■SPECIFICATIONSTypeCD video system playerPower requirementsSignal read-outOptical (laser beam reflection)For the United Kingdom:240 V AC,50/60 HzSignal formatCCIR standard,PAL color systemFor the other area:220 V AC,50/60 HzPlaying timePower consumptionLDCAV30 cm(12 inches)7240 wattsdouble-sidedWeight11 kg (24 Ib 4 oz)Dimensions20 cm(8 inches)32Approx.430×110×414mmwh/d)(17×4/e×16/a inchesdouble-sidedOperating temperatureCLV30 cm(12 inches)120+5°Cto35°Cdouble-sidedAmbient humidity 5 to 90%20 cm (8 inches)40double-sidedRemote Commander RMT-102Principle of operationCD12 cm (5 inches)74Infrared pulsesingle-sidedPower requirements8 cm (3 inches)203 V DC(2 size AA batteries)single-sidedDimensionsApprox..67×21×175mm(wlh/d(2×2/a×7 inches)CDVAudio portion20WeightApprox.155 g (including batteries),(6 oz)Video portion6(minutes)Design and specifications subject to change without noticeFrequency responseHzto20kHz(±0.3dB)Signal-to-noise ratioMore than 100 dBDynamic rangeMore than 96 dBTotal harmonic distortion0.003%or lessWow and flutterBelow measurement limit (+0.001 W.PEAK)Video output1.0 Vp-p,75 ohms,unbalancedAudio output (x2)Analog:200 mVrms(1 kHz,40%modulation)Digital:200mVrms (1 kHz,-20 dB)AERIAL (VHF)input/outputA symmetrical aerial socket,75 ohmsunbalancedHeadphone output28 mW (32 ohms),impedance 8 ohmsCD/CDV/LD PLAYERSONY
