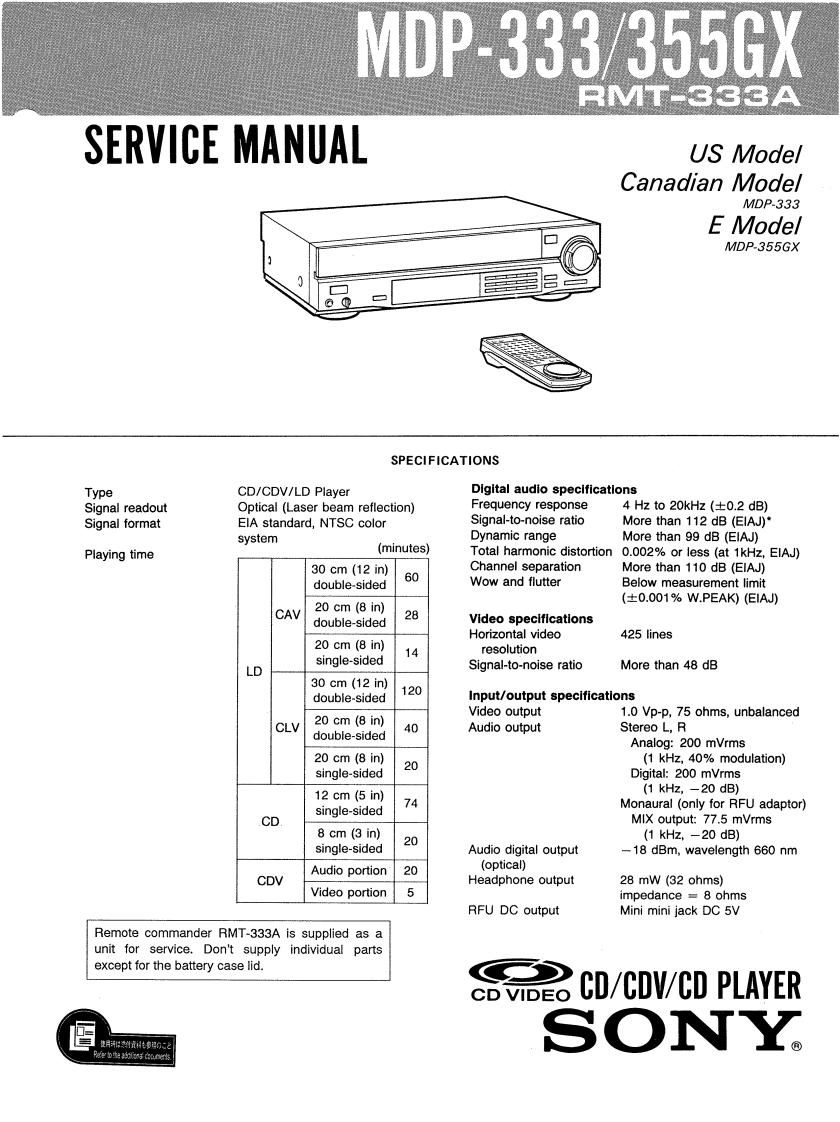

MDP-333/355GXSERVICE MANUALUS ModelCanadian ModelMDP-333E ModelMDP-355GXSPECIFICATIONSTypeCD/CDV/LD PlayerDigital audio specificatlonsSignal readoutOptical (Laser beam reflection)Frequency response4Hzto20kHz(±0.2dB)Signal formatEIA standard,NTSC colorSignal-to-noise ratioMore than 112 dB (EIAJ)systemDynamic rangeMore than 99 dB (EIAJ)Playing time(minutes)Total harmonic distortion 0.002%or less (at 1kHz,EIAJ)30cm(12in)Channel separationMore than 110 dB (EIAJ)60double-sidedWow and flutterBelow measurement limit(0.001%W.PEAK)(EIAJ)CAV20 cm (8 in)double-sided28Video specificationsHorizontal video425 lines20 cm (8 in)single-sided14resolutionLDSignal-to-noise ratioMore than 48 dB30cm(12in)120double-sidedInput/output specificationsVideo output1.0 Vp-p,75 ohms,unbalancedCLV20 cm (8 in)40Audio outputdouble-sidedStereo L,RAnalog:200 mVrms20 cm (8 in)20(1 kHz,40%modulation)single-sidedDigital:200 mVrms12 cm (5 in)(1 kHz,-20 dB)Monaural (only for RFU adaptor)single-sided74CDMIX output:77.5 mVrms8 cm (3 in)20(1 kHz,-20 dB)single-sidedAudio digital output-18 dBm,wavelength 660 nmAudio portion20(optical)CDVHeadphone output28 mW(32 ohms)Video portionimpedance =8 ohmsRFU DC outputMinimini jack DC 5VRemote commander RMT-333A is supplied as aunit for service.Don't supply individual partsexcept for the battery case lid.CD/CDVCD PLAYERSONY
