Sony_MDP-405_MDP-405GX_Service.Manual维修手册

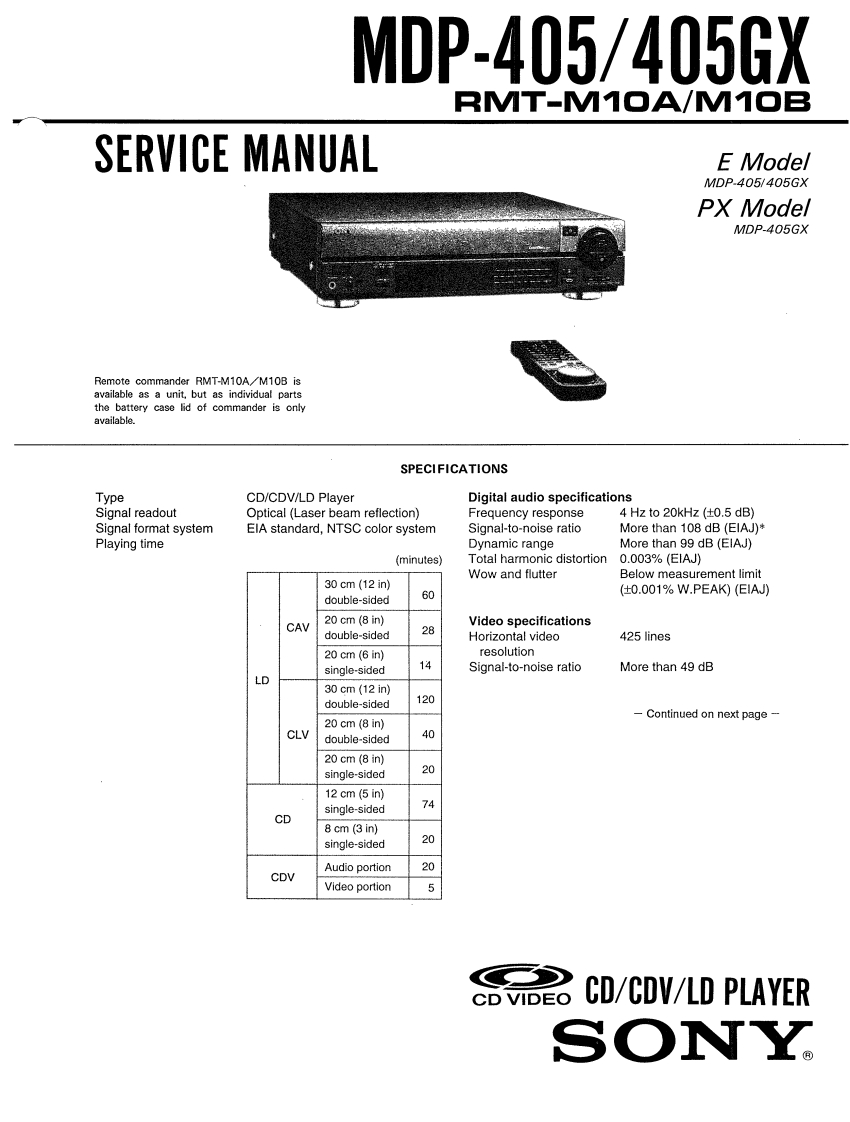

MDP-405/405GXRMT-M10A/M10BSERVICE MANUALEModelMDP.405/405GXPX ModelMDP-405GXRemote commander RMT-M10A/M10B isavailable as a unit,but as individual partsthe battery case lid of commander is onlyavailable.SPECIFICATIONSTypeCD/CDV/LD PlayerDigital audio specificationsSignal readoutOptical (Laser beam reflection)Frequency response4Hzto20kHz(±0.5dB)Signal format systemEIA standard,NTSC color systemSignal-to-noise ratioMore than 108 dB (EIAJ)*Playing timeDynamic rangeMore than 99 dB(EIAJ)(minutes)Total harmonic distortion0.003%(E1AJ)Wow and flutterBelow measurement limit30cm(12in)60(0.001%W.PEAK)(EIAJ)double-sidedCAV20 cm (8 in)Video specificationsdouble-sided28Horizontal video425 lines20 cm (6 in)resolutionsingle-sidedSignal-to-noise ratioMore than 49 dBLD30 cm (12 in)double-sided120Continued on next page20 cm (8 in)CLVdouble-sided⊙20 cm (8 in)single-sided2012 cm (5 in)single-sided74CD8 cm (3 in)single-sided20Audio portion20CDVVideo portionCD VIDEOCD/CDV/LD PLAYERSONY
