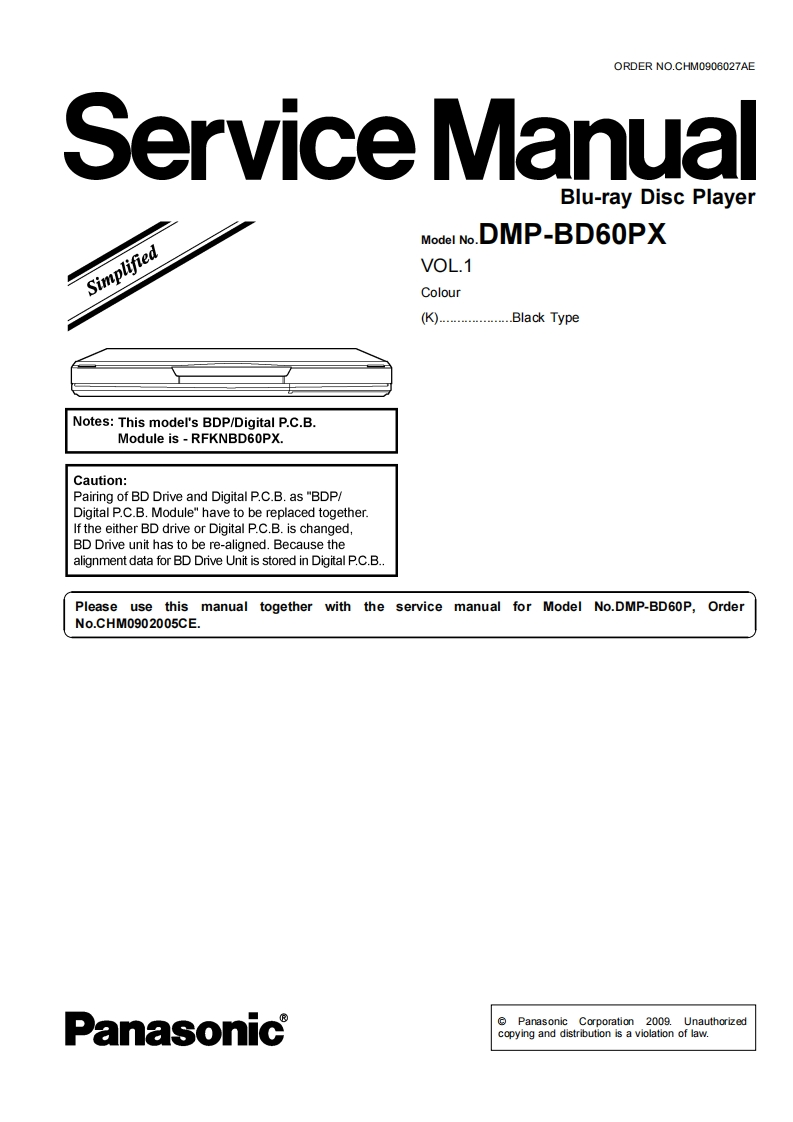

ORDER NO.CHM0906027AEService ManualBlu-ray Disc PlayerModeI No.DMP-BD60PXSimplifiedVOL.1Colour(KW）..Black TypeNotes:This model's BDP/Digital P.C.B.Module is -RFKNBD60PX.Caution:Pairing of BD Drive and Digital P.C.B.as "BDP/Digital P.C.B.Module"have to be replaced together.If the either BD drive or Digital P.C.B.is changed,BD Drive unit has to be re-aligned.Because thealignment data for BD Drive Unit is stored in Digital P.C.B..Please use this manual together with the service manual for Model No.DMP-BD60P,OrderNo.CHM0902005CE.PanasonicPanasonic Corporation 2009.Unauthorizedcopying and distribution is a violation of law.
