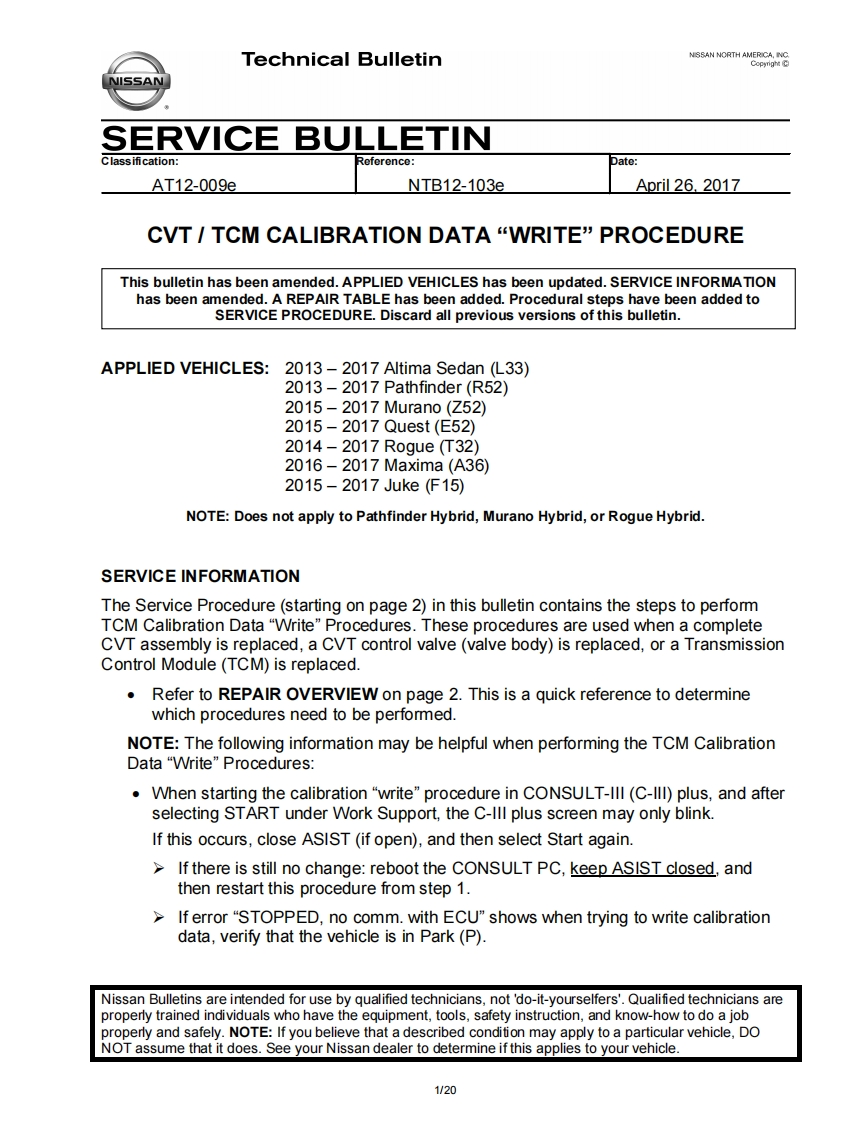

Technical BulletinIISSANSERVICE BULLETINClassification:Reference:Date:AT12-009eNTB12-.103eApril 26.2017CVT TCM CALIBRATION DATA“VRITE”PROCEDUREThis bulletin has been amended.APPLIED VEHICLES has been updated.SERVICE INFORMATIONhas been amended.A REPAIR TABLE has been added.Procedural steps have been added toSERVICE PROCEDURE.Discard all previous versions of this bulletin.APPLIED VEHICLES:2013-2017 Altima Sedan (L33)2013-2017 Pathfinder(R52)2015-2017 Muran0(Z52)2015-2017 Quest(E52)2014-2017 Rogue(T32)2016-2017 Maxima(A36)2015-2017Juke(F15)NOTE:Does not apply to Pathfinder Hybrid,Murano Hybrid,or Rogue Hybrid.SERVICE INFORMATIONThe Service Procedure(starting on page 2)in this bulletin contains the steps to performTCM Calibration Data "Write"Procedures.These procedures are used when a completeCVT assembly is replaced,a CVT control valve (valve body)is replaced,or a TransmissionControl Module (TCM)is replaced.Refer to REPAIR OVERVIEW on page 2.This is a quick reference to determinewhich procedures need to be performed.NOTE:The following information may be helpful when performing the TCM CalibrationData“Vrite”Procedures:When starting the calibration "write"procedure in CONSULT-III (C-lII)plus,and afterselecting START under Work Support,the C-Ill plus screen may only blink.If this occurs,close ASIST(if open),and then select Start again.>If there is still no change:reboot the CONSULT PC,keep ASIST closed,andthen restart this procedure from step 1.>If error "STOPPED,no comm.with ECU"shows when trying to write calibrationdata,verify that the vehicle is in Park (P).Nissan Bulletins are intended for use by qualified technicians,not 'do-it-yourselfers'.Qualified technicians areproperly trained individuals who have the equipment,tools,safety instruction,and know-how to do a jobproperly and safely.NOTE:If you believe that a described condition may apply to a particular vehicle,DONOT assume that it does.See your Nissan dealer to determine if this applies to your vehicle.1/20
