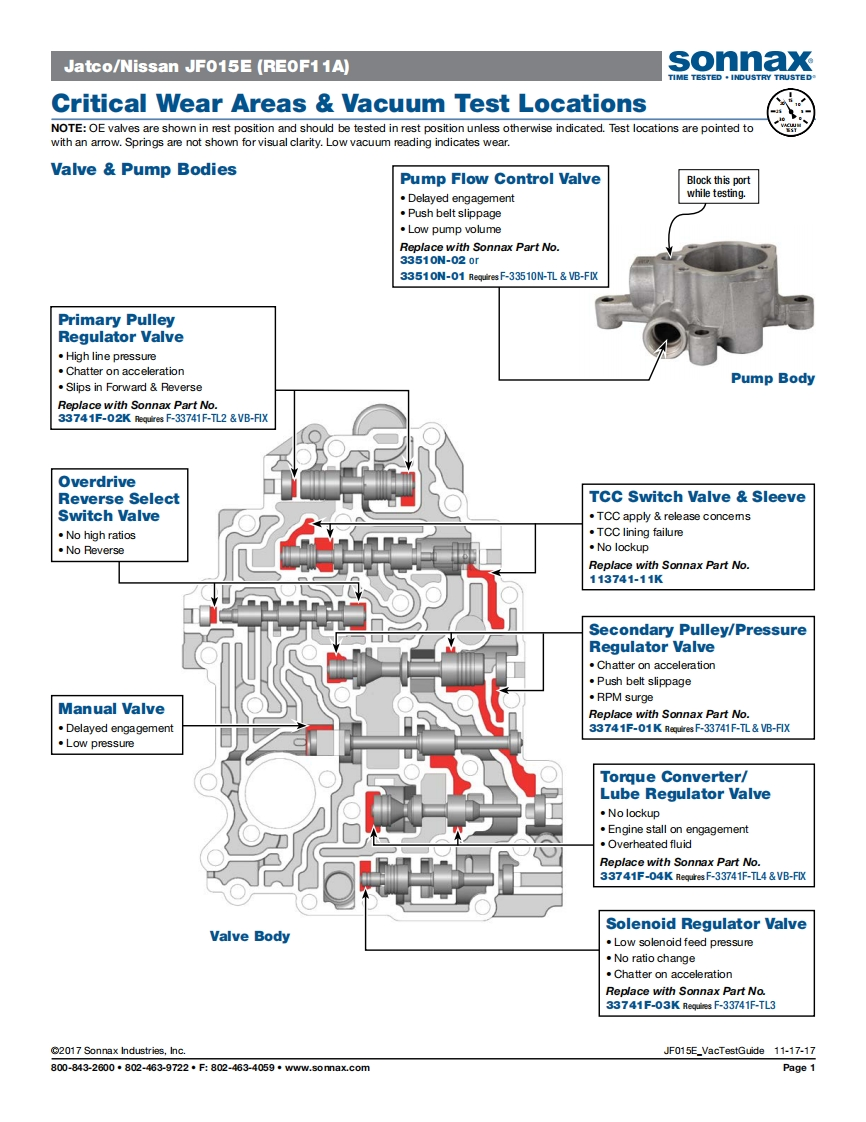

Jatco/Nissan JF015E (REOF11A)sonnaxTIME TESTED INDUSTRY TRUSTEDCritical Wear Areas Vacuum Test LocationsNOTE:OE valves are shown in rest position and should be tested in rest position unless otherwise indicated.Test locations are pointed towith an arrow.Springs are not shown for visual clarity.Low vacuum reading indicates wear.Valve Pump BodiesPump Flow Control ValveBlock this port·Delayed engagementwhile testing.Push belt slippageLow pump volumeReplace with Sonnax Part No.33510N-020r33510N-01 Reguires F-33510N-TL VB-FIXPrimary PulleyRegulator Valve·High line pressureChatter on accelerationSlips in Forward ReversePump BodyReplace with Sonnax Part No.33741F-02K Reguires F-33741F-TL2 &VB-FIXOverdriveReverse SelectTCC Switch Valve SleeveSwitch Valve.TCC apply release concems·No high ratios.TCC lining failure·No ReverseNo lockupReplace with Sonnax Part No.113741-11KSecondary Pulley/PressureRegulator Valve.Chatter on acceleration.Push belt slippage.RPM surgeManual ValveReplace with Sonnax Part No.Delayed engagement33741F-01K Reguires F-33741F-TL VB-FIX·Low pressureTorque Converter/Lube Regulator Valve.No lockup.Engine stall on engagement.Overheated fluidReplace with Sonnax Part No.33741F-04K Regures F-33741F-TL4 &VB-FIXSolenoid Regulator ValveValve BodyLow solenoid feed pressureNo ratio change.Chatter on accelerationReplace with Sonnax Part No.33741F-03K Reguies F-33741F-TL32017 Sonnax Industries,Inc.JF015E_VacTestGuide 11-17-17800-843-2600·802-463-9722◆F:802-463-4059·ww.50max.c0mPage 1
