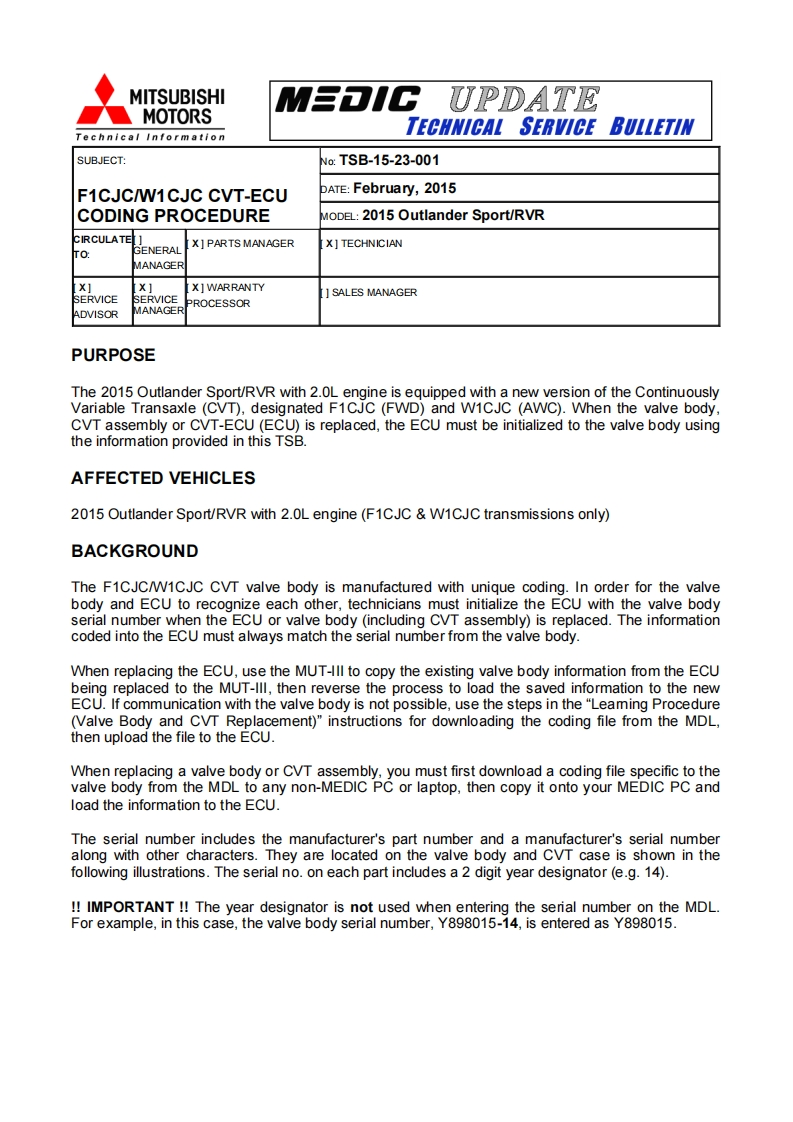

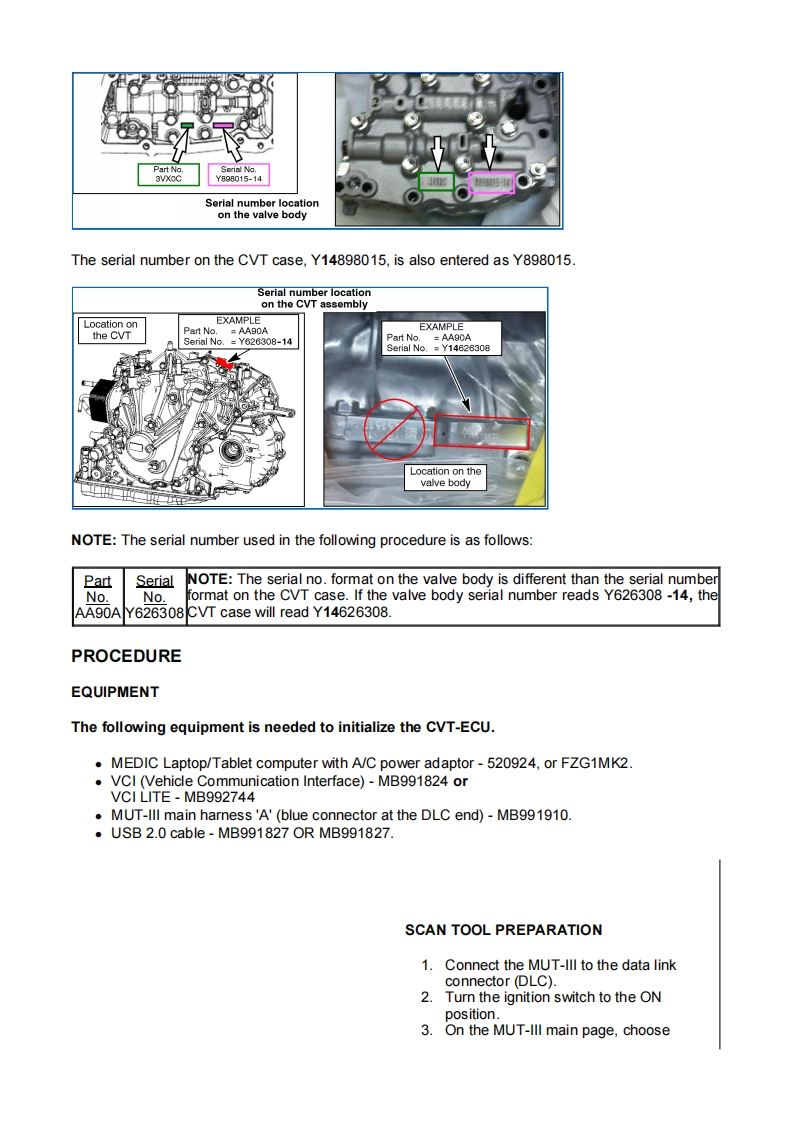

MITSUBISHIMΞ7GUPDATEMOTORSTECHNICAL SERVICE BULLETINTechnical InformationSUBJECT:Na:TSB-15-23-001F1CJC/W1CJC CVT-ECUDATE:February,2015CODING PROCEDUREMODEL:2015 Outlander Sport/RVRCIRCULATE 1TO:GENERALX]PARTS MANAGERX]TECHNICIANMANAGERX]X]X]WARRANTY]SALES MANAGERSERVICESERVICEROCESSORADVISORMANAGERPURPOSEThe 2015 Outlander Sport/RVR with 2.0L engine is equipped with a new version of the ContinuouslyVariable Transaxle (CVT),designated F1CJC (FWD)and W1CJC (AWC).When the valve bodyCVT assembly or CVT-ECU (ECU)is replaced,the ECU must be initialized to the valve body usingthe information provided in this TSB.AFFECTED VEHICLES2015 Outlander Sport/RVR with 2.0L engine(F1CJC W1CJC transmissions only)BACKGROUNDThe F1CJC/1CJC CVT valve body is manufactured with unique coding.In order for the valvebody and ECU to recognize each other,technicians must initialize the ECU with the valve bodyserial number when the ECU or valve body (including CVT assembly)is replaced.The informationcoded into the ECU must always match the serial number from the valve body.When replacing the ECU,use the MUT-III to copy the existing valve body information from the ECUbeing replaced to the MUT-III,then reverse the process to load the saved information to the newECU.If communication with the valve body is not possible,use the steps in the "Leaming Procedure(Valve Body and CVT Replacement)"instructions for downloading the coding file from the MDL,then upload the file to the ECU.When replacing a valve body or CVT assembly,you must first download a coding file specific to thevalve body from the MDL to any non-MEDIC PC or laptop,then copy it onto your MEDIC PC andload the information to the ECU.The serial number includes the manufacturer's part number and a manufacturer's serial numberalong with other characters.They are located on the valve body and CVT case is shown in thefollowing illustrations.The serial no.on each part includes a 2 digit year designator (e.g.14).!IMPORTANT !The year designator is not used when entering the serial number on the MDL.For example,in this case,the valve body serial number,Y898015-14,is entered as Y898015.
