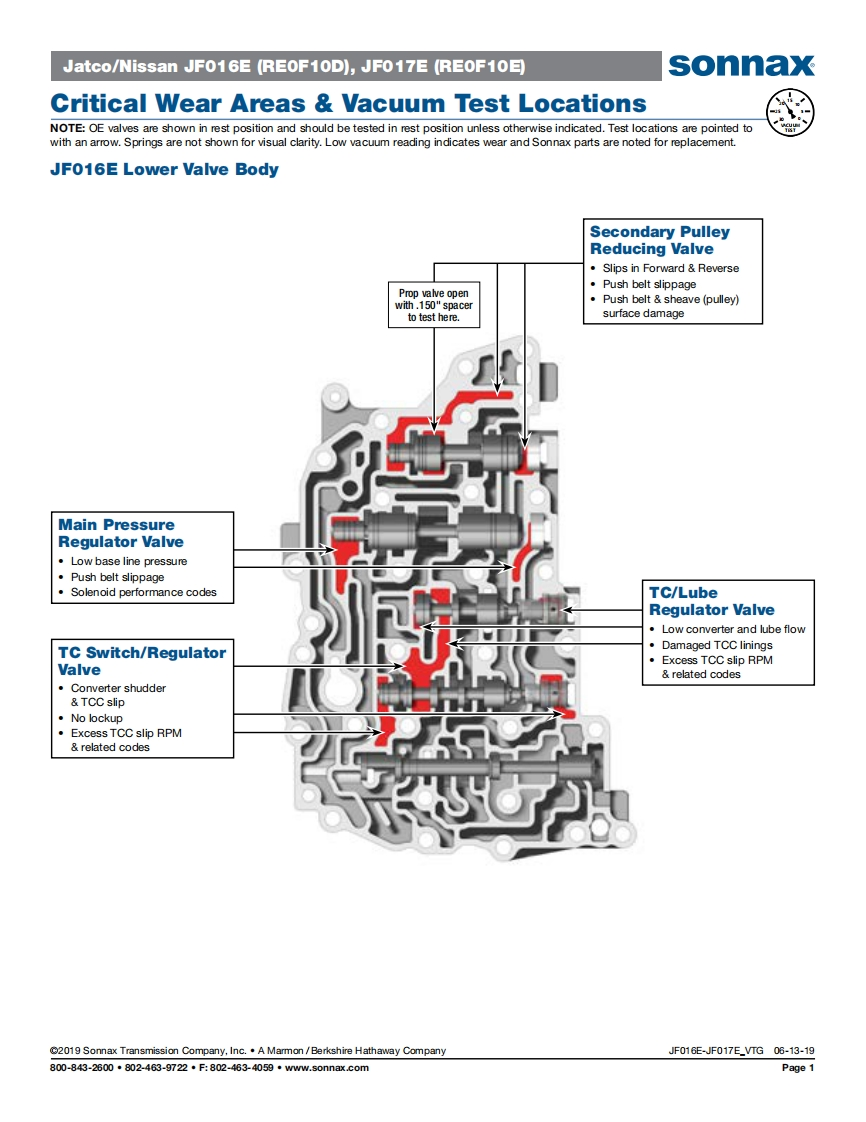

Jatco/Nissan JF016E (REOF10D),JF017E (REOF10E)sonnaxCritical Wear Areas Vacuum Test LocationsNOTE:OE valves are shown in rest position and should be tested in rest position unless otherwise indicated.Test locations are pointed towith an arrow.Springs are not shown for visual clarity.Low vacuum reading indicates wear and Sonnax parts are noted for replacement.JF016E Lower Valve BodySecondary PulleyReducing ValveSlips in Forward Reverse·Push belt slippageProp valve openwith .150"spacerPush belt sheave (pulley)to test here.surface damageMain PressureRegulator ValveLow base line pressure。Push belt slippageSolenoid performance codesTC/LubeRegulator ValveLow converter and lube flowTC Switch/Regulator·Damaged TCC linings·Excess TCC slip RPMValverelated codes。Converter shudderTCC slip·No lockup·Excess TCC slip RPMrelated codes2019 Sonnax Transmission Company,Inc..A Marmon /Berkshire Hathaway CompanyJF016E-JF017E_VTG06-13-19800-843-2600·802-463-9722F:802-463-4059 www.50nnax.c0mPage 1
