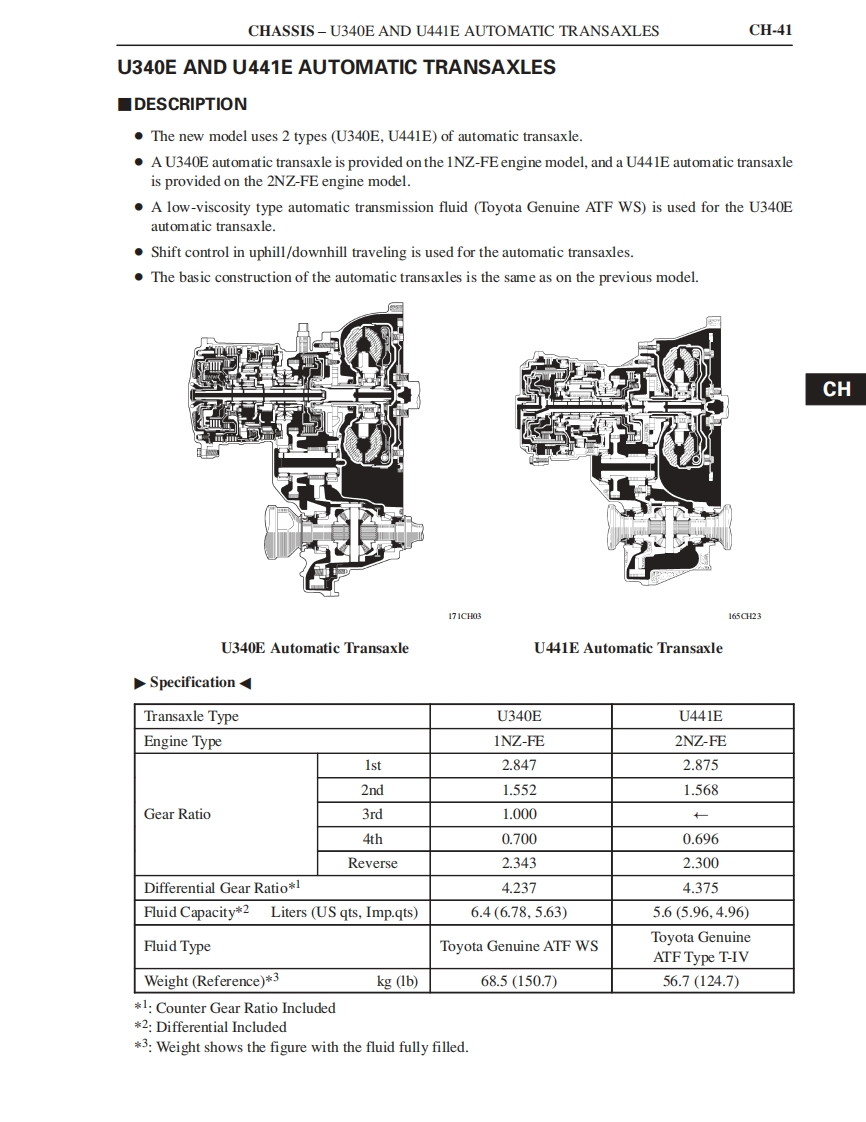

CHASSIS-U340E AND U441E AUTOMATIC TRANSAXLESCH-41U340E AND U441E AUTOMATIC TRANSAXLES■DESCRIPTION.The new model uses 2 types (U340E,U441E)of automatic transaxle.A U340E automatic transaxle is provided on the INZ-FE engine model,and a U441E automatic transaxleis provided on the 2NZ-FE engine model..A low-viscosity type automatic transmission fluid (Toyota Genuine ATF WS)is used for the U340Eautomatic transaxle..Shift control in uphill/downhill traveling is used for the automatic transaxles.The basic construction of the automatic transaxles is the same as on the previous model.CH171CH03165aH23U340E Automatic TransaxleU441E Automatic TransaxleSpecificationTransaxle TypeU340EU441EEngine Type1NZ-FE2NZ-FElst2.8472.8752nd1.5521.568Gear Ratio3rd1.000←4th0.7000.696Reverse2.3432.300Differential Gear Ratio*14.2374.375Fluid Capacity*2Liters (US qts,Imp.qts)6.4(6.78,5.63)5.6(5.96,4.96)Fluid TypeToyota Genuine ATF WSToyota GenuineATF Type T-IVWeight(Reference)*3kg (1b)68.5(150.7)56.7(124.7)*1:Counter Gear Ratio Included*2:Differential Included*3:Weight shows the figure with the fluid fully filled.
