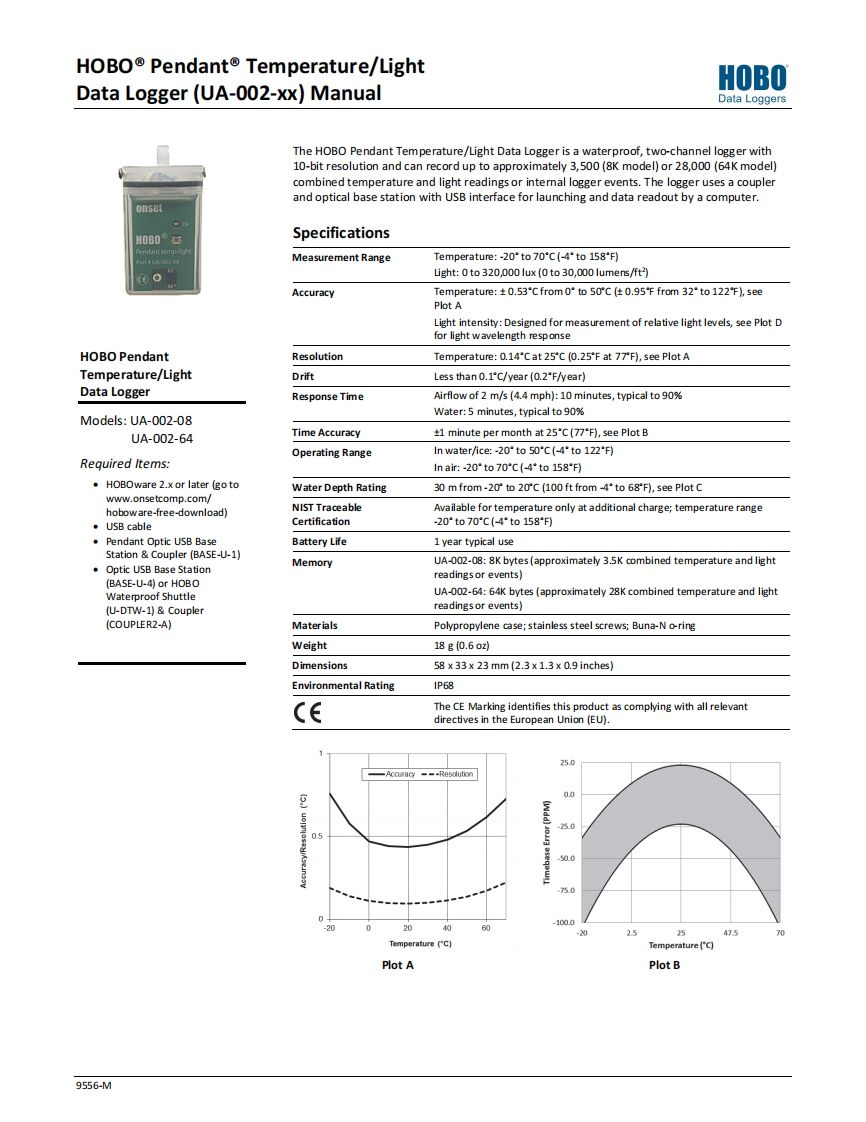

HOBO Pendant Temperature/LightData Logger(UA-002-xx)ManualHOBOData LoggersThe HOBO Pendant Temperature/Light Data Logger is a waterproof,two-channel logger with10-bit resolution and can record up to approximately 3,500(8K model)or 28,000(64K model)combined temperature and light readings or internal logger events.The logger uses a couplerand optical base station with USB interface for launching and data readout by a computer.onselHOBOSpecificationsMeasurement RangeTemperature:-20°to70℃(-4°to158*F)Light:0 to 320,000 lux (0 to 30,000 lumens/ft")AccuracyTemperature:±0.53℃from0°to50C(仕0.95℉from32to122℉，seePlot ALight intensity:Designed for measurement of relative light levels,see Plot Dfor light wavelength responseHOBO PendantResolutionTemperature:0.14*Cat 25*C (0.25*F at 77F),see Plot ATemperature/LightDriftLess than 0.1'C/year(0.2*F/year)Data LoggerResponse TimeAirflow of 2 m/s(4.4 mph):10 minutes,typical to 90%Models:UA-002-08Water:5 minutes,typical to 90%UA-002-64Time Accuracy1minute per month at 25*C(77*F),see Plot BOperating RangeIn water/ice:-20°to50°℃(4°to122*F)Required Items:Inair::-20°to70c(-4°to158F).HOBOware 2.x or later (go toWater Depth Rating30 m from-20to20C(100 ft from-4°to68F日，5 ee Plot Cwww.onsetcomp.com/hoboware-free-download)NIST TraceableAvailable for temperature only at additional charge;temperature range·USB cableCertification20°to70°℃(4°to158*F).Pendant Optic USB BaseBattery Life1 year typical useStation Coupler (BASE-U-1).Optic USB Base StationMemoryUA-002-08:8K bytes(approximately 3.5K combined temperature and lightreadings or events)(BASE-U-4)or HOBOWaterproof ShuttleUA-002-64:64K bytes(approximately 28K combined temperature and light(U-DTW-1)&Couplerreadings or events)(COUPLER2-A)MaterialsPolypropylene case;stainless steel screws;Buna-N o-ringWeight18g(0.60Dimensions58x33x23mm(2.3×1.3x0.9 inches)Environmental Rating1P68The CE Marking identifies this product as complying with all relevantdirectives in the European Union(EU).25.0--Resolution25.00550.075.0-100.0202525475Temperature (C]Temperature(C)Plot APlot B9556-M
