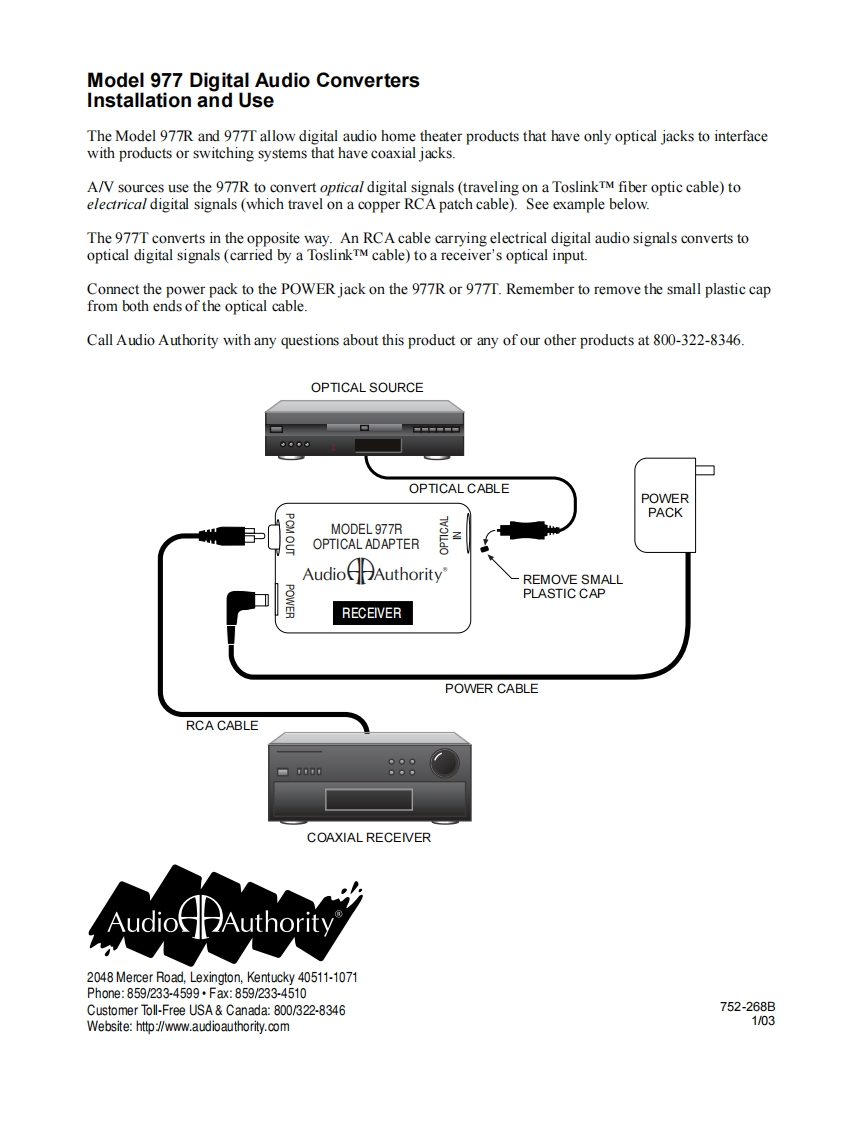

Model 977 Digital Audio ConvertersInstallation and UseThe Model 977R and 977T allow digital audio home theater products that have only optical jacks to interfacewith products or switching systems that have coaxial jacks.A/V sources use the 977R to convert optical digital signals(traveling on a ToslinkTM fiber optic cable)toelectrical digital signals(which travel on a copper RCA patch cable).See example below.The 977T converts in the opposite way.An RCA cable carrying electrical digital audio signals converts tooptical digital signals(carried by a ToslinkTM cable)to a receiver's optical input.Connect the power pack to the POWER jack on the 977R or 977T.Remember to remove the small plastic capfrom both ends of the optical cable.Call Audio Authority with any questions about this product or any of our other products at 800-322-8346.OPTICAL SOURCE▣OPTICAL CABLEPOWERPACKPCM OUTMODEL 977ROPTICAL ADAPTERAudioPAuthorityREMOVE SMALLPOWERPLASTIC CAPRECEIVERPOWER CABLERCA CABLE000▣0000●。●COAXIAL RECEIERAudioPAuthority'2048 Mercer Road,Lexington,Kentucky 40511-1071Phone:859/233-4599·FaXx:859/233-4510Customer Toll-Free USA&Canada:800/322-8346752-268BWebsite:http://www.audioauthority.com1/03
