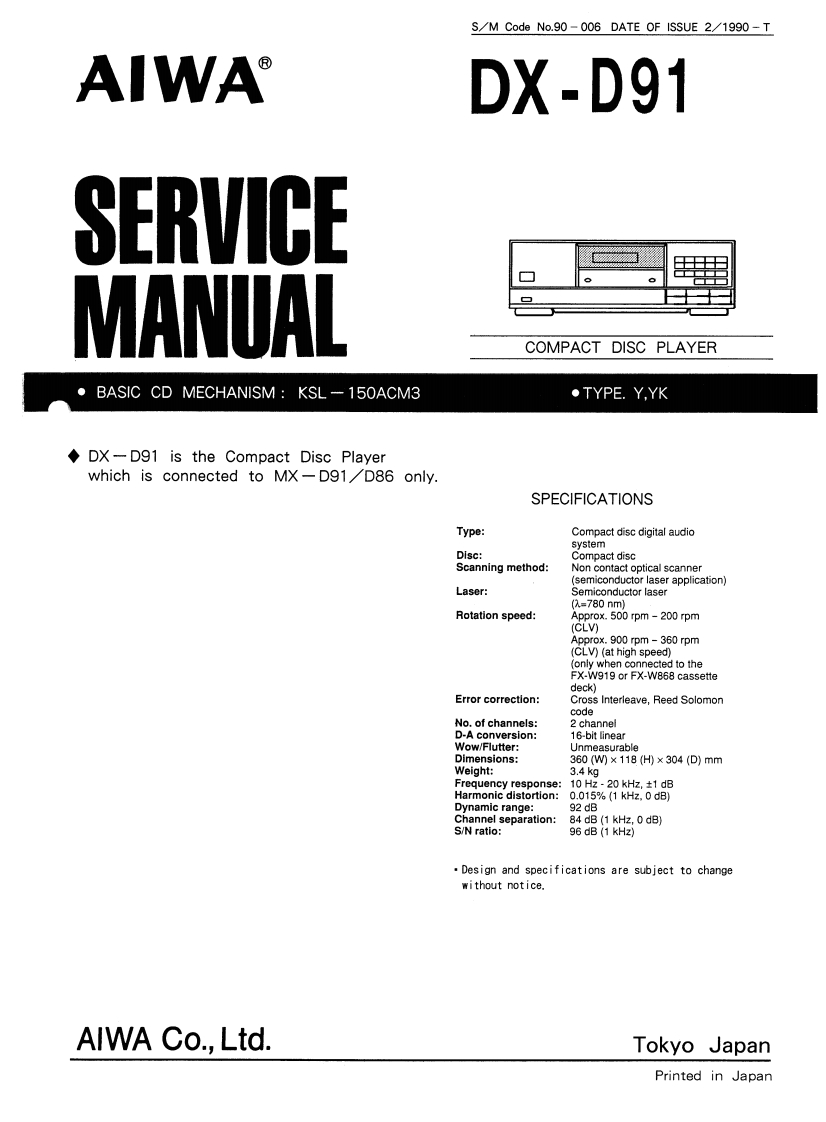

S/M Code No.90-006 DATE OF ISSUE 2/1990-TAWADX-D91SERVIC旺MANUALCOMPACT DISC PLAYERBASIC CD MECHANISM:KSL-150ACM3·TYPE.Y,YKDX-D91 is the Compact Disc Playerwhich is connected to MX-D91/D86 only.SPECIFICATIONSType:Compact disc digital audiosystemDisc:Compact discScanning method:Non contact optical scanner(semiconductor laser application)Laser:Semiconductor laser(2=780nm)Rotation speed:Approx.500 rpm-200 rpm(CLV)Approx.900 rpm-360 rpm(CLV)(at high speed)(only when connected to theFX-W919 or FX-W868 cassettedeck)Error correction:Cross Interleave,Reed SolomoncodeNo.of channels:2 channelD-A conversion:16-bit linearWow/Flutter:UnmeasurableDimensions:360(W)×118(H×304(D)mmWeight:3.4kgFrequency response:10 Hz-20 kHz,t1 dBHarmonic distortion:0.015%(1kHz.0dB)Dynamic range:92 dBChannel separation:84 dB (1 kHz,0 dB)S/N ratio:96 dB (1 kHz)Design and specifications are subject to changewi thout notice.AlWA Co..Ltd.Tokyo JapanPrinted in Japan
