Aiwa-DXM73-cd-维修说明书手册含电器原理图

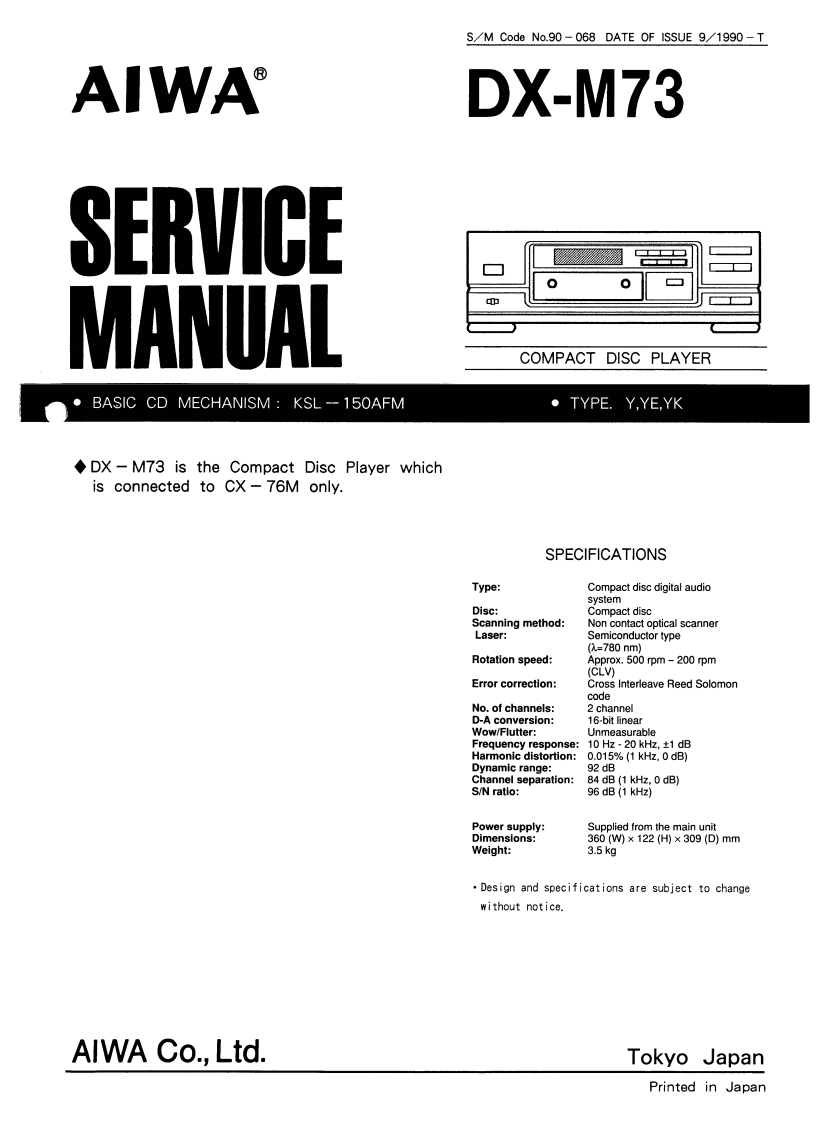

S/M Code No.90-068 DATE OF ISSUE 9/1990-TAWADX-M73SERVICEMANUALCOMPACT DISC PLAYERBASIC CD MECHANISM:KSL-150AFM·TYPE.Y,YE,YKDX-M73 is the Compact Disc Player whichis connected to CX-76M only.SPECIFICATIONSType:Compact disc digital audiosystemDisc:Compact discScanning method:Non contact optical scannerLaser:Semiconductor type=780nm)Rotation speed:Approx.500 rpm -200 rpm(CLV)Error correction:Cross Interleave Reed SolomoncodeNo.of channels2 channelD-A conversion:16-bit linearWow/Flutter:UnmeasurableFrequency response:10Hz,20kHz,±1dBHarmonic distortion:0.015%(1kHz,0dB)Dynamic range:92 dBChannel separation:84 dB (1 kHz,0 dB)S/N ratio:96 dB (1 kHz)Power supply:Supplied from the main unitDimensions:360(W0×122(H)×309(D)mmWeight:3.5kgDesign and specifications are subject to changewithout notice.AlWA Co.,Ltd.Tokyo JapanPrinted in Japan
