Aiwa-DXM80-cd-维修说明书手册含电器原理图

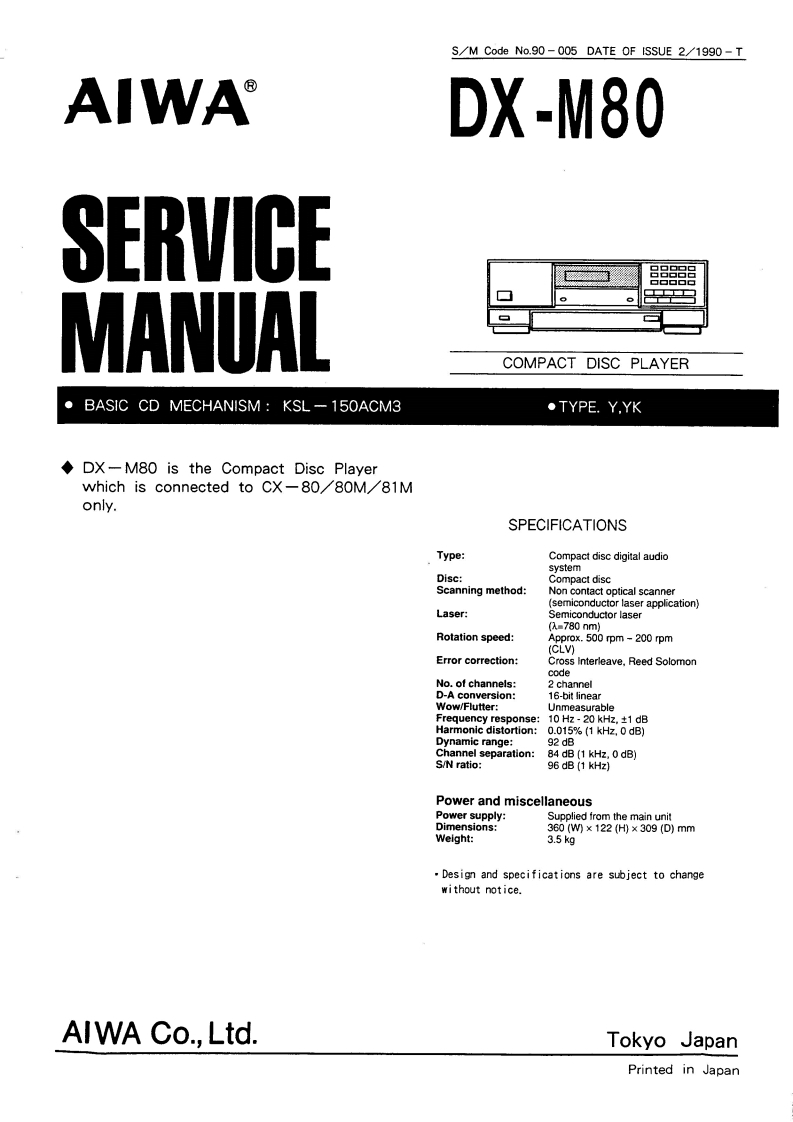

S/M Code No.90-005 DATE OF ISSUE 2/1990-TAWADX-M80SERVICEMANUALCOMPACT DISC PLAYERBASIC CD MECHANISM:KSL-150ACM3●TYPE.Y,YK◆DX一M80 is the Compact Disc Playerwhich is connected to CX-80/80M/81Monly.SPECIFICATIONSType:Compact disc digital audiosystemDisc:Compact discScanning method:Non contact optical scanner(semiconductor laser application)Laser:Semiconductor laser(=780nmRotation speed:Approx.500 rpm -200 rpm(CLV)Error correction:Cross interleave,Reed SolomoncodeNo.of channels:2 channelD-A conversion:16-bit linearWow/Flutter:UnmeasurableFrequency response:10Hz-20kHz.±1dBHarmonic distortion:0.015%(1kHz,0dB)Dynamic range:92 dBChannel separation:84 dB (1 kHz,0 dB)S/N ratio:96 dB(1 kHz)Power and miscellaneous62ers6Pe7Supplied from the main unit360(WM×122(H)×309(D)mmWeight:3.5kgDesign and specifications are subject to changewi thout notice.AIWA Co.,Ltd.Tokyo JapanPrinted in Japan
