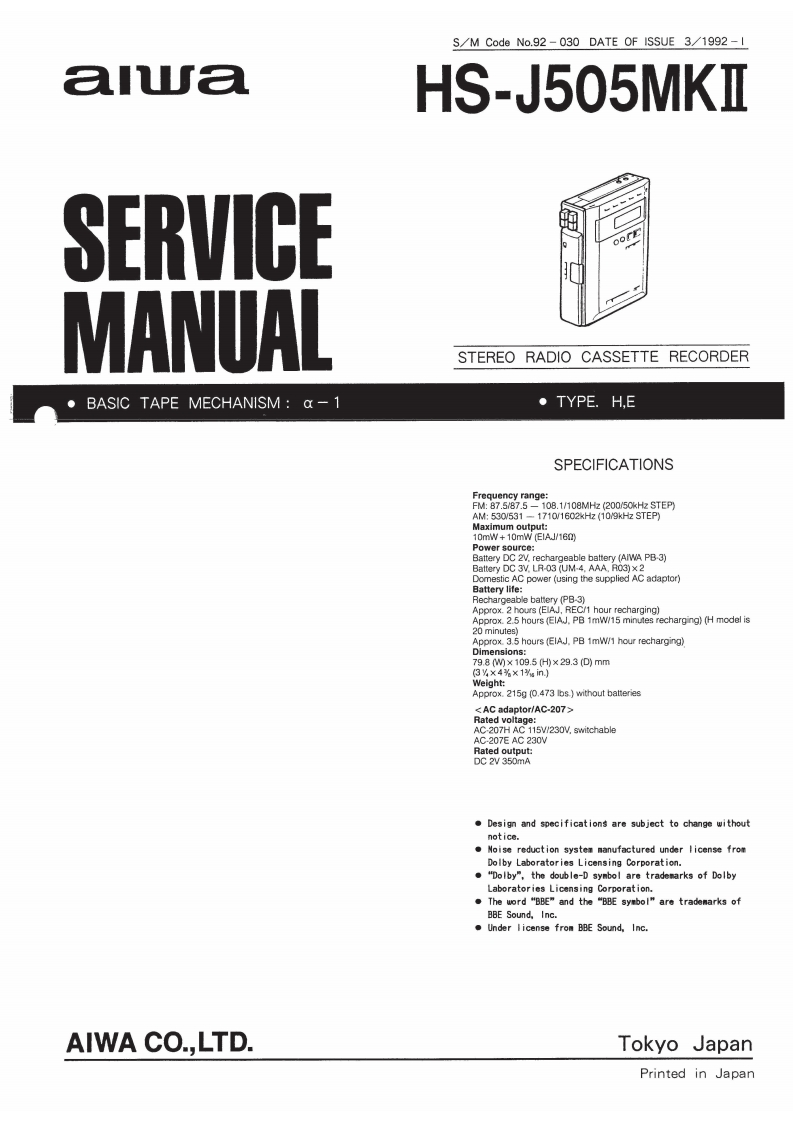

S/M Code No.92 -030 DATE OF ISSUE 3/1992-1auaHS-J505MKISERVIC旺MANUALSTEREO RADIO CASSETTE RECORDER●BASIC TAPE MECHANISM:a-1·TYPE.H,ESPECIFICATIONSFrequency range:Fh:87.587.5-10B.1/108MHz200/50 kHz STEAM:530W531-17101602Hz(109 kHz STEP)Power sourc●：Battery DC 2V.rechargeable battery (AIWA PB-3)Battery DC 3V.LR-03 (UM-4.AAA.R03)x 2Domestic AC power (using the supplied AC adaptor)Battery life:Rechargeable battery (PB-3)Approx2 hours (EIAJ REC1 hour recharging)Approx.2.5 hours (EIAJ.PB 1mW/15 minutes recharging)(H model is20 minutes)Approx.3.5 hours (EIAJ.PB 1mW/1 hour recharging)Dimensions:79.8M×109.50×29.3D)mm3%×4%×1ywin】Weight:Approx.215g (0.473 Ibs without batteriesRated voltage:AC-207H AC 115V/230V,switchableAC-207E AC 230VRated ouDC 2V 350mADesign and specifications are subject to change withoutnotice.Noise reduction systea manufactured under license fromDolby Laboratories Licensing Corporation."Dolby",the double-D symbol are trademarks of DolbyLaboratories Licensing Corporation.The word "BBE"and the "BBE syabol"are trademarks ofBBE Sound,Inc.Under license from BBE Sound,IncAIWA CO.,LTD.Tokyo JapanPrinted in Japan
