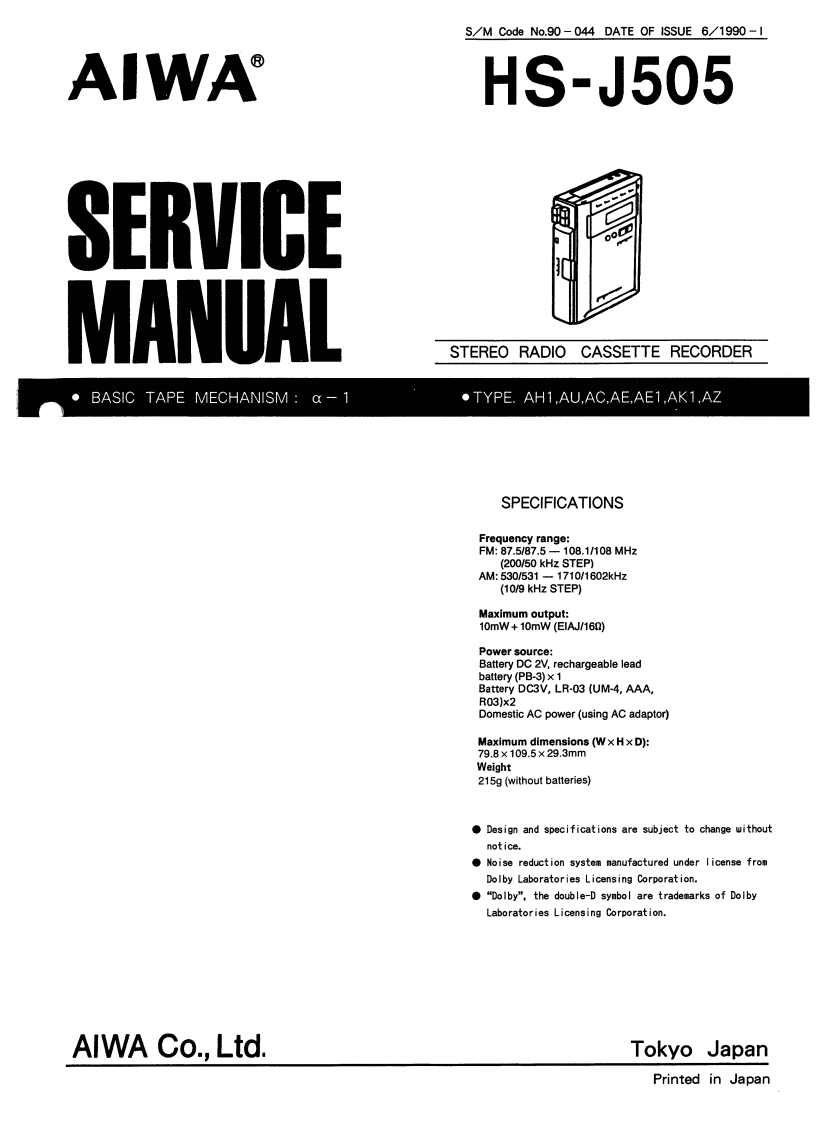

S/M Code No.90-044 DATE OF ISSUE 6/1990-IAIWAHS-J505SERVICEMANUALSTEREO RADIO CASSETTE RECORDERBASIC TAPE MECHANISM:a -1.TYPE.AH1,AU,AC.AE,AE1,AK1,AZSPECIFICATIONSFrequency range:FMk87.5/87.5-108.1/108MHz(200/50 kHz STEP)AM:530/531-1710/1602kHz(10/9 kHz STEP)Maximum output:10mW+10mW (EIAJ/160)Power source:Battery DC 2V,rechargeable leadbattery(PB-3)×1Battery DC3V,LR-03 (UM-4,AAAR03)x2Domestic AC power (using AC adaptor)Maximum dimensions (Wx Hx D):79.8×109.5×29.3mmWeight215g (without batteries)Design and specifications are subject to change withoutnotice.Noise reduction system manufactured under Iicense fromDolby Laboratories Licensing Corporation."Dolby",the double-D symbol are trademarks of DolbyLaboratories Licensing Corporation.AIWA Co..LtdTokyo JapanPrinted in Japan
