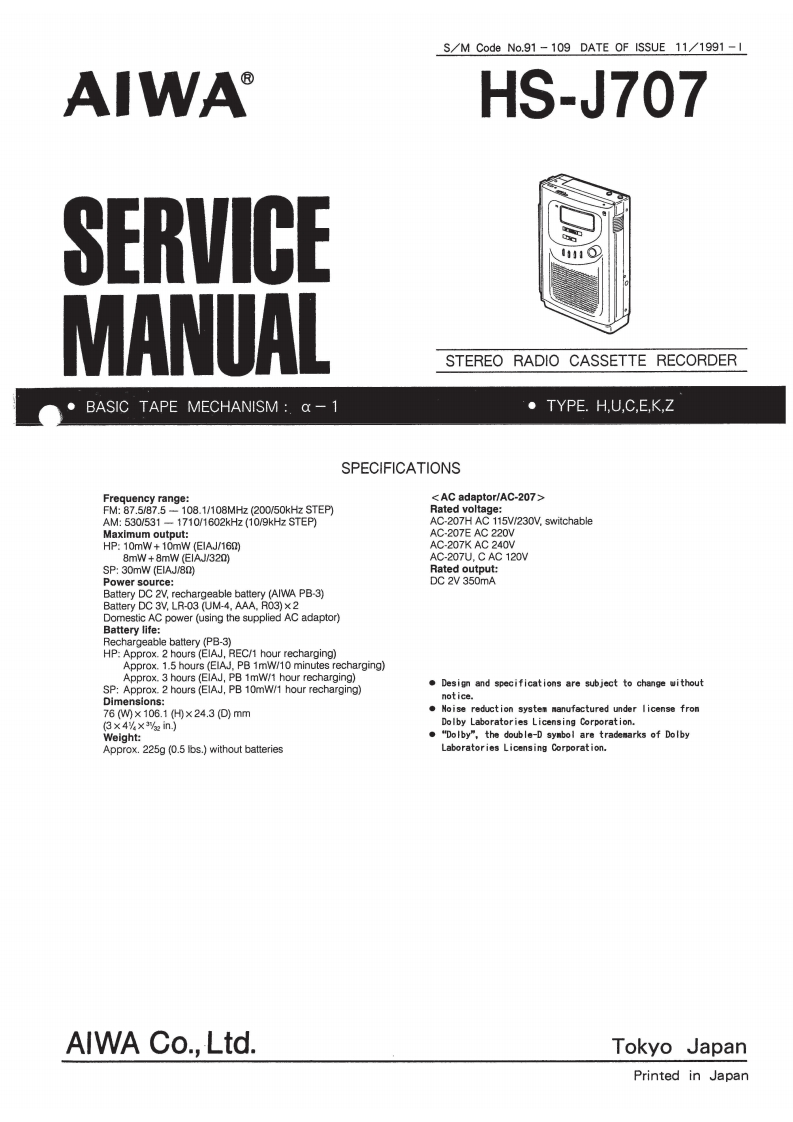

S/M Code No.91-109 DATE OF ISSUE 11/1991-1AIWAHS-J707S旺RVIG旺MANUALSTEREO RADIO CASSETTE RECORDERBASIC TAPE MECHANISM:a-1·TYPE.H,U,C,E,K,ZSPECIFICATIONSFrequency range:FM:87.5/87.5-108.1/108MHz(200/50 kHz STEPRated voltage:AM:530/531-1710/1602kHz(109 kHz STEP)AC-207H AC 115V/230V,switchableMaximum output:AC-207E AC 220VHP:10mW+10mW (EIAJ/160)AC-207K AC 240V8mW +8mW (EIAJ/320)AC-207U,C AC 120VSP:30mW (EIAJ/80)Rated output:Power source:DC 2V 350mABattery DC 2V,rechargeable battery (AIWA PB-3)Battery DC 3V,LR-03 (UM-4,AAA,R03)x2Domestic AC power (using the supplied AC adaptor)Battery life:Rechargeable battery (PB-3)HP:Approx.2 hours (EIAJ,REC/1 hour recharging)Approx.1.5 hours (EIAJ,PB 1mW/10 minutes recharging)Approx.3 hours (ElAJ,PB 1mW/1 hour recharging)SP:Approx.2 hours (EIAJ,PB 10mW/1 hour recharging)Design and specifications are subject to change withoutnotic地Dimensions:76W×106.1h×24.3(D)mmNoise reduction systen manufactured under license fror3×4%×%ein)Dolby Laboratories Licensing Corporation.Weight:"Dolby",the double-D symbol are trademarks of DolbyApprox.225g (0.5 lbs.)without batteriesLaboratories Licensing Corporation.AIWA Co..LtdTokyo JapanPrinted in Japan
