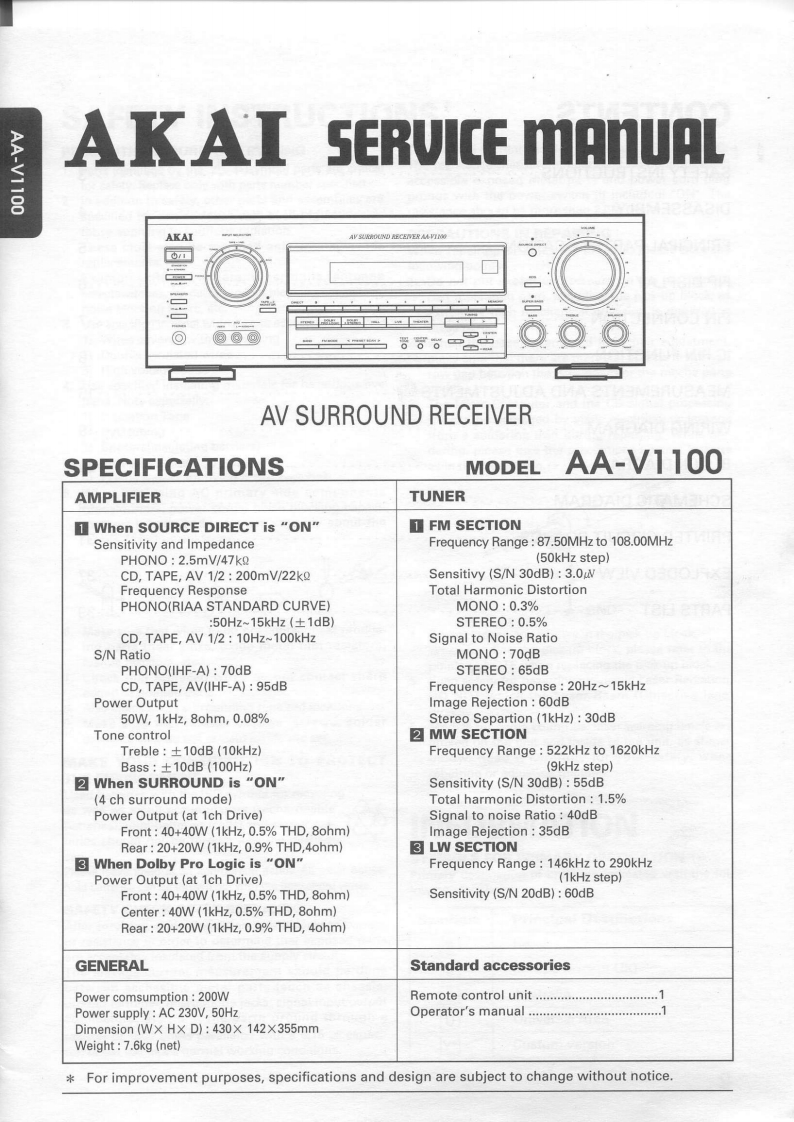

AA-V1100AKAI SERVICE mAnUALAKAI@@@AV SURROUND RECEIVERSPECIFICATIONSMODEL.AA-V1100AMPLIFIERTUNER1When SOURCE DIRECT is "ON"FM SECTIONSensitivity and ImpedanceFrequency Range:87.50MHz to 108.00MHzPHONO 2.5mV/47kg(50kHz step)CD,TAPE,AV 1/2:200mV/22kgSensitivy (S/N 30dB):3.0NFrequency ResponseTotal Harmonic DistortionPHONO(RIAA STANDARD CURVE)M0N0:0.3%:50Hz-15kHz(±1dB}STEREO:0.5%CD,TAPE,AV 1/2 10Hz~100kHzSignal to Noise RatioS/N RatioMONO:70dBPHONO(IHF-A):70dBSTEREO:65dBCD,TAPE,AV(IHF-A):95dBFrequency Response:20Hz~15kHzPower OutputImage Rejection:60dB50W,1kHz,8ohm,0.08%Stereo Separtion(1kHz):30dBTone controlMW SECTIONTreble:±10dB(10kHz)Frequency Range:522kHz to 1620kHzBass:±10dB(100Hz)(9kHz step)When SURROUND is "ON"Sensitivity(S/N 30dB):55dB(4 ch surround mode)Total harmonic Distortion:1.5%Power Output(at 1ch Drive)Signal to noise Ratio 40dBFront:40+40W(1kHz,0.5%THD,8ohm)Image Rejection:35dBRear:20+20W(1kHz,0.9%THD,4ohm)LW SECTION3When Dolby Pro Logic is "ON"Frequency Range:146kHz to 290kHzPower Output (at 1ch Drive)(1kHz step)Front 40+40W(1kHz,0.5%THD,8ohm)Sensitivity(S/N 20dB):60dBCenter 40W(1kHz,0.5%THD,8ohm)Rear 20+20W(1kHz,0.9%THD,4ohm)GENERALStandard accessoriesPower comsumption 200WRemote control unitPower supply AC 230V,50HzOperator's manualDimension(W×H×D):430×142X355mmWeight:7.6kg (net)米For improvement purposes,specifications and design are subject to change without notice.
