Akai-AAV1200-avr-维修说明书手册含电器原理图

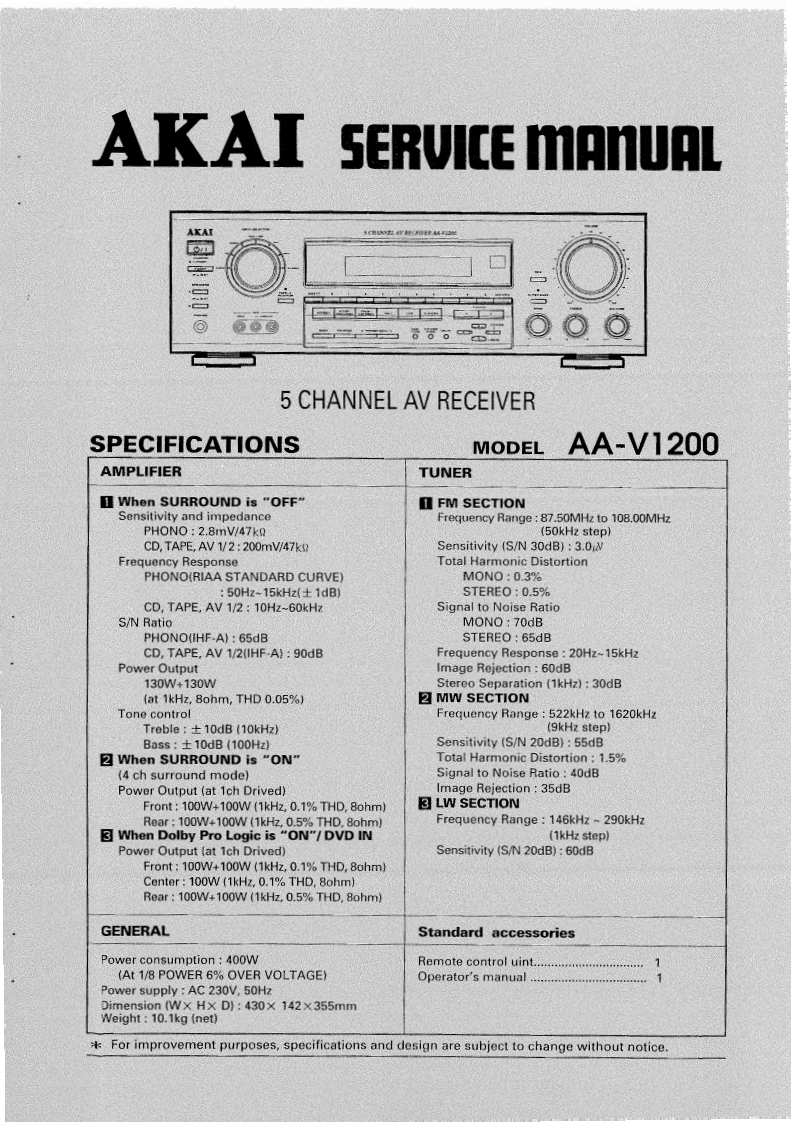

AKAI SERVICE mANUAL5 CHANNEL AV RECEIVERSPECIFICATIONSMODELAA-V1200AMPLIFIERTUNERWhen SURROUND is "OFF"FM SECTIONSensitivity and impedanceFrequency Range 87.50MHz to 108.00MHzPHONO:2.8mV/47kg(50kHz step)CD,TAPE,AV 1/2:200mV/47koSensitivity (S/N 30dB):3.0NFrequency ResponseTotal Harmonic DistortionPHONO(RIAA STANDARD CURVE)MONO:0.3%:50Hz-15kHz(±1dBSTEREO:0.5%CD,TAPE,AV 1/2:10Hz-60kHzSignal to Noise RatioS/N RatioMONO:70dBPHONO(IHF-A):65dBSTEREO:65dBCD,TAPE,AV 1/2(IHF-A):90dBFrequency Response:20Hz-15kHzPower OutputImage Rejection:60dB130W+130WStereo Separation (1kHz):30dB(at 1kHz,8ohm,THD 0.05%)MW SECTIONTone controlFrequency Range 522kHz to 1620kHzTreble:±10dB(10kHz(9 kHz step】Bass:±10dB(100Hz)Sensitivity (S/N 20dB):55dBWhen SURROUND is "ON"Total Harmonic Distortion:1.5%(4 ch surround mode)Signal to Noise Ratio:40dBPower Output(at 1ch Drived)Image Rejection:35dBFront 100W+100W(1kHz,0.1%THD,8ohm)LW SECTIONRear:100W+100W(1kHz,0.5%THD,8ohm)Frequency Range:146kHz~290kHzWhen Dolby Pro Logic is "ON"/DVD IN(1kHz step)Power Output (at 1ch Drived)Sensitivity (S/N 20dB):60dBFront:100W+100W (1kHz,0.1%THD,8ohm)Center:100W(1kHz,0.1%THD,8ohm)Rear:100W+100W(1kHz.0.5%THD,8ohm)GENERALStandard accessoriesPower consumption:400WRemote control uint.…(At 1/8 POWER 6%OVER VOLTAGE)Operator's manualPower supply AC 230V,50HzDimension (WX HX D):430X 142x355mmWeight:10.1kg (net)For improvement purposes,specifications and design are subject to change without notice.
