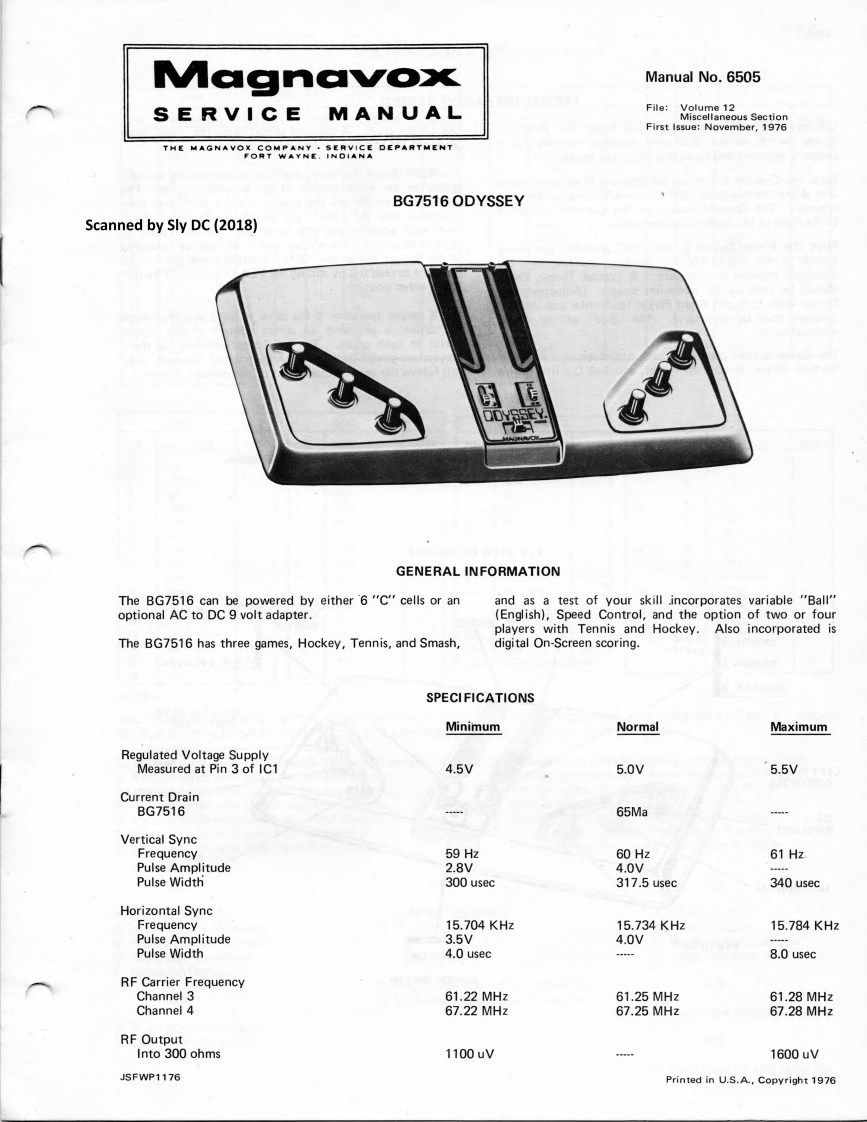

MagnavoxManual No.6505SERVICE MANUALFile:Volume 12Miscellaneous SectionFirst Issue:November,1976THE:DEPARTMENTBG7516 ODYSSEYScanned by Sly DC(2018)匠GENERAL INFORMATIONThe BG7516 can be powered by either 6"'C"cells or anand as a test of your skill incorporates variable "Ball"optional AC to DC 9 volt adapter(English),Speed Control,and the option of two or fourplayers with Tennis and Hockey.Also incorporated isThe BG7516 has three games,Hockey,Tennis,and Smash,digital On-Screen scoring.SPECIFICATIONSMinimumNormalMaximumRegulated Voltage SupplyMeasured at Pin 3 of IC14.5V5.0V5.5VCurrent DrainBG751665MaVertical SyncFrequency59 Hz60 Hz61HzPulse Amplitude2.8V4.0VPulse Width300 usec317.5 usec340 usecHorizontal SyncFrequency15.704KHz15.734KHz15.784KHzPulse Amplitude3.5V4.0VPulse Width4.0 usec8.0 usecRF Carrier FrequencyChannel 361.22MHz61.25MHz61.28MHzChannel 467.22MHz67.25MHz67.28MHzRF OutputInto 300 ohms1100uV1600uVJSFWP1176Printed in U.S.A.,Copyright 1976
