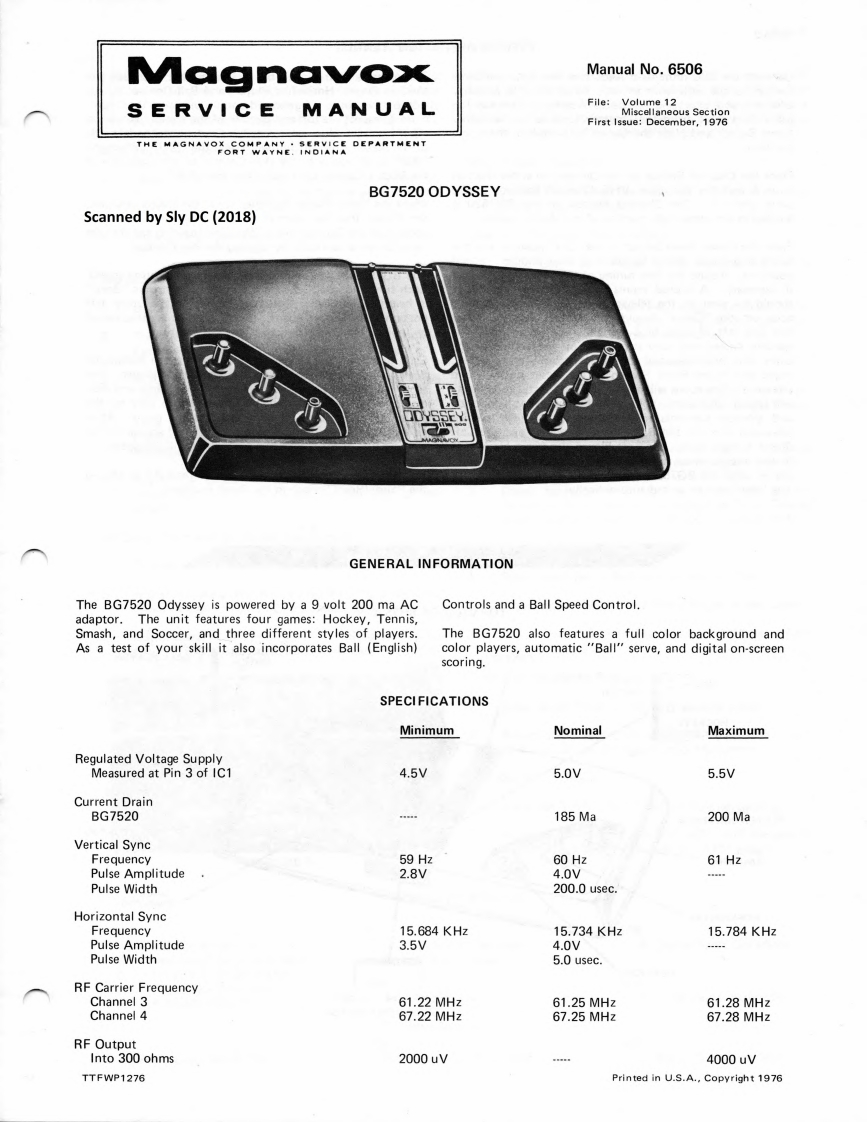

MagnavoxManual No.6506SERVICE MANUALFile:Volume 12Miscellaneous SectionFirst Issue:December,1976DEPARTMENTBG7520 ODYSSEYScanned by Sly DC(2018)GENERAL INFORMATIONThe BG7520 Odyssey is powered by a 9 volt 200 ma ACControls and a Ball Speed Control.adaptor.The unit features four games:Hockey,Tennis,Smash,and Soccer,and three different styles of players.The BG7520 also features a full color background andAs a test of your skill it also incorporates Ball (English)color players,automatic "Ball"serve,and digital on-screenscoring.SPECIFICATIONSMinimumNominalMaximumRegulated Voltage SupplyMeasured at Pin 3 of IC14.5V5.0V5.5VCurrent DrainBG7520185Ma200MaVertical SyncFrequency59 Hz60 Hz61 HzPulse Amplitude2.8V4.0VPulse Width200.0usec.Horizontal SyncFrequency15.684KHz15.734KHz15.784KHzPulse Amplitude3.5V4.0VPulse Width5.0 usecRF Carrier FrequencyChannel 361.22MHz61.25MHz61.28MHzChannel 467.22MHz67.25MHz67.28MHzRF OutputInto 300 ohms2000uV4000uVTTFWP1276Printed in U.S.A.,Copyright 1976
