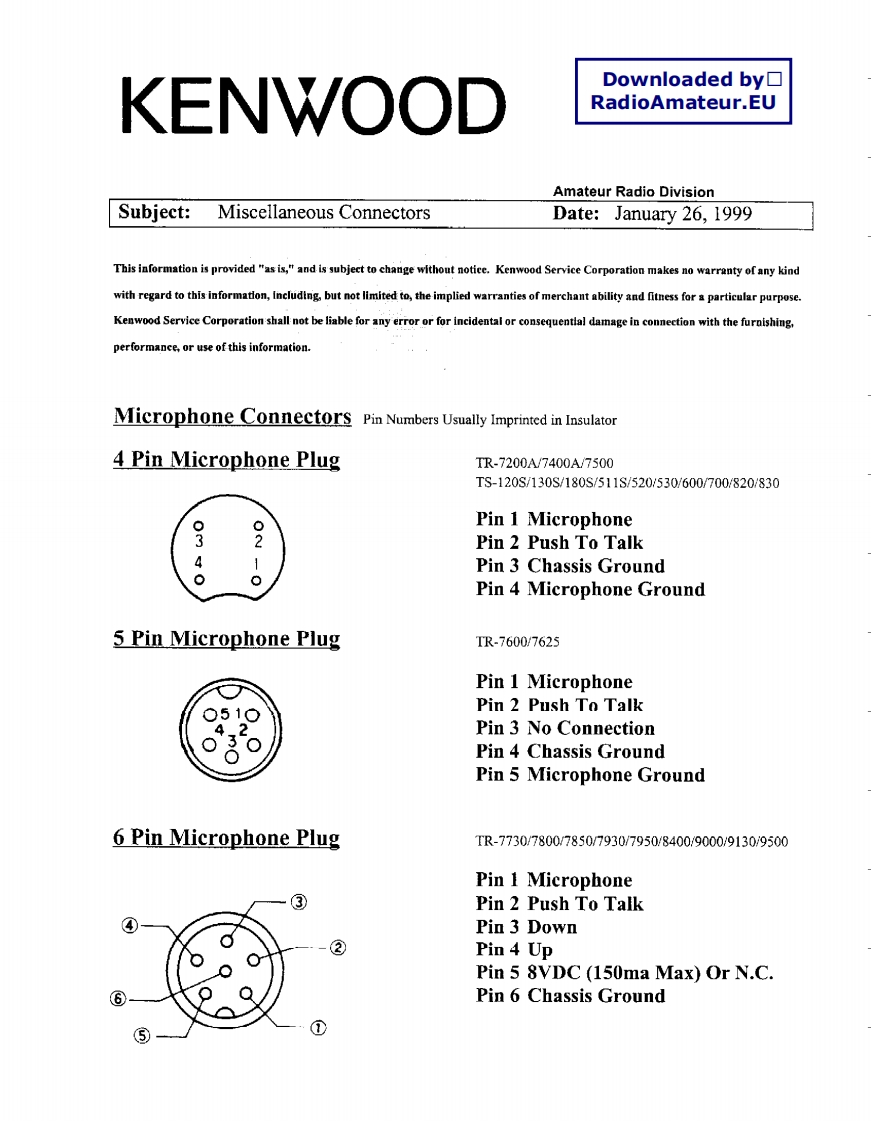

Downloaded by□KENWOODRadioAmateur.EUAmateur Radio DivisionSubject:Miscellaneous ConnectorsDate:January 26,1999This information is provided "as is,"and is subject to change without notice.Kenwood Service Corporation makes no warranty of any kindwith regard to this information,Including,but not limited to the implied warranties of merchant ability and fitness for a particular purpose.Kenwood Service Corporation shall not be liable for any error or for incidental or consequential damage in connection with the furnishing.performance,or use of this information.Microphone Connectors Pin Numbers Usually imprinted in Insulator4 Pin Microphone PlugTR-7200A7400A7500TS-120S/130S/180S/511S/520/530/600/700,820830Pin 1 Microphone32Pin 2 Push To Talk4Pin 3 Chassis GroundPin 4 Microphone Ground5 Pin Microphone PlugTR-7600/7625Pin 1 MicrophonePin 2 Push To TalkPin 3 No ConnectionPin 4 Chassis GroundPin 5 Microphone Ground6 Pin Microphone PlugTR-7730/7800/7850/7930/7950/8400,900091309500Pin 1 Microphone③Pin 2 Push To TalkPin 3 Down②Pin 4 UpPin 5 8VDC (150ma Max)Or N.C.Pin 6 Chassis Ground
