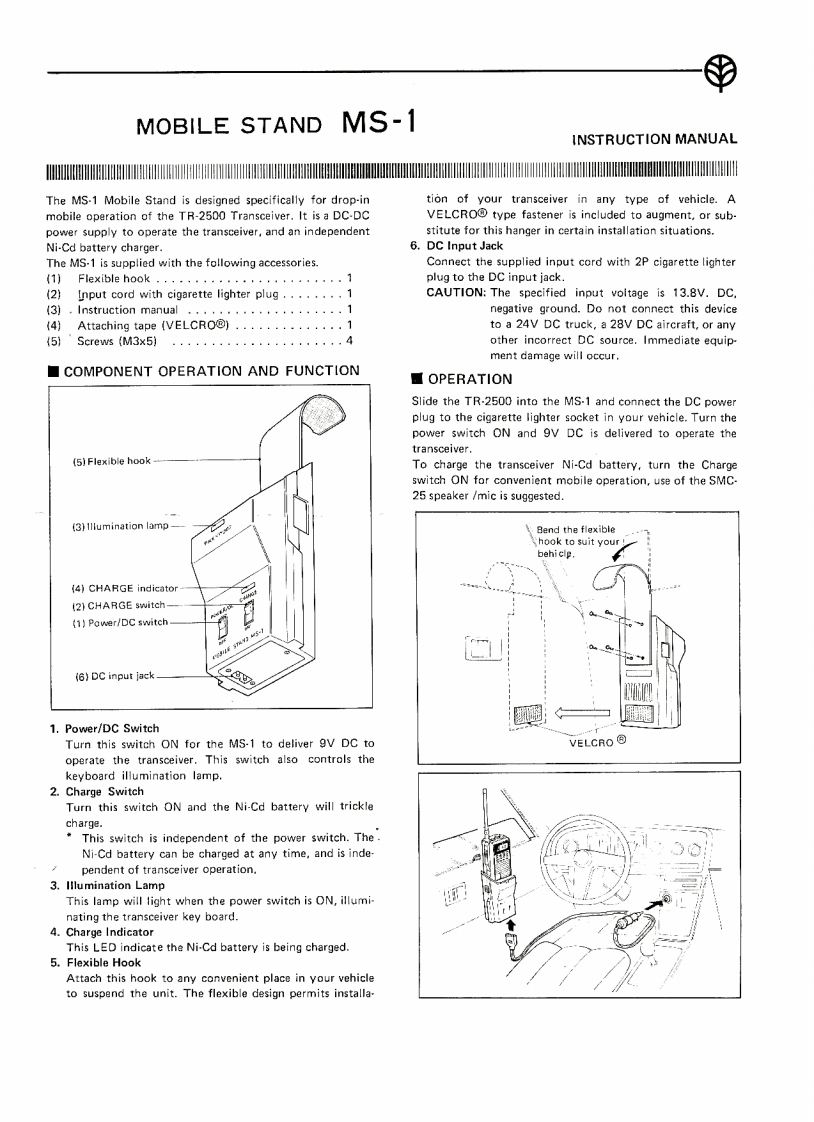

MOBILE STANDMS-1INSTRUCTION MANUALBBBmBThe MS-1 Mobile Stand is designed specifically for drop-intion of your transceiver in any type of vehicle.Amobile operation of the TR-2500 Transceiver.It is a DC-DCVELCRO type fastener is included to augment,or sub.power supply to operate the transceiver,and an independentstitute for this hanger in certain installation situations.Ni-Cd battery charger.6.DC Input JackThe MS-1 is supplied with the following accessories.Connect the supplied input cord with 2P cigarette lighter(1)Flexible hook.,,,,,,。。。,,,,,,,,·,,...1plug to the DC input jack.(2)Input cord with cigarette lighter plug........1CAUTION:The specified input voltage is 13.8V.DC.(3).Instruction manual ...................1negative ground.Do not connect this device(41Attaching tape (VELCRO@).......·.·..1to a 24V DC truck,a 28V DC aircraft,or any(51Screws (M3x5)other incorrect DC source.Immediate equip-ment damage will occur.COMPONENT OPERATION AND FUNCTION■OPERATIONSlide the TR-2500 into the MS-1 and connect the DC powerplug to the cigarette lighter socket in your vehicle.Turn thepower switch ON and 9V DC is delivered to operate thetransceiver.(5)Flexible hookTo charge the transceiver Ni-Cd battery,turn the Chargeswitch ON for convenient mobile operation,use of the SMC.25 speaker/mic is suggested.(3)1llumination lamp-Bend the flexiblehook to suit yourbehicle.(4)CHARGE indicator(2)CHARGE switch-(1)Pawer/DC switch.(6)DC input jack1.Power/DC SwitchTurn this switch ON for the MS-1 to deliver 9V DC toVELCRO®operate the transceiver.This switch also controls thekeyboard illumination lamp.2.Charge SwitchTurn this switch ON and the Ni-Cd battery will tricklecharge.This switch is independent of the power switch.The.Ni-Cd battery can be charged at any time,and is inde-pendent of transceiver operation.3.lllumination LampThis lamp will light when the power switch is ON,illumi-nating the transceiver key board.4.Charge IndicatorThis LED indicate the Ni-Cd battery is being charged.5.Flexible HookAttach this hook to any convenient place in your vehicleto suspend the unit.The flexible design permits installa
