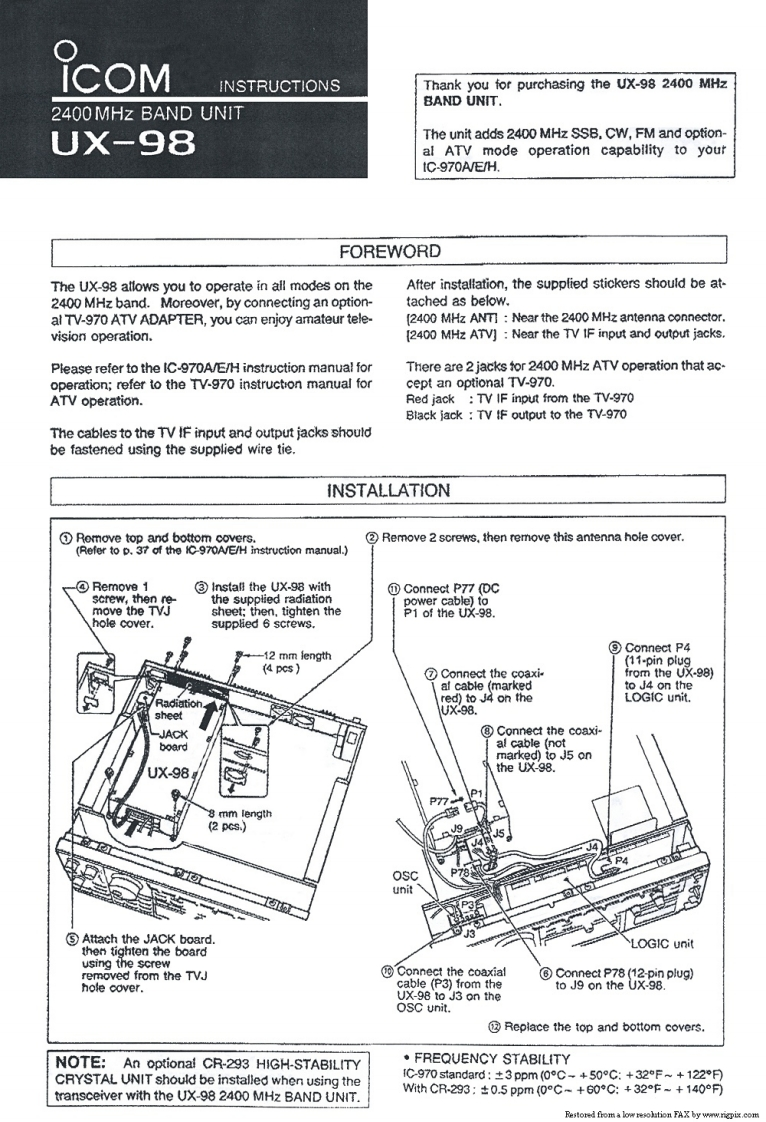

GcOMINSTRUCTIONSThank you for purchasing the UX-98 2400 MHzBAND UNIT.2400MHz BAND UNITUX-98The unit adds 2400 MHz SSB.CW,FM and option-al ATV mode operation capability to your1C-970A/E/H.FOREWORDThe UX-98 atlows you to operate in all modes on theAfter installation,the supplied stickers should be at-2400 MHz band.Moreover,by connecting an option-tached as below.al TV-970 ATV ADAPTER,you can enjoy amateur tele-(2400 MHz ANT]Near the 2400 MHz antenna connector.vision operation.[2400 MHz ATV]Near the TV IF input and output jacks.Please refer to the IC-970A/E/H instruction manual forThere are 2jacks for 2400 MHz ATV operation that ac-operation;refer to the TV-970 instruction manual forcept an optional TV-970.ATV operation.Red jack TV IF input from the TV-970Black jack TV IF output to the TV-970The cables to the TV IF input and output jacks shouldbe fastened using the supplied wire tie.INSTALLATIONGRomove top and bottom covers.2 Remove 2 screws.then remove this antenna hole cover.(Refer to p.37 of the IC-970A/E/H instruction manual.)Remove 1③insta1 the UX-98with①Connect P77DCscrew.then rethe supplied radiationmove the TVJpower cable)tosheet:then,tighten theP1 of the UX-98.hole cover.suppled 6 screws.©Connect P4罗--12 mm length(11-pin plug4pc5】⑦Connect the coaxi.from the UX-98)af cable (markedto J4 on theRadiationred)to J4 on theLOGIC unit.sheetUX98.-JACK8 Connect the coaxi-boardal cable (notmarked)to J5 onUX-98the UX-98.0P1P778 mm length2pGs）】J9oscunitP⑤Attach the JACK bo8rdLOGIC unitthen tighten the boardusing the screwremoved from the TVJConnect the coaxial6 Connect P78(12-pin plug)hole cover.cable (P3)from theto J9 on the UX-98UX-98 to J3 on theOSC unit.Replace the top and bottom covers.NOTE:An optional CR-293 HIGH-STABILITY·FREQUENCY STABILITYCRYSTAL UNIT should be installed when using the1C970 standard:±3ppm(0C-+50C:+32F~+122月transceiver with the UX-98 2400 MHz BAND UNIT.With CR-293:±0.5Ppm(0C-+60C:+32F~+140月
