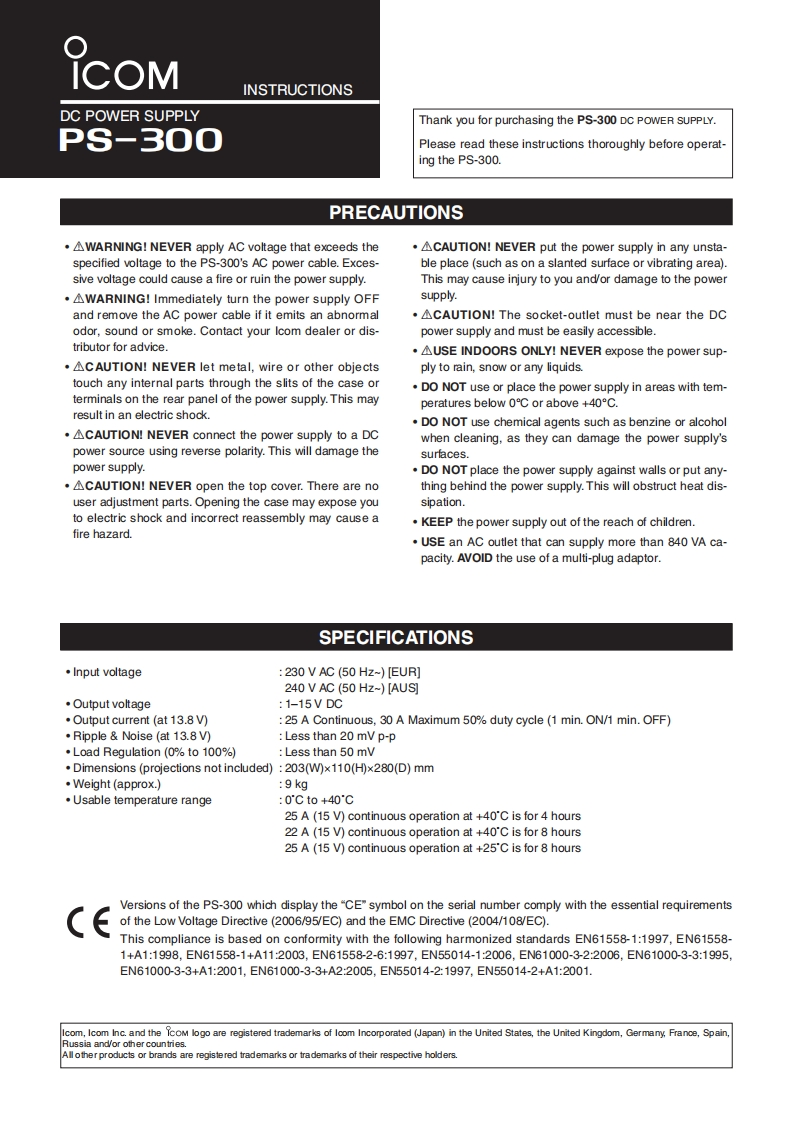

iCOMINSTRUCTIONSDC POWER SUPPLYThank you for purchasing the PS-300 DC POWER SUPPLY.PS-300Please read these instructions thoroughly before operat-ing the PS-300.PRECAUTIONS.AWARNING!NEVER apply AC voltage that exceeds the.ACAUTION!NEVER put the power supply in any unsta-specified voltage to the PS-300's AC power cable.Exces-ble place(such as on a slanted surface or vibrating area).sive voltage could cause a fire or ruin the power supply.This may cause injury to you and/or damage to the power.AWARNING!Immediately turn the power supply OFFsupply.and remove the AC power cable if it emits an abnormal.ACAUTION!The socket-outlet must be near the DCodor,sound or smoke.Contact your lcom dealer or dis-power supply and must be easily accessible.tributor for advice..USE INDOORS ONLY!NEVER expose the power sup-.ACAUTION!NEVER let metal,wire or other objectsply to rain,snow or any liquids.touch any internal parts through the slits of the case orDO NOT use or place the power supply in areas with tem-terminals on the rear panel of the power supply.This mayperatures below0℃or above+40°C.result in an electric shock.DO NOT use chemical agents such as benzine or alcohol.ACAUTION!NEVER connect the power supply to a DCwhen cleaning,as they can damage the power supply'spower source using reverse polarity.This will damage thesurfaces.power supply.DO NOT place the power supply against walls or put any-.ACAUTION!NEVER open the top cover.There are nothing behind the power supply.This will obstruct heat dis-user adjustment parts.Opening the case may expose yousipation.to electric shock and incorrect reassembly may cause aKEEP the power supply out of the reach of children.fire hazard.USE an AC outlet that can supply more than 840 VA ca-pacity.AVOID the use of a multi-plug adaptor.SPECIFICATIONSInput voltage230 V AC (50 Hz~)[EUR]240 V AC (50 Hz~)[AUSOutput voltage:1-15VDc.Output current (at 13.8 V)25 A Continuous,30 A Maximum 50%duty cycle (1 min.ON/1 min.OFF)Ripple Noise (at 13.8V)Less than 20 mV p-pLoad Regulation (0%to 100%)Less than 50 mVDimensions (projections not included):203(W)x110(H)x280(D)mm·Weight(approx).9kgUsable temperature range:0'Cto+40'C25 A(15 V)continuous operation at +40'C is for 4 hours22 A(15 V)continuous operation at +40'C is for 8 hours25 A(15 V)continuous operation at +25'C is for 8 hoursVersions of the PS-300 which display the "CE"symbol on the serial number comply with the essential requirementsof the Low Voltage Directive (2006/95/EC)and the EMC Directive(2004/108/EC).This compliance is based on conformity with the following harmonized standards EN61558-1:1997,EN61558-1+A1:1998.EN61558-1+A11:2003.EN61558-2-6:1997.EN55014-1:2006,EN61000-3-2:2006.EN61000-3-3:1995EN61000-3-3+A1:2001,EN61000-3-3+A2:2005,EN55014-2:1997,EN55014-2+A1:2001.Icom,Icom Inc.and the Ycom logo are registered trademarks of lcom Incorporated (Japan)in the United States,the United Kingdom,Germany.France,Spain.Russia andor other countries.All other products or brandsarearks of their
