编号61：建伍KENWOOD-NX-840(H)(U)Revised_B5B-7127-10维修图纸手册

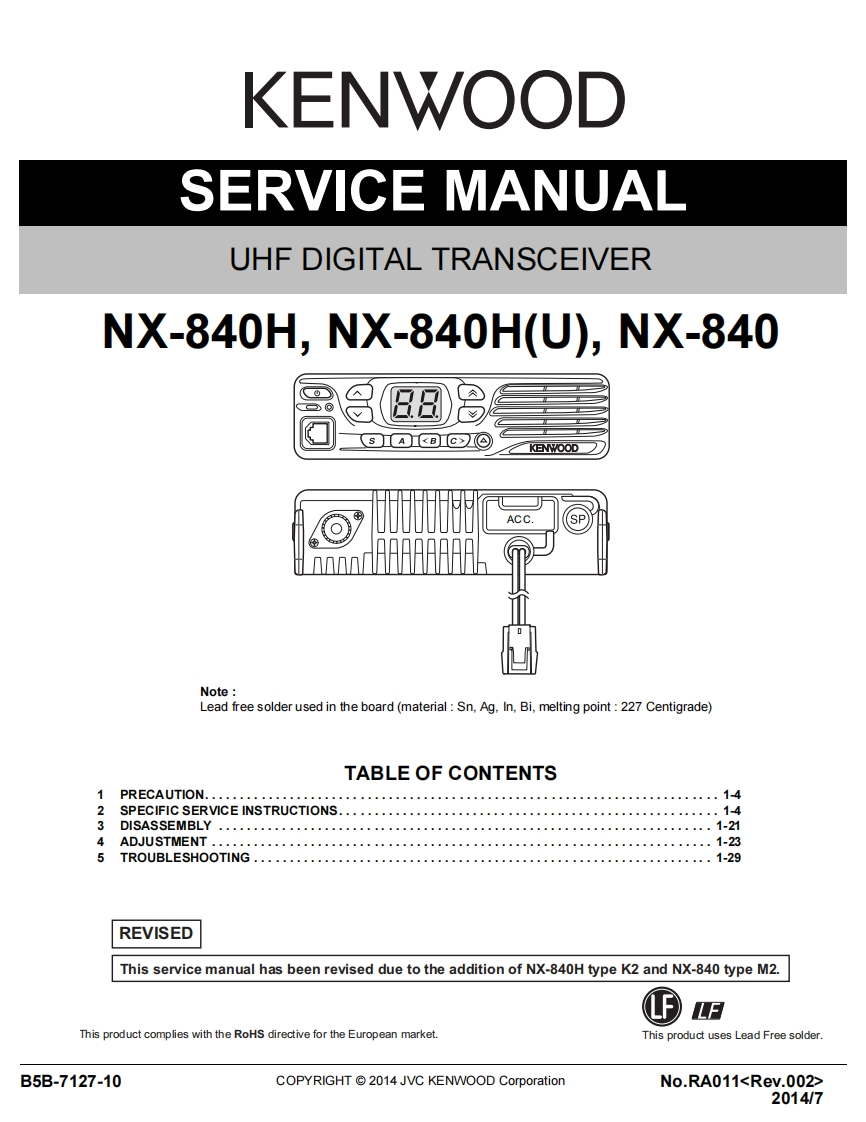

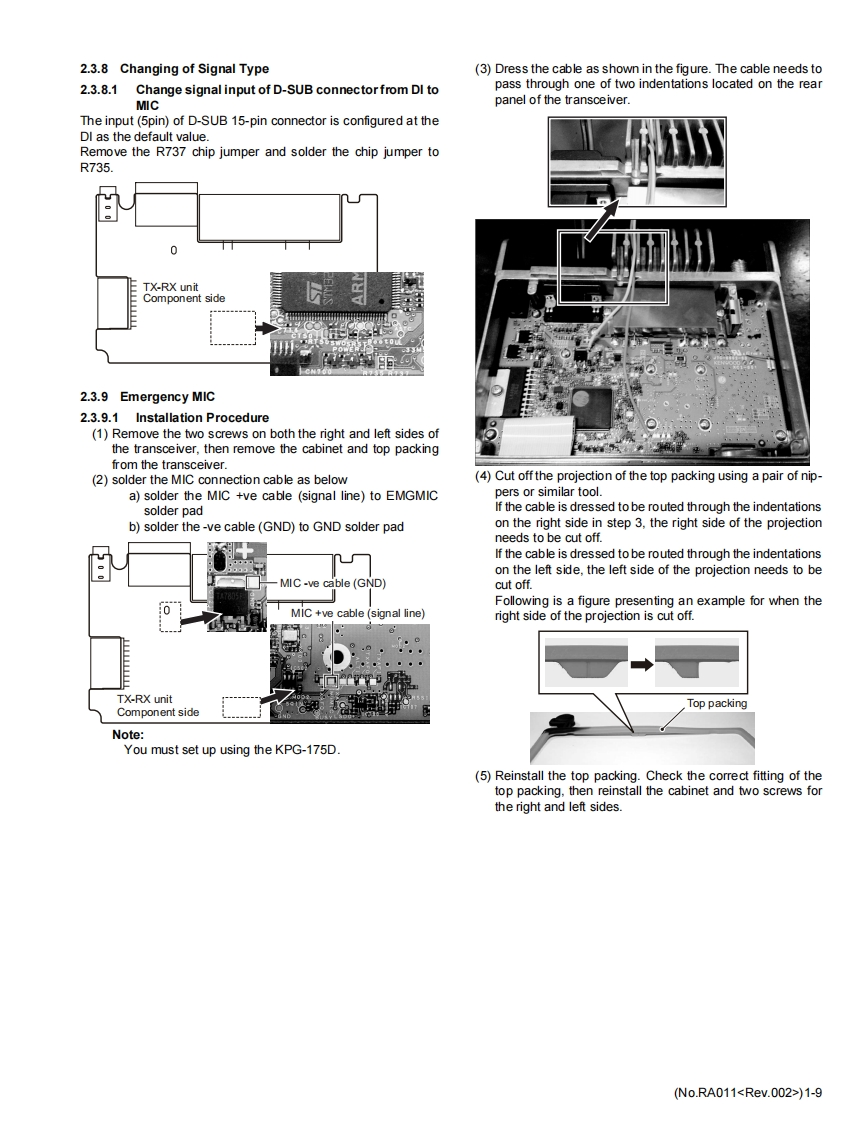

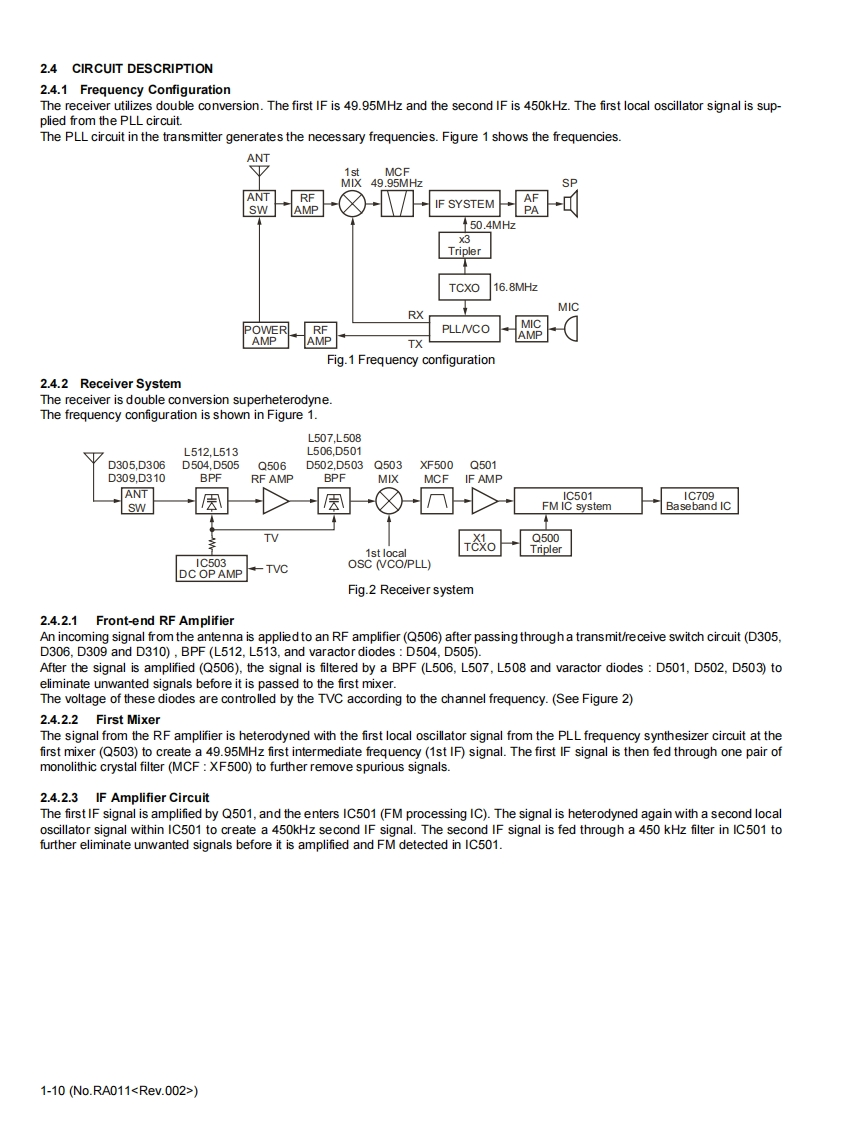

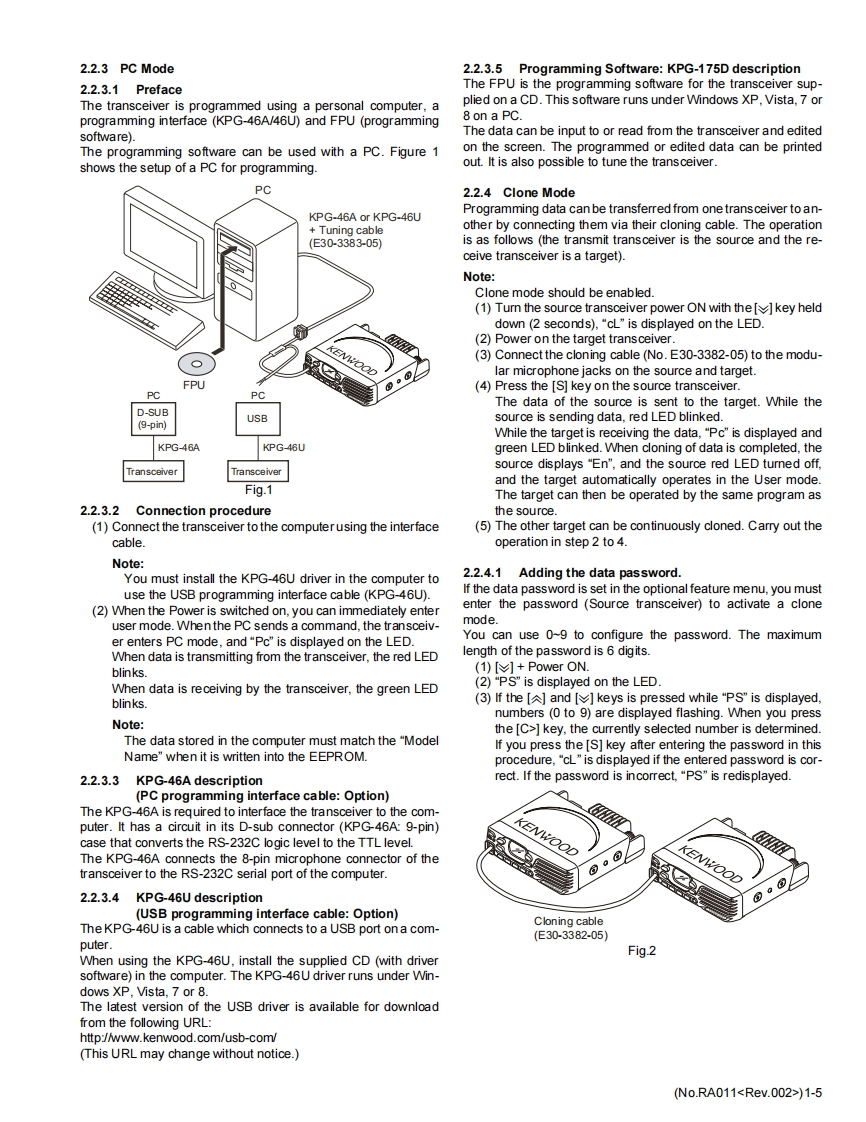

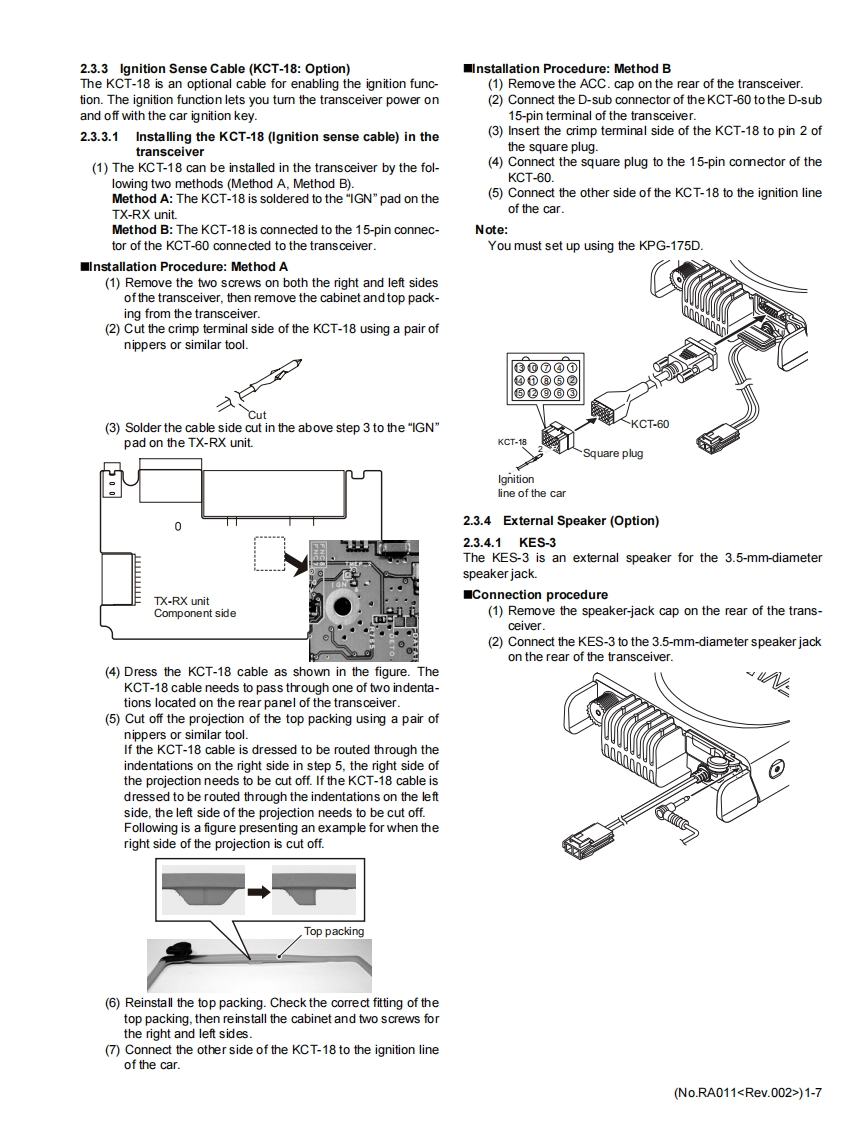

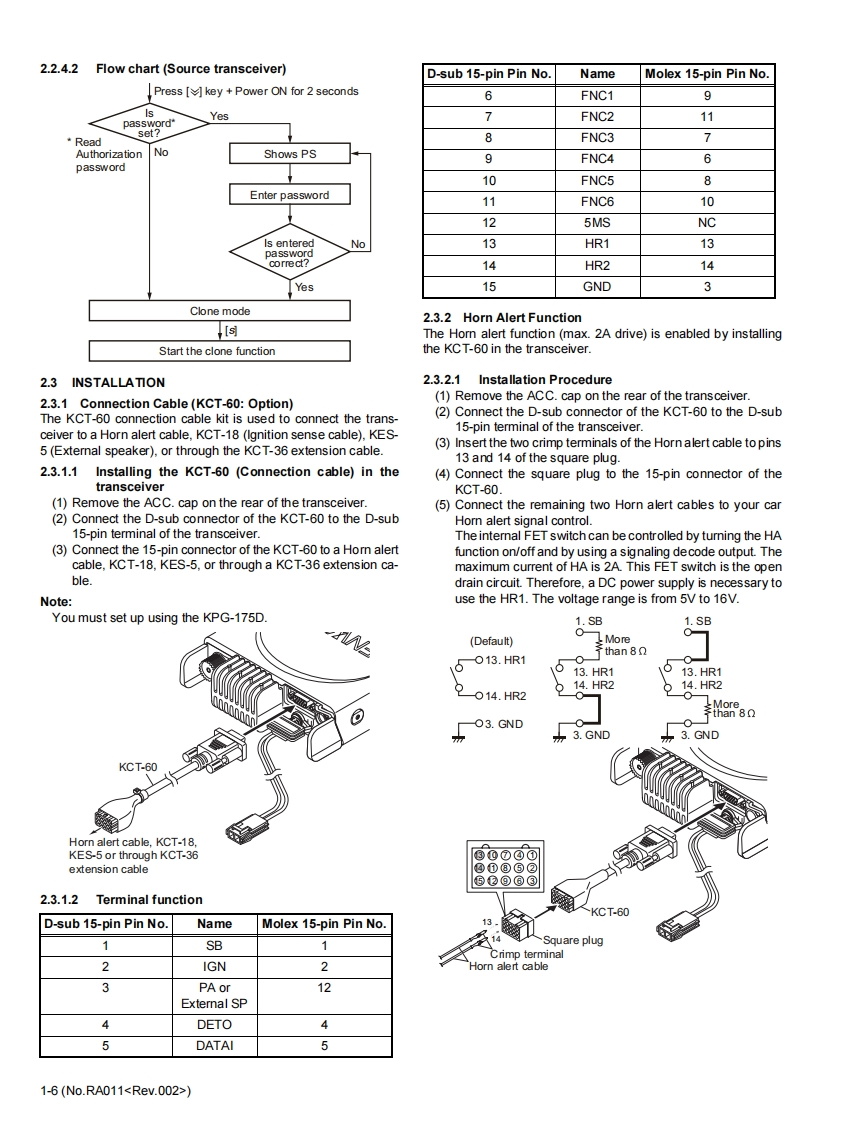

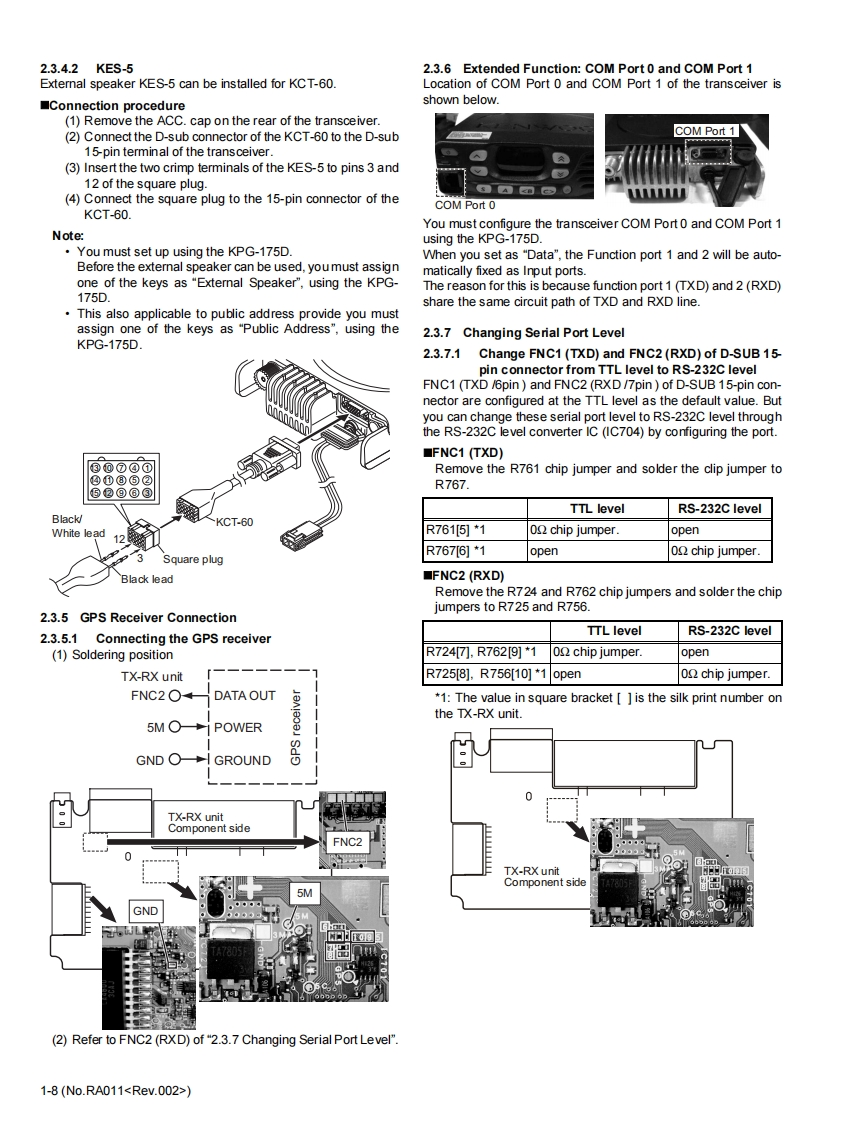

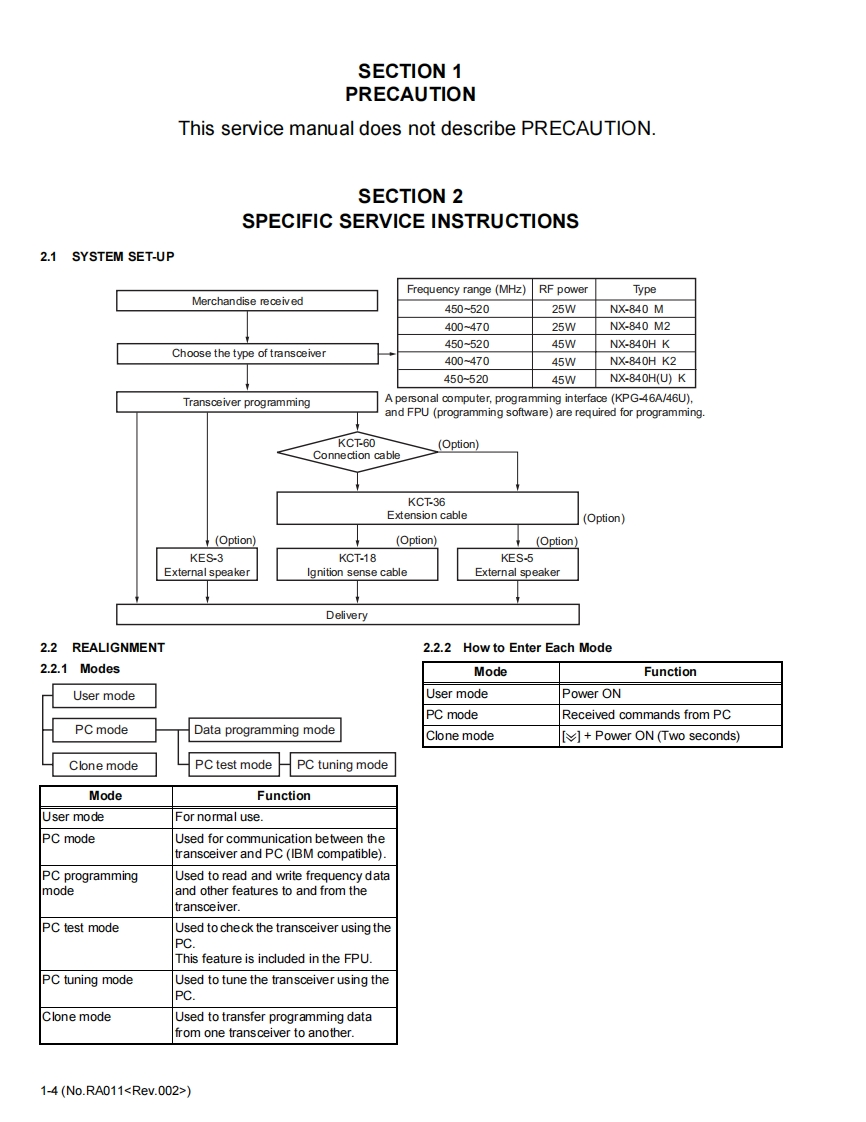

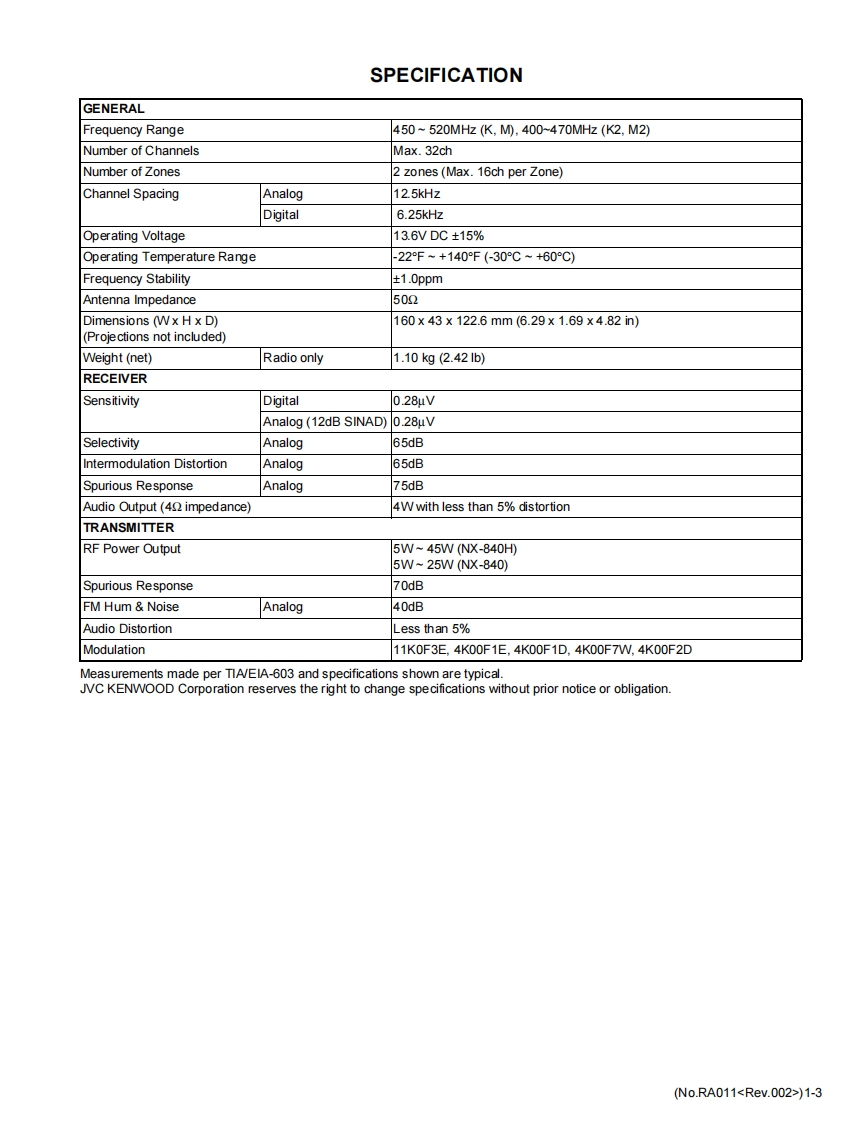

KENWOODSERVICE MANUALUHF DIGITAL TRANSCEIVERNX-840H,NX-840H(U),NX-840S@回8KENWOODACC.Note:Lead free solder used in the board(material:Sn,Ag,In,Bi,melting point:227 Centigrade)TABLE OF CONTENTS1PRECAUTION............2……1-4SPECIFIC SERVICE INSTRUCTIONS…1-4DISASSEMBLY1-21ADJUSTMENT....….1-23TROUBLESHOOTING.................................................................1-29REVISEDThis service manual has been revised due to the addition of NX-840H type K2 and NX-840 type M2.LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solderB5B-7127-10COPYRIGHT 2014 JVC KENWOOD CorporationNo.RA0112014/7
