编号60：建伍KENWOOD-NX-840(H)(U)_B5B-7127-00维修图纸手册

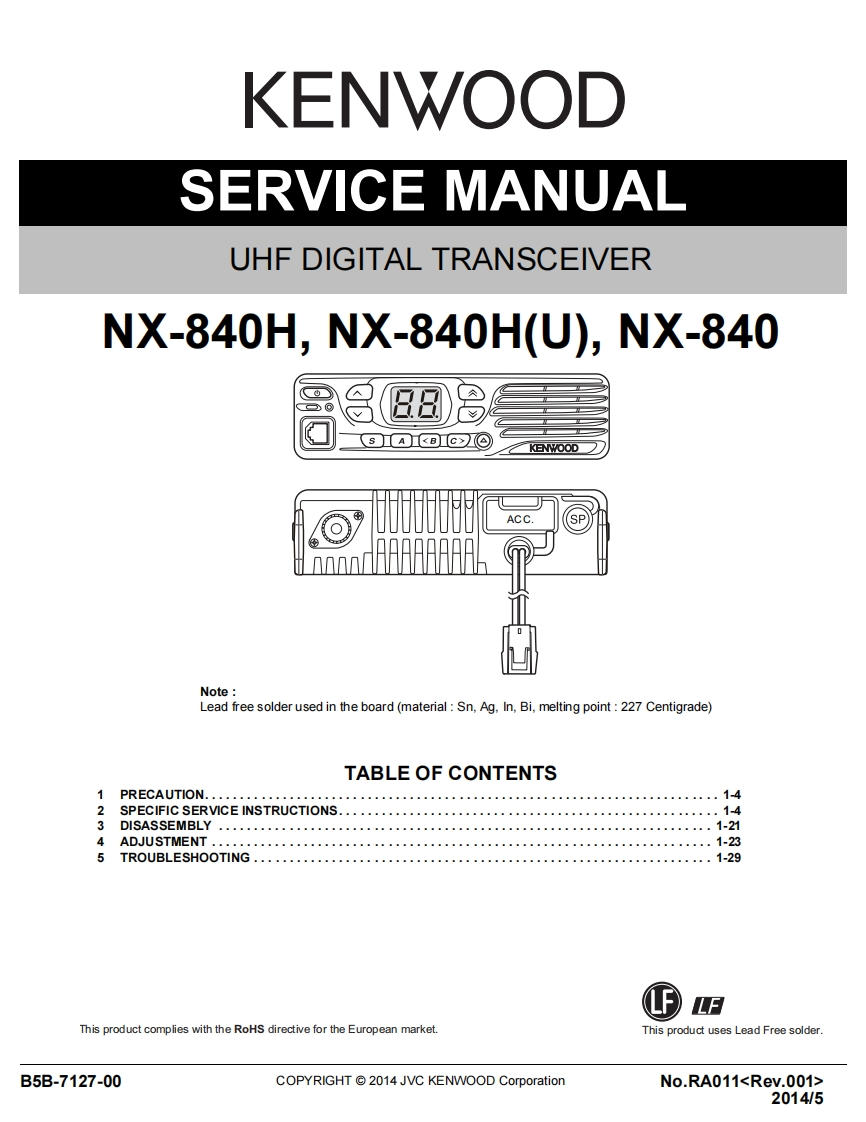

KENWOODSERVICE MANUALUHF DIGITAL TRANSCEIVERNX-840H,NX-840H(U),NX-840S@回周KENWOODACC.SPNote:Lead free solder used in the board(material:Sn,Ag,In,Bi,melting point:227 Centigrade)TABLE OF CONTENTS1PRECAUTION.........................................................................142SPECIFICSERVICEINSTRUCTIONS......................................................1-43DISASSEMBLY ......................................................................1-214ADJUSTMENT......….1-235TROUBLESHOOTING.................................................................1-29LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solderB5B-7127-00COPYRIGHT 2014 JVC KENWOOD CorporationNo.RA0112014/5
