编号59：建伍KENWOOD-NX-840H_B5B-7208-00(RA029)维修图纸手册

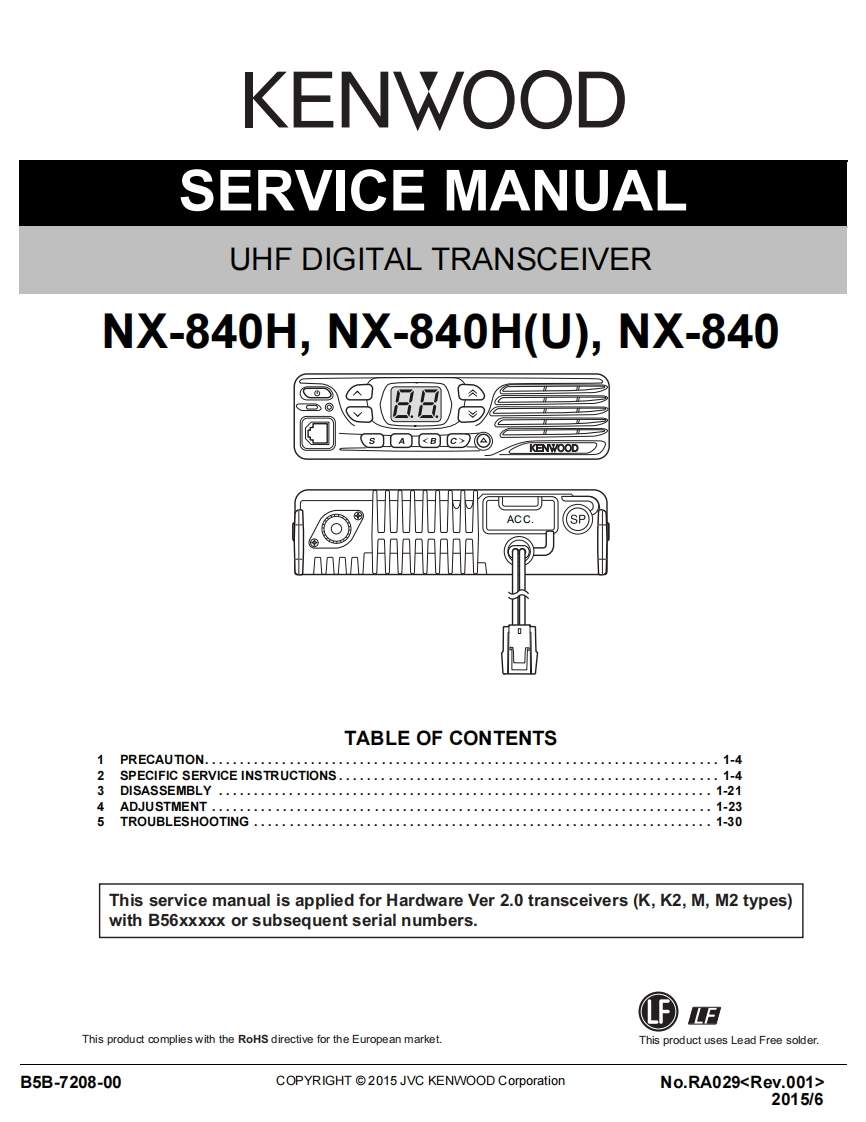

KENWOODSERVICE MANUALUHF DIGITAL TRANSCEIVERNX-840H,NX-840H(U),NX-840S@回周KENWOODACC.SPTABLE OF CONTENTSPRECAUTION.........................................................................1-42SPECIFIC SERVICE INSTRUCTIONS......................................................1-4DISASSEMBLY。。。。。。。。。。。。。4ADJUSTMENT.....1-235TROUBLESHOOTING..................This service manual is applied for Hardware Ver 2.0 transceivers(K,K2,M,M2 types)with B56xxxxx or subsequent serial numbers.LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.B5B-7208-00COPYRIGHT 2015 JVC KENWOOD CorporationNo.RA0292015/6
