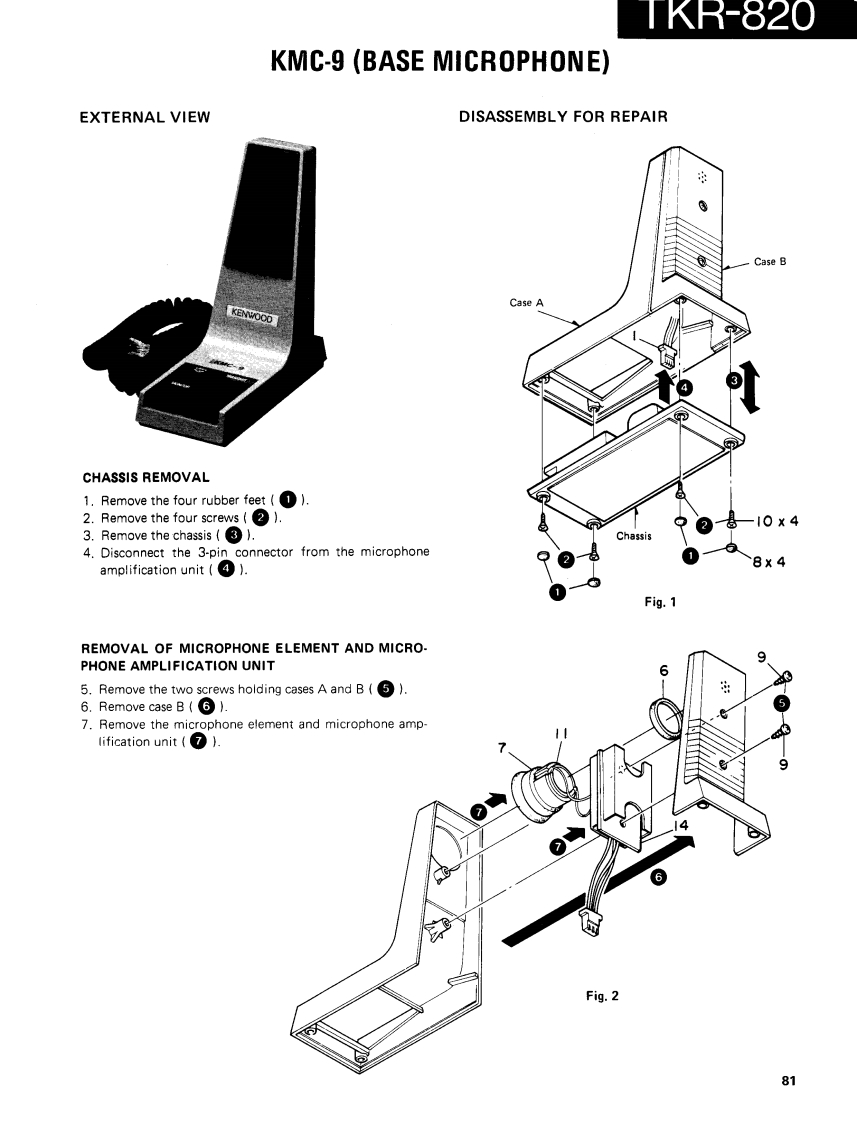

IKR-820KMC-9(BASE MICROPHONE)EXTERNAL VIEWDISASSEMBLY FOR REPAIRCase BCase AKENWOODCHASSIS REMOVAL1.Remove the four rubber feet (1).2.Remove the four screws (2).-10X43.Remove the chassis().Chassis4.Disconnect the 3-pin connector from the microphoneamplification unit ()8X4Fig.1REMOVAL OF MICROPHONE ELEMENT AND MICRO.9PHONE AMPLIFICATION UNIT65.Remove the two screws holding cases A and B(5).6.Remove case B(6）.7.Remove the microphone element and microphone amp-lification unit(⑦.6Fig.281
