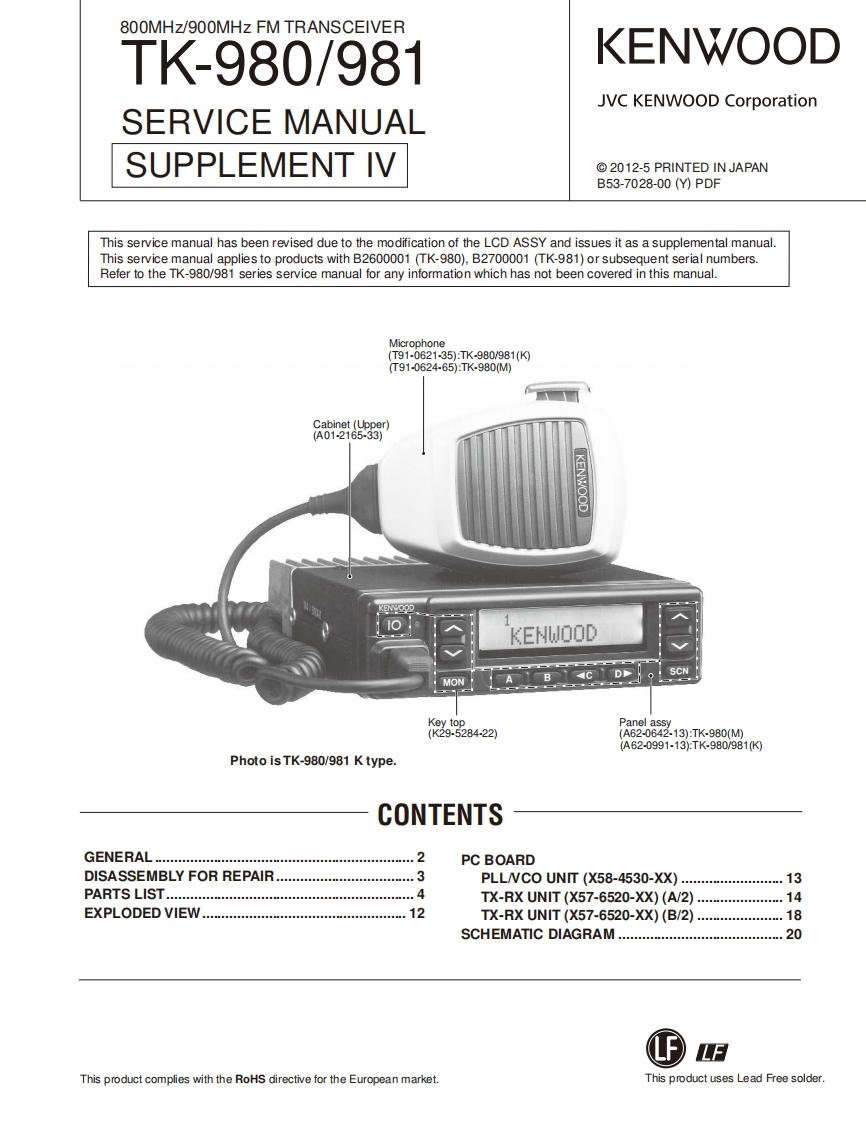

800MHz/900MHz FM TRANSCEIVERTK-980/981KENWOODJVC KENWOOD CorporationSERVICE MANUALSUPPLEMENT IV2012-5 PRINTED IN JAPANB53-7028-00Y)PDFThis service manual has been revised due to the modification of the LCD ASSY and issues it as a supplemental manual.This service manual applies to products with B2600001(TK-980),B2700001 (TK-981)or subsequent serial numbers.Refer to the TK-980/981 series service manual for any information which has not been covered in this manual.Microphone(T91-062135)TK980/981(3T91-0624-65):TK-980M0Cabinet(Upper）A01-2165-33)KENWOODKENWOODSCNMONKey top(K29-5284-22)32.13IK.98owA62-0991.13):TK-980/981(KPhoto is TK-980/981 K type.CONTENTSGENERAL2PC BOARDDISASSEMBLY FOR REPAIR.....................3PLLNVCO UNIT (X58-4530-XX)......PARTS.13TX-RX UNIT (X57-6520-XX)(A/2)....................14EXPLODED VIEW..12TX-RX UNIT(X57-6520-XX)(B/2).18SCHEMATIC DIAGRAM .........20LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.
