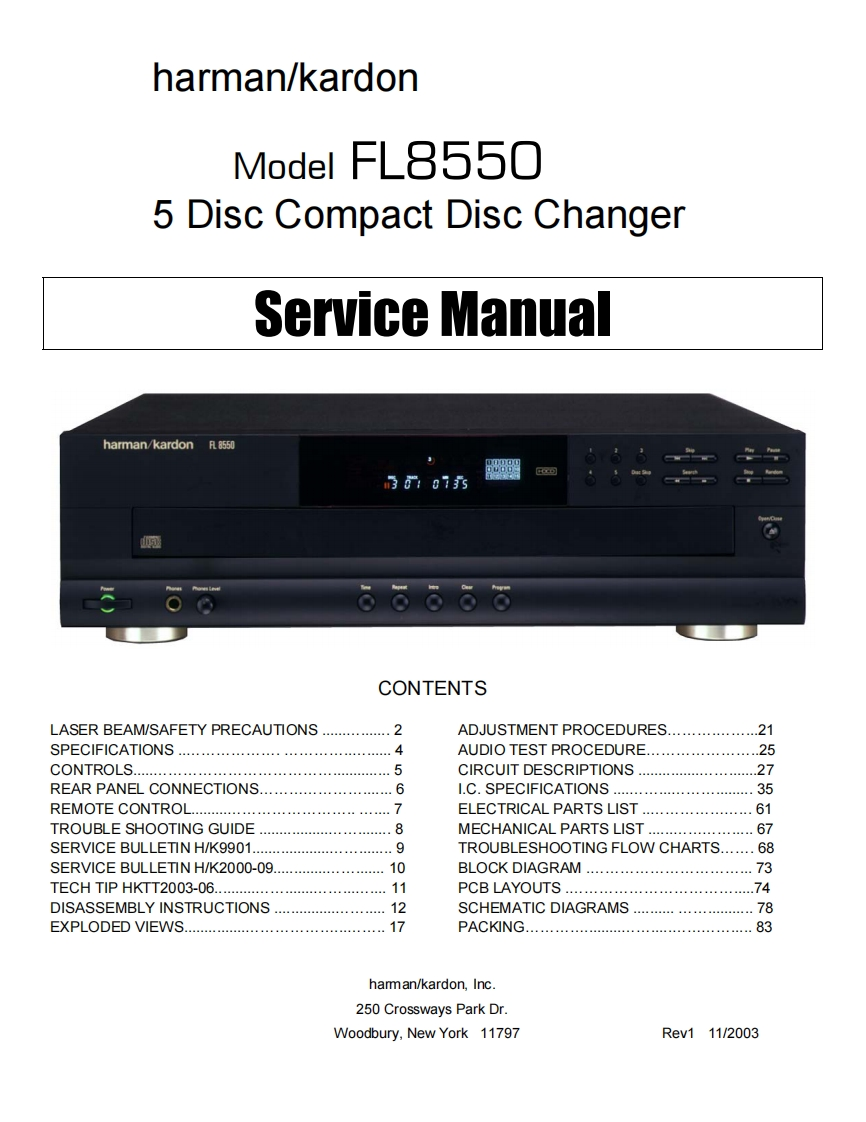

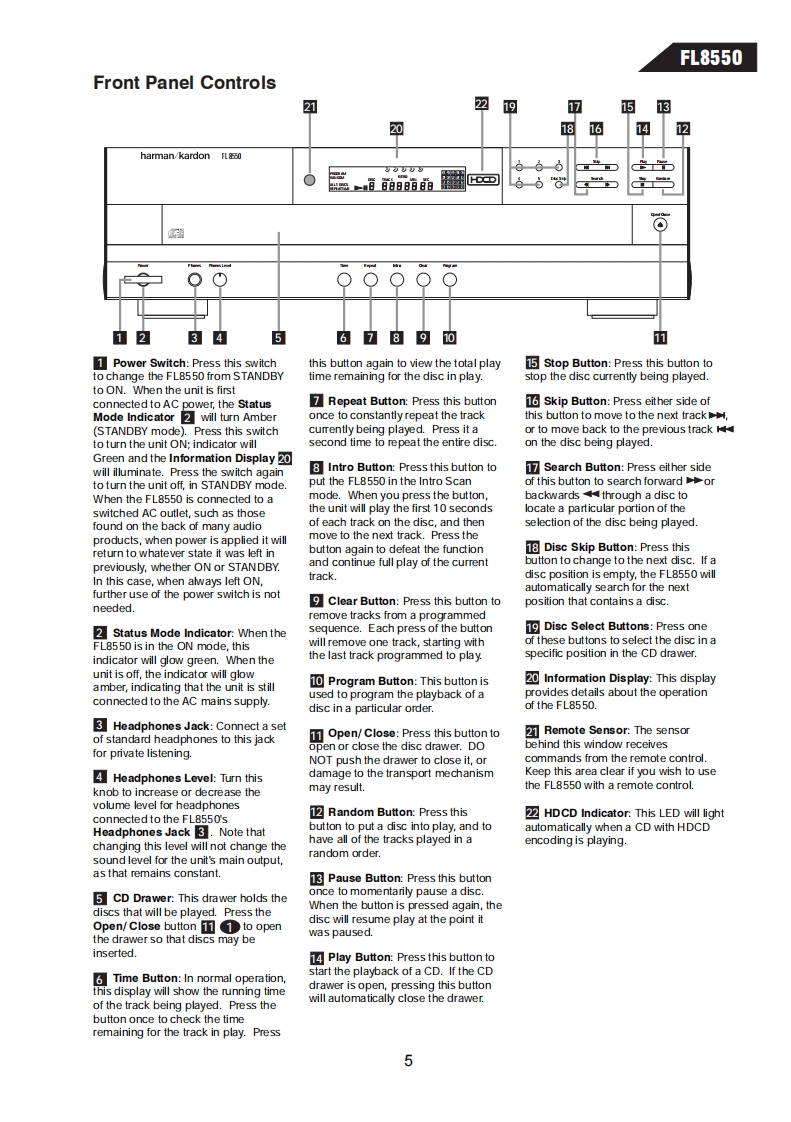

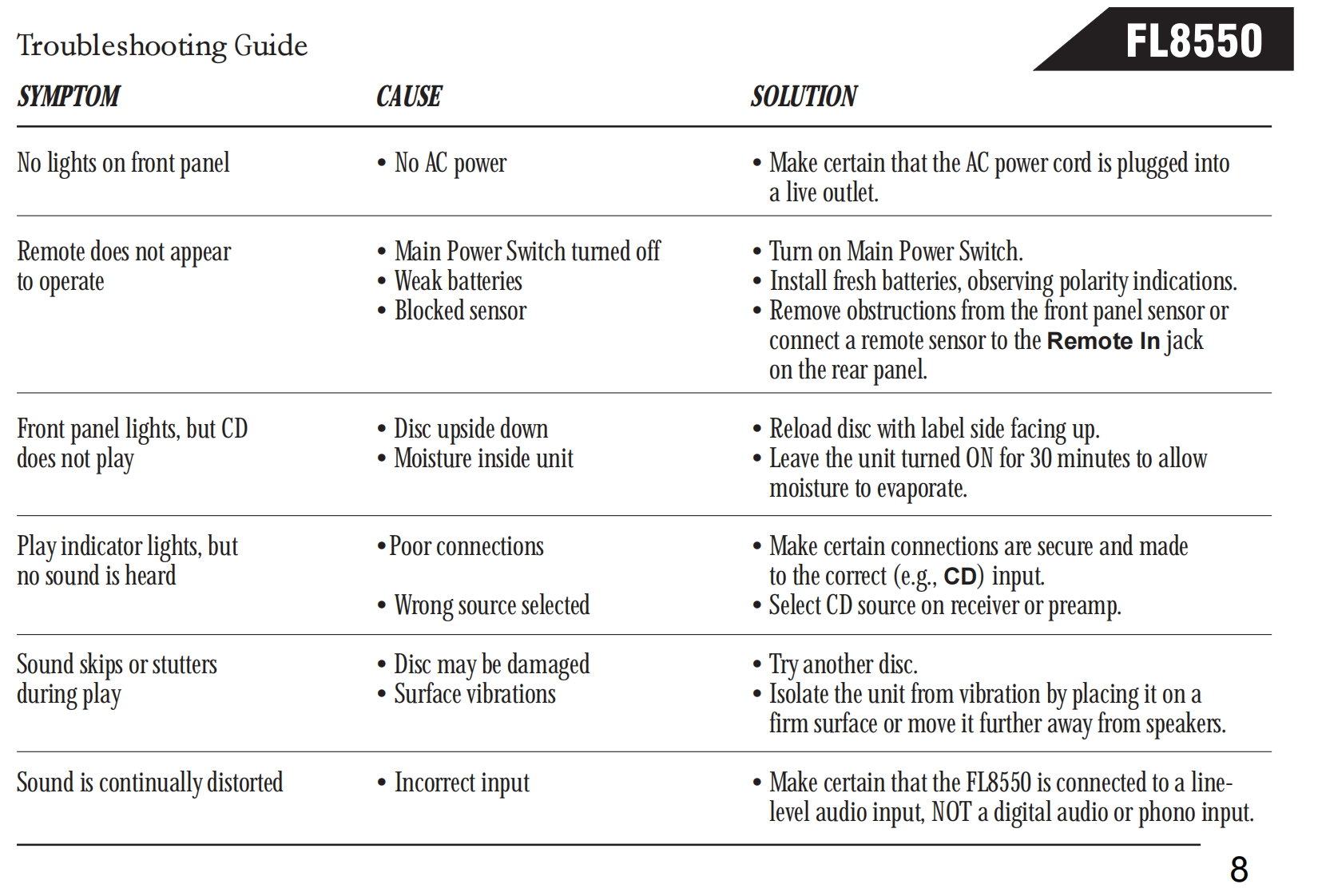

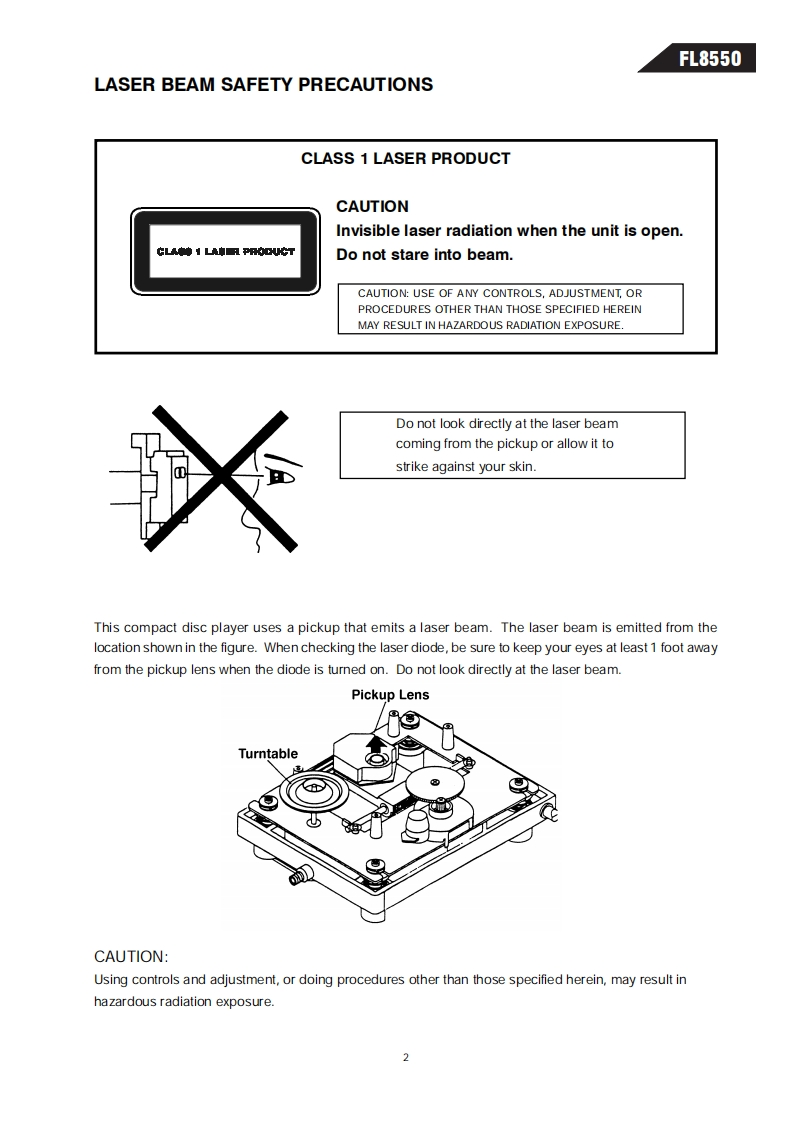

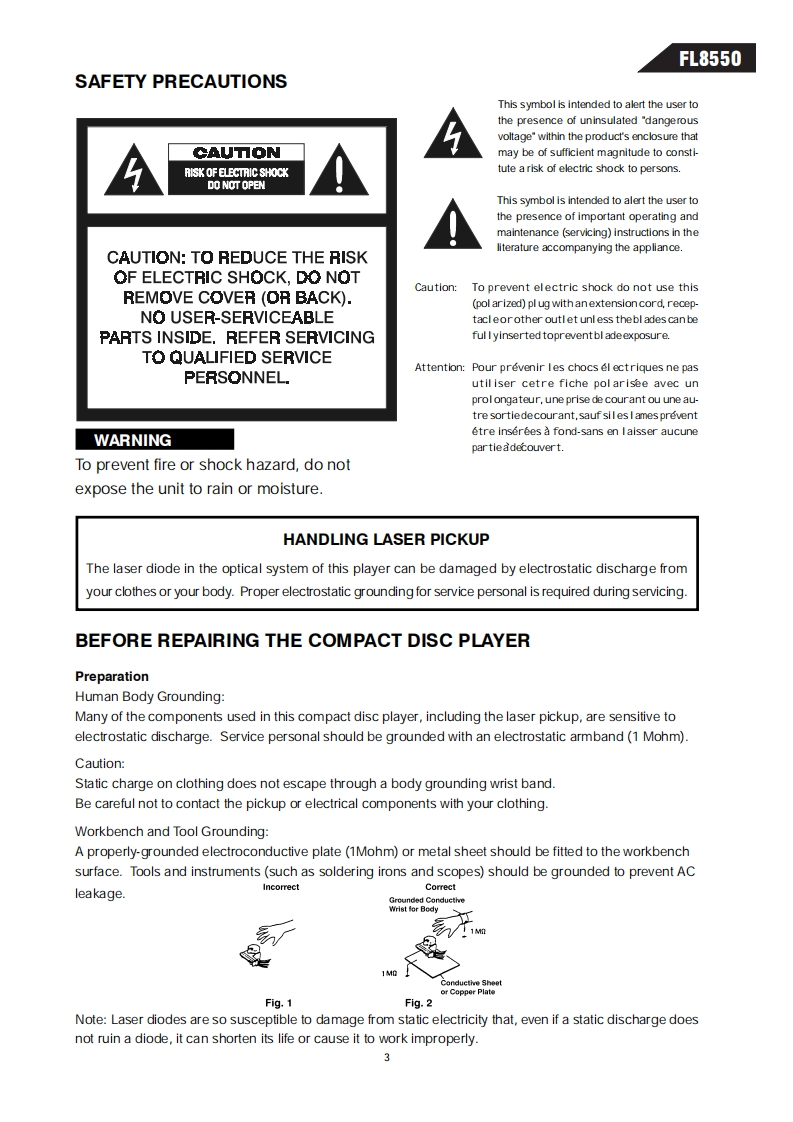

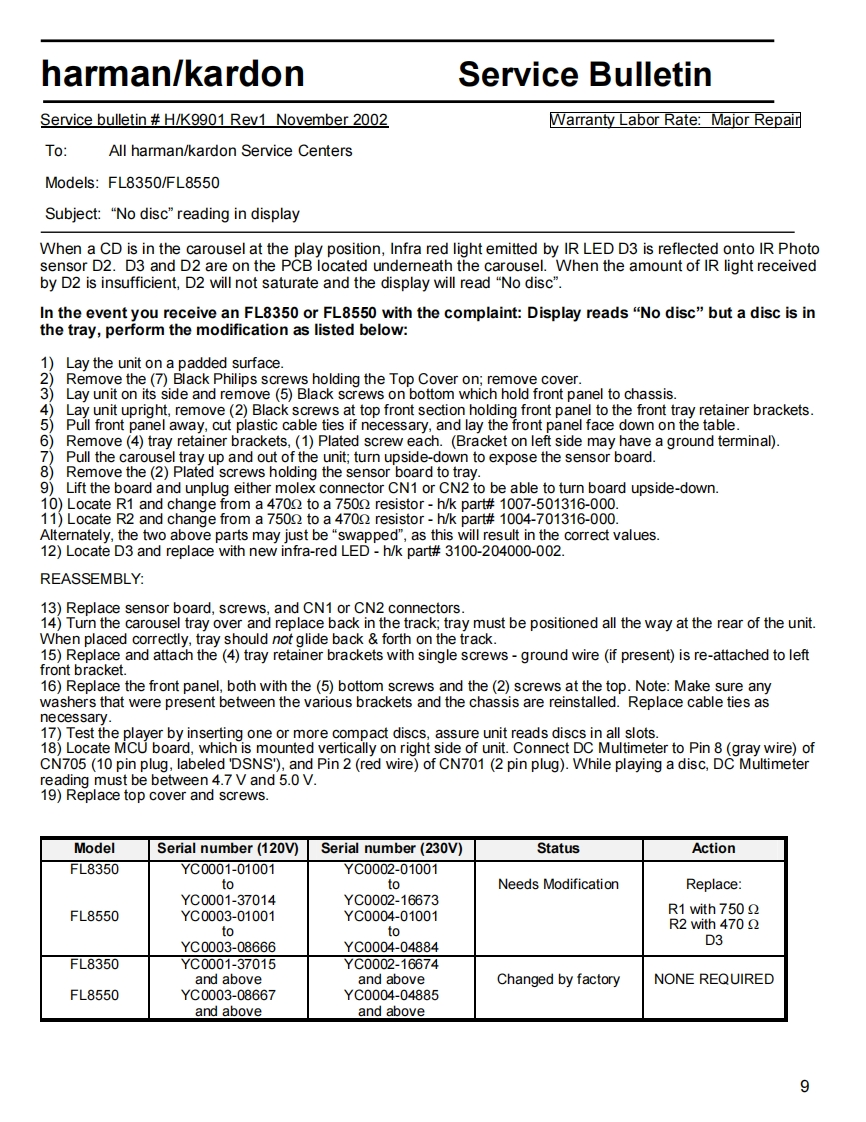

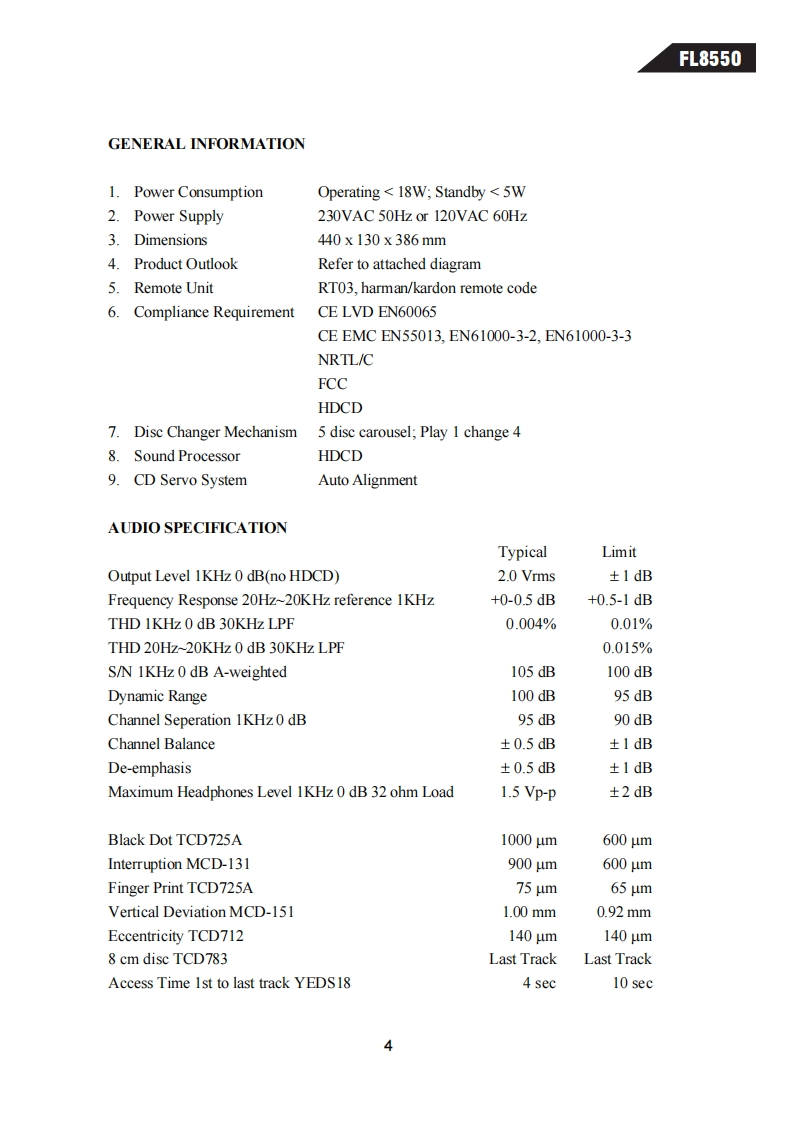

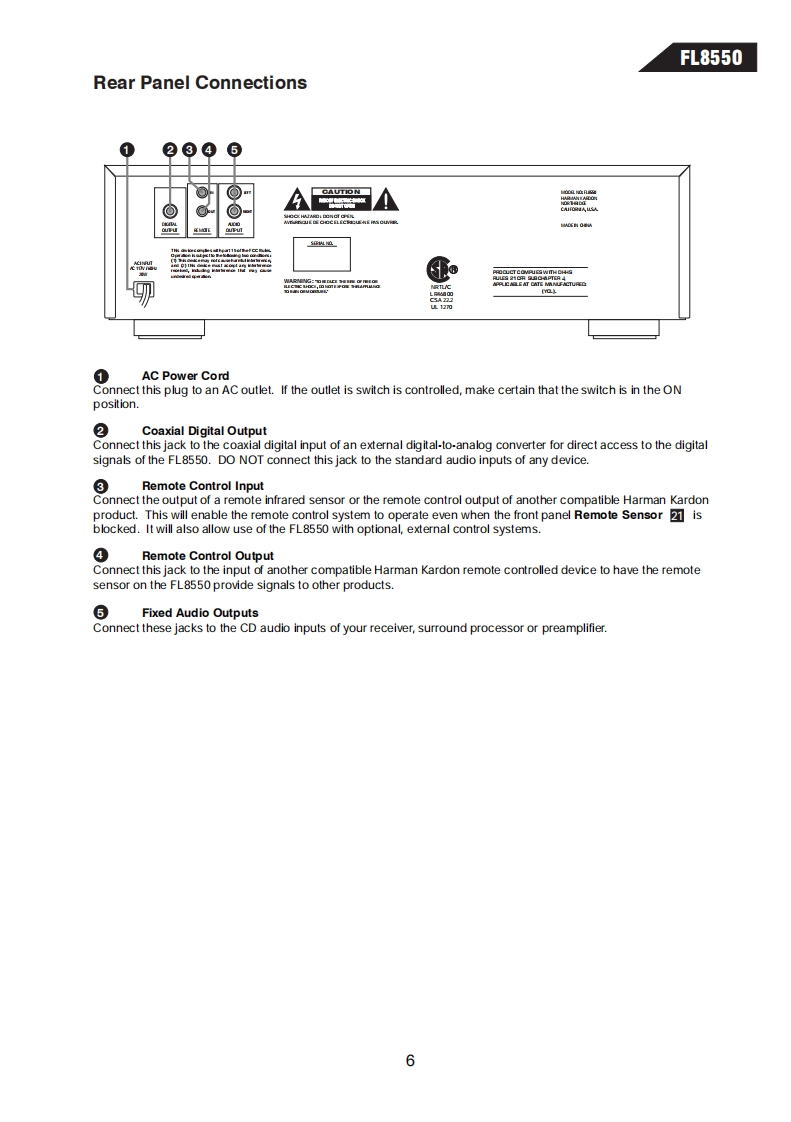

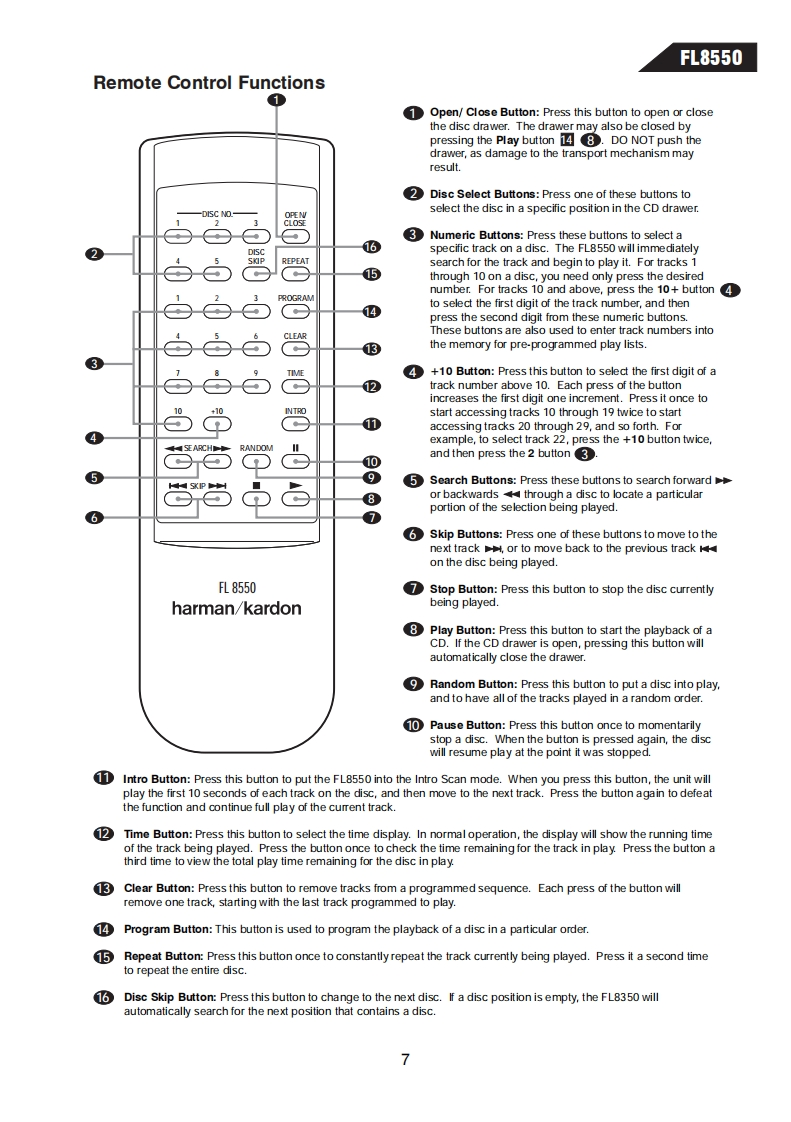

harman/kardonModel FL85505 Disc Compact Disc ChangerService Manualharman/kardon R85503:07务66608CONTENTSLASER BEAM/SAFETY PRECAUTIONS................2ADJUSTMENT PROCEDURES..SPECIFICATIONS.…4AUDIO TEST PROCEDURE......................25CONTROLS......5CIRCUIT DESCRIPTIONS.27REAR PANEL CONNECTIONS.............6I.C.SPECIFICATIONS.........35REMOTE CONTROL...7ELECTRICAL PARTS LIST ..................61TROUBLE SHOOTING GUIDE.......................8MECHANICAL PARTS LIST....................67SERVICE BULLETIN H/K9901......................9TROUBLESHOOTING FLOW CHARTS.......68SERVICE BULLETIN H/K2000-09.10BLOCK DIAGRAM..........................73TECH TIP HKTT2003-06..........11PCB LAYOUTS .........DISASSEMBLY INSTRUCTIONS...................74SCHEMATIC DIAGRAMS............78EXPLODED VIEWS.…17PACKING..83haman/kardon,Inc.250 Crossways Park Dr.Woodbury,New York 11797Rev111/2003
