Mackie_CR1604-VLZ_Service_Manual维修服务手册含电器原理图_-_Schematic电器原理图s

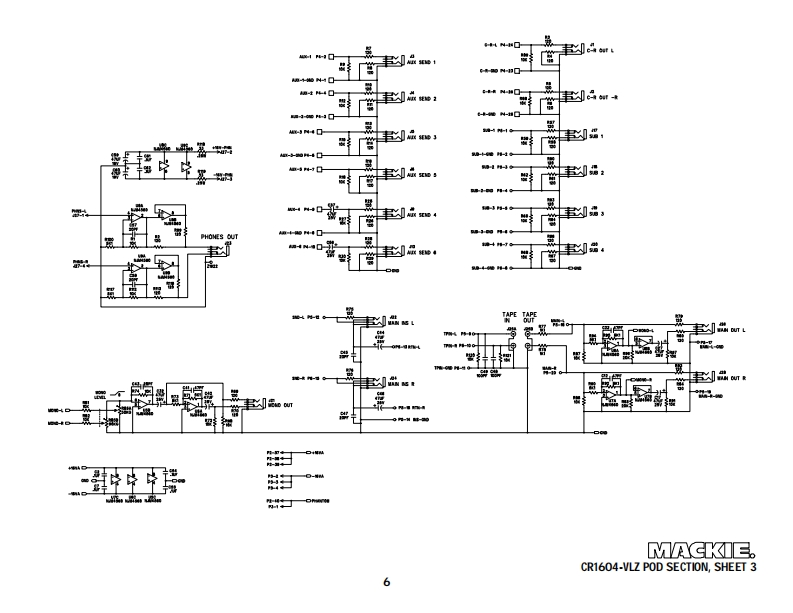

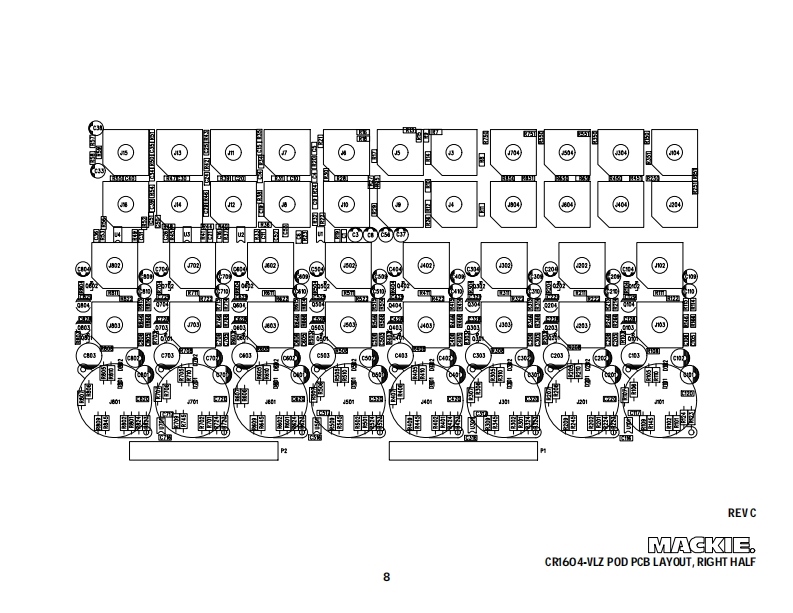

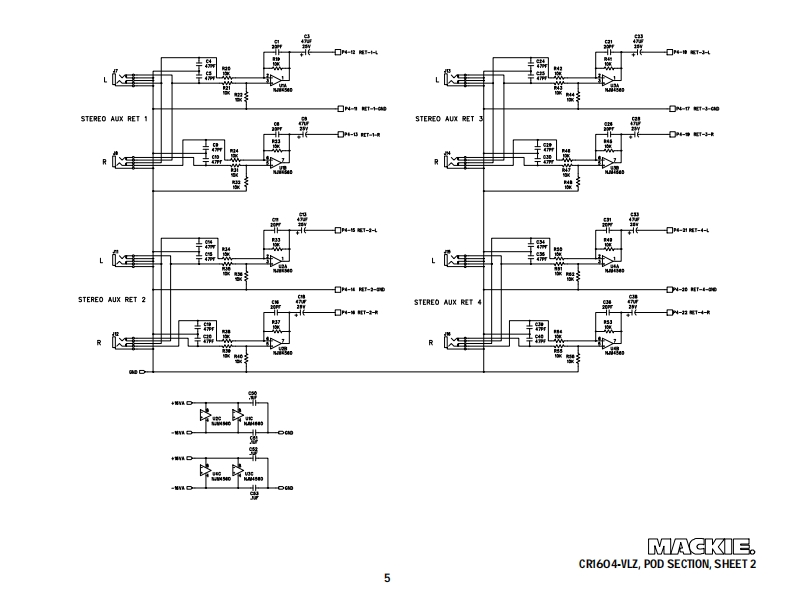

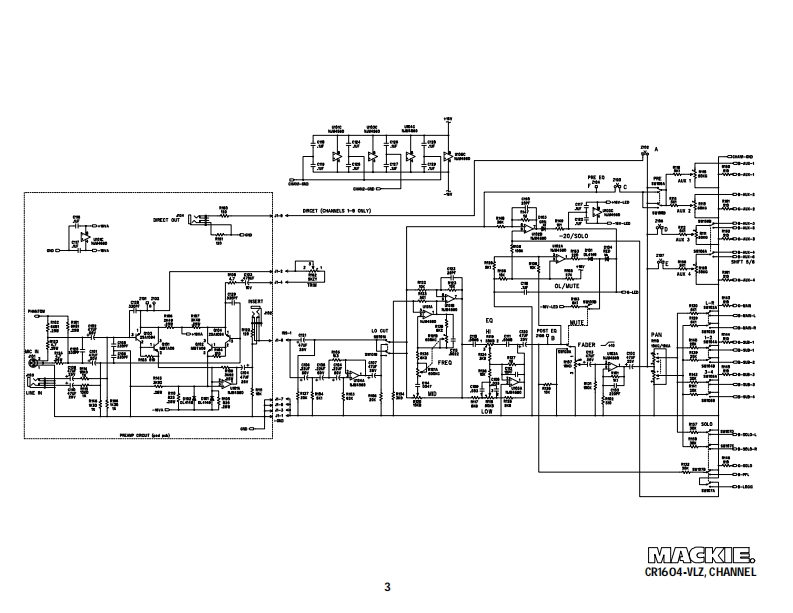

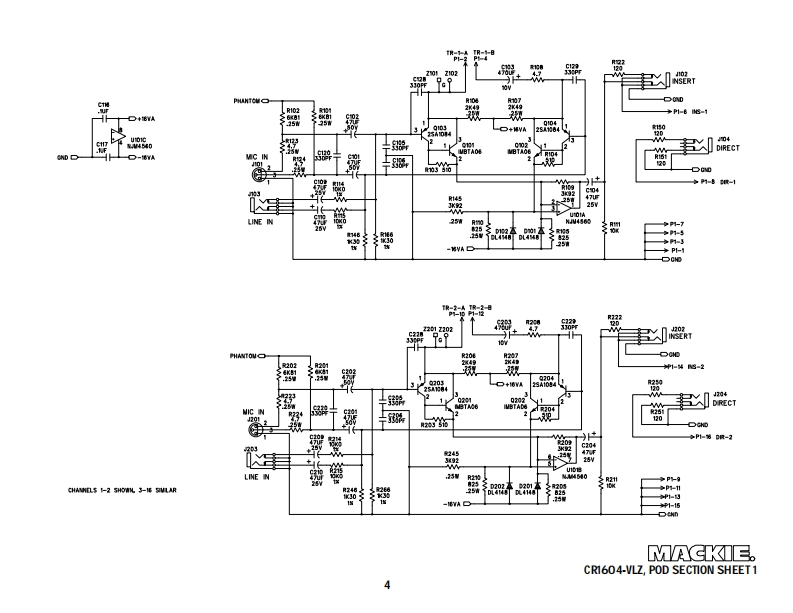

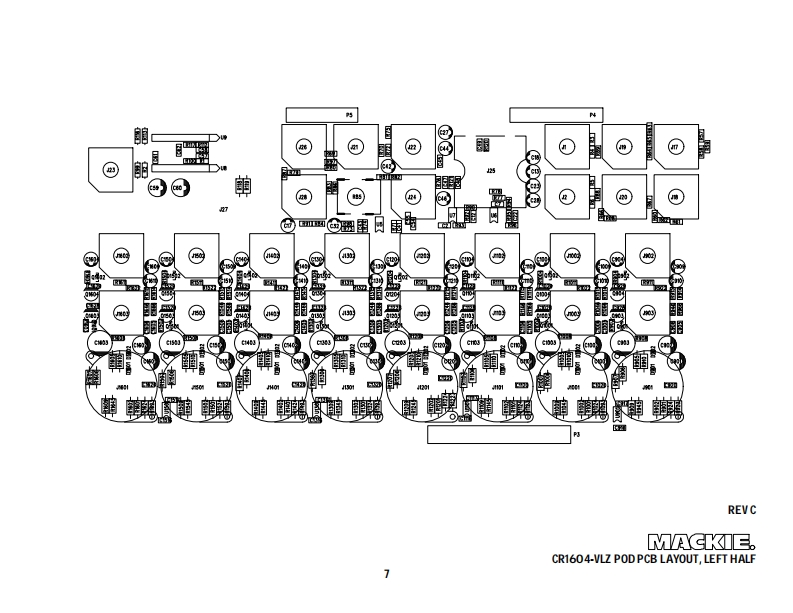

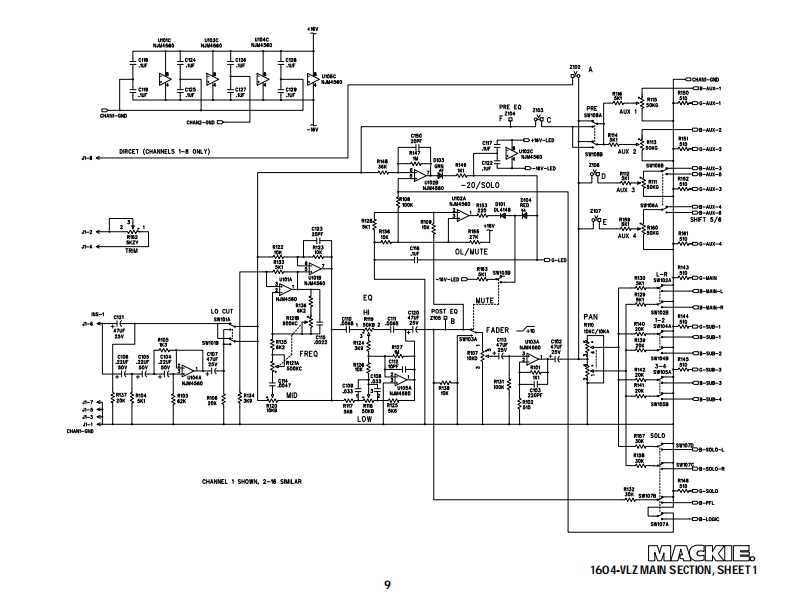

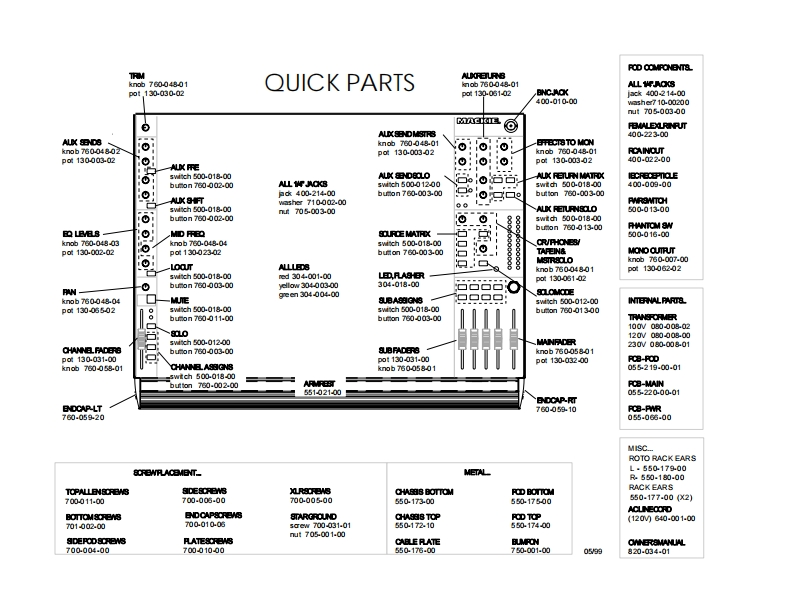

Go To Bulletins1604-VLZ"16 CHANNEL MIC/LINE MIXERSERVICE MANUALContentsPg.Quick PartsBlock DiagramClick on any item toChannel Schematic3open that pagePod Section Schematics4-6Pod Section PCB Layout7-8Main Section Schematics9-14Main Section PCB Layout15Jumper Location and Pinout16Power Supply17MACKIE DESIGNS INC.,16220 WOOD-RED ROAD,WOODINVILLE,WA 98072,USA820-172-0005/99HOME
