陕汽重卡Shacman-X5000-inverter-power-supply

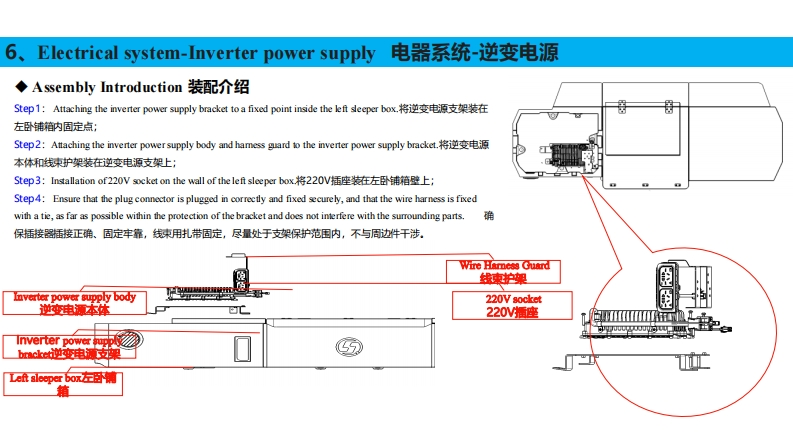

6.Electrical system-Inverter power supply电器系统-逆变电源◆Assembly Introduction装配介绍Step1:Attaching the inverter power supply bracket to a fixed point inside the left sleeper box.将逆变电源支架装在左卧铺箱内固定点；Step2:Attaching the inverter power supply body and hamess guard to the inverter power supply bracket..将i逆变电源本体和线束护架装在逆变电源支架上；Step3:Installation of220 Vsocket on the wall of the left sleeper box.将220V插座装在左卧铺箱壁上；Step4:Ensure that the plug connector is plugged in correctly and fixed securely,and that the wire harness is fixedwith a tie,as far as possible within the protection of the bracket and does not interfere with the surrounding parts.确保插接器插接正确、固定牢靠，线辣用带固定，尽量处于支架保护范围内，不与周边件干涉。Wire Hamness Guard线速护架l面verter power supply bo女FyuwnD220V socket逆变电源本体220插座Inverter powerbracketi逆变电源支擦47Lcta6sper6bo左日
