松下DMR-EH55维修手册

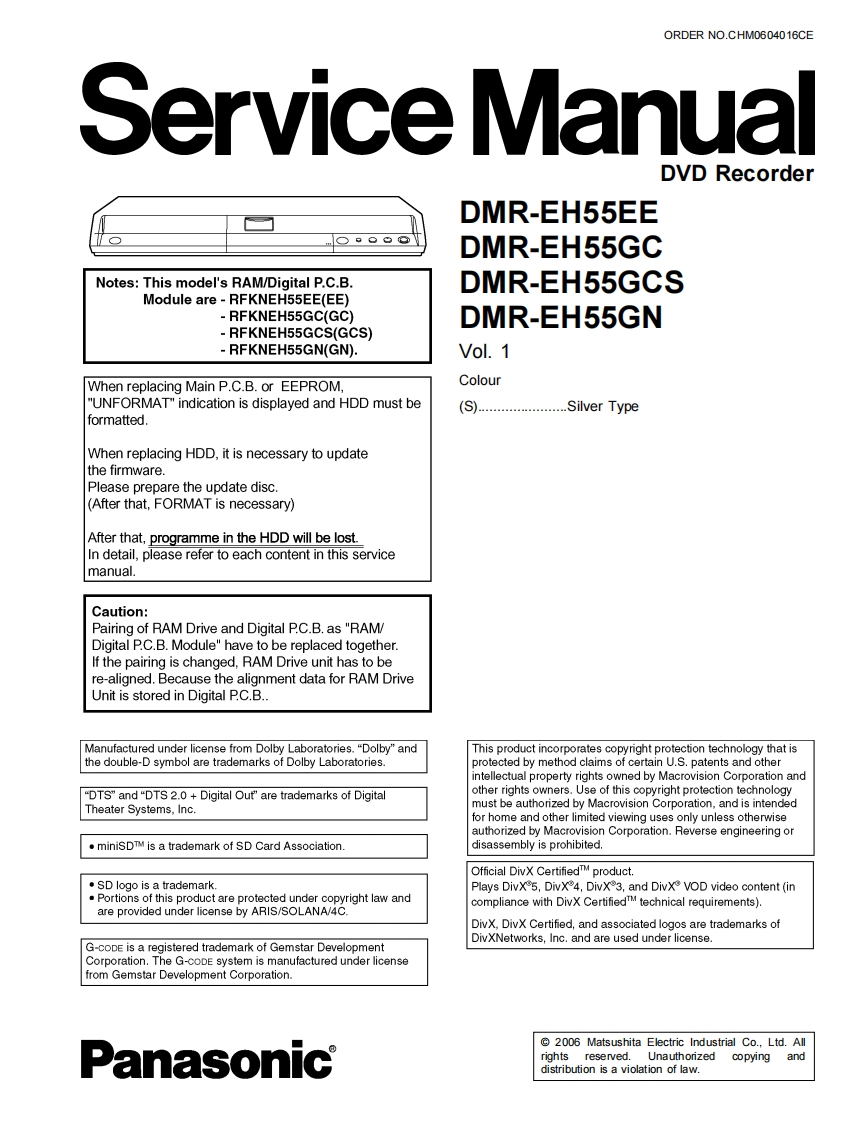

ORDER NO.CHM0604016CEService ManualDVD RecorderDMR-EH55EE○oo9oDMR-EH55GCNotes:This model's RAM/Digital P.C.B.DMR-EH55GCSModule are-RFKNEH55EE(EE)RFKNEH55GC(GC)DMR-EH55GN-RFKNEH55GCS(GCS)-RFKNEH55GN(GN).Vol.1When replacing Main P.C.B.or EEPROM,Colour"UNFORMAT"indication is displayed and HDD must be(S).Sjlver Typeformatted.When replacing HDD,it is necessary to updatethe firmware.Please prepare the update disc.(After that,FORMAT is necessary)After that,programme in the HDD will be lost.In detail,please refer to each content in this servicemanual.Caution:Pairing of RAM Drive and Digital P.C.B.as "RAM/Digital P.C.B.Module"have to be replaced together.If the pairing is changed,RAM Drive unit has to bere-aligned.Because the alignment data for RAM DriveUnit is stored in Digital P.C.B..Manufactured under license from Dolby Laboratories."Dolby"andThis product incorporates copyright protection technology that isthe double-D symbol are trademarks of Dolby Laboratories.protected by method claims of certain U.S.patents and otherintellectual property rights owned by Macrovision Corporation and"DTS"and"DTS 2.0+Digital Out"are trademarks of Digitalother rights owners.Use of this copyright protection technologyTheater Systems,Inc.must be authorized by Macrovision Corporation,and is intendedfor home and other limited viewing uses only unless otherwiseauthorized by Macrovision Corporation.Reverse engineering orminiSDTM is a trademark of SD Card Association.disassembly is prohibited.Official DivX CertifiedTM product.·SD logo is a trademark.Plays DivX5,DivX4,DivX3,and DivX VOD video content (inPortions of this product are protected under copyright law andcompliance with DivX CertifiedTM technical requirements).are provided under license by ARIS/SOLANA/4C.DivX,DivX Certified,and associated logos are trademarks ofDivXNetworks,Inc.and are used under license.G-CoDE is a registered trademark of Gemstar DevelopmentCorporation.The G-CoDE system is manufactured under licensefrom Gemstar Development Corporation.Panasonic2006 Matsushita Electric Industrial Co.,Ltd.Allrights reserved.Unauthorized copying anddistribution is a violation of law.
