松下DMR-EH57GN维修手册

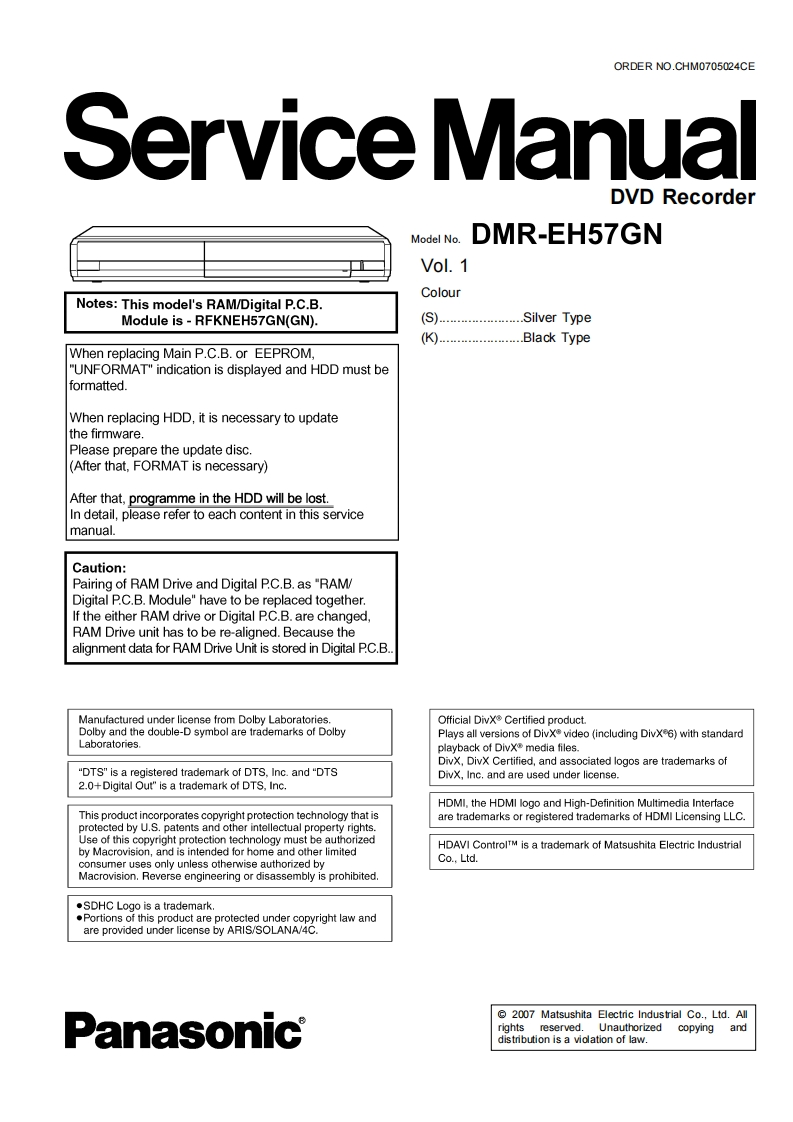

ORDER NO.CHM0705024CEService ManualDVD RecorderModel No.DMR-EH57GNVol.1ColourNotes:This model's RAM/Digital P.C.B.Module is-RFKNEH57GN(GN).(S).Silver Type(K).Black TypeWhen replacing Main P.C.B.or EEPROM,'UNFORMAT"indication is displayed and HDD must beformatted.When replacing HDD,it is necessary to updatethe firmware.Please prepare the update disc.(After that,FORMAT is necessary)After that,programme in the HDD will be lost.In detail,please refer to each content in this servicemanual.Caution:Pairing of RAM Drive and Digital PC.B.as "RAM/Digital P.C.B.Module"have to be replaced together.If the either RAM drive or Digital P.C.B.are changed,RAM Drive unit has to be re-aligned.Because thealignment data for RAM Drive Unit is stored in Digital PC.B.Manufactured under license from Dolby Laboratories.Official DivX Certified product.Dolby and the double-D symbol are trademarks of DolbyPlays all versions of DivXe video (including DivXe6)with standardLaboratories.playback of DivX media files.DivX,DivX Certified,and associated logos are trademarks of'DTS"is a registered trademark of DTS.Inc.and "DTSDivX,Inc.and are used under license.2.0+Digital Out"is a trademark of DTS,Inc.HDMI,the HDMI logo and High-Definition Multimedia InterfaceThis product incorporates copyright protection technology that isare trademarks or registered trademarks of HDMI Licensing LLCprotected by U.S.patents and other intellectual property rights.Use of this copyright protection technology must be authorizedHDAVI ControlTM is a trademark of Matsushita Electric Industrialby Macrovision,and is intended for home and other limitedconsumer uses only unless otherwise authorized byCo.,Ltd.Macrovision.Reverse engineering or disassembly is prohibited..SDHC Logo is a trademark..Portions of this product are protected under copyright law andare provided under license by ARIS/SOLANA/4C.Panasonic2007 Matsushita Electric Industrial Co.,Ltd.Allrights reserved.Unauthorized copyinganddistribution is a violation of law.
