松下DMR-EH65维修手册

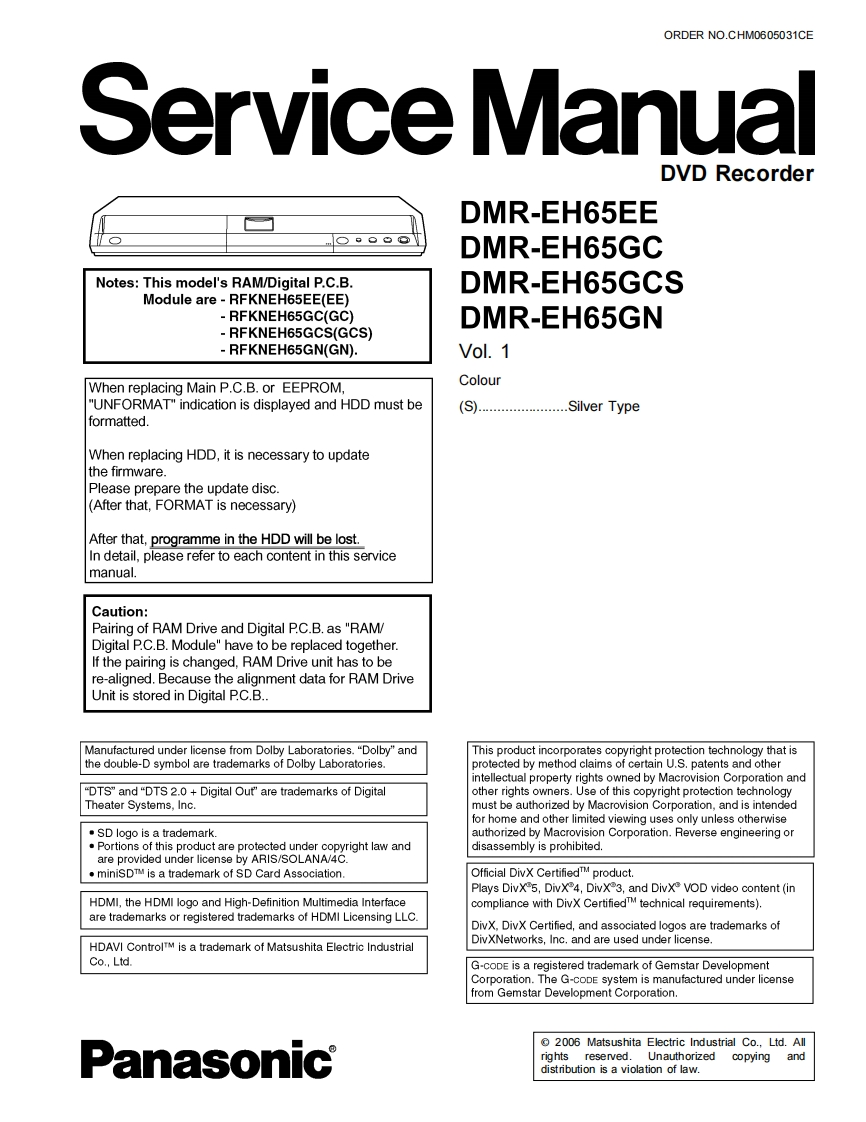

ORDER NO.CHM0605031CEService ManualDVD RecorderDMR-EH65EE○oo9oDMR-EH65GCNotes:This model's RAM/Digital P.C.B.DMR-EH65GCSModule are-RFKNEH65EE(EE)RFKNEH65GC(GC)DMR-EH65GN-RFKNEH65GCS(GCS)-RFKNEH65GN(GN).Vol.1When replacing Main P.C.B.or EEPROM,Colour"UNFORMAT"indication is displayed and HDD must be(S).Silver Typeformatted.When replacing HDD,it is necessary to updatethe firmware.Please prepare the update disc.(After that,FORMAT is necessary)After that,programme in the HDD will be lost.In detail,please refer to each content in this servicemanual.Caution:Pairing of RAM Drive and Digital P.C.B.as "RAM/Digital P.C.B.Module"have to be replaced together.If the pairing is changed,RAM Drive unit has to bere-aligned.Because the alignment data for RAM DriveUnit is stored in Digital P.C.B..Manufactured under license from Dolby Laboratories."Dolby"andThis product incorporates copyright protection technology that isthe double-D symbol are trademarks of Dolby Laboratories.protected by method claims of certain U.S.patents and otherintellectual property rights owned by Macrovision Corporation and"DTS"and "DTS 2.0+Digital Out"are trademarks of Digitalother rights owners.Use of this copyright protection technologyTheater Systems,Inc.must be authorized by Macrovision Corporation,and is intendedfor home and other limited viewing uses only unless otherwise.SD logo is a trademark.authorized by Macrovision Corporation.Reverse engineering orPortions of this product are protected under copyright law anddisassembly is prohibited.are provided under license by ARIS/SOLANA/4C..miniSDTM is a trademark of SD Card Association.Official DivX CertifiedTM product.Plays DivX 5,DivX24,DivX23,and DivX VOD video content (inHDMI,the HDMI logo and High-Definition Multimedia Interfacecompliance with DivX CertifiedTM technical requirements).are trademarks or registered trademarks of HDMI Licensing LLC.DivX.DivX Certified,and associated logos are trademarks ofHDAVI ControlTM is a trademark of Matsushita Electric IndustrialDivXNetworks,Inc.and are used under license.Co.,Ltd.G-CODE is a registered trademark of Gemstar DevelopmentCorporation.The G-coDE system is manufactured under licensefrom Gemstar Development Corporation.Panasonic2006 Matsushita Electric Industrial Co.,Ltd.Allrights reserved.Unauthorized copying anddistribution is a violation of law.
