松下DMR-EH59维修手册

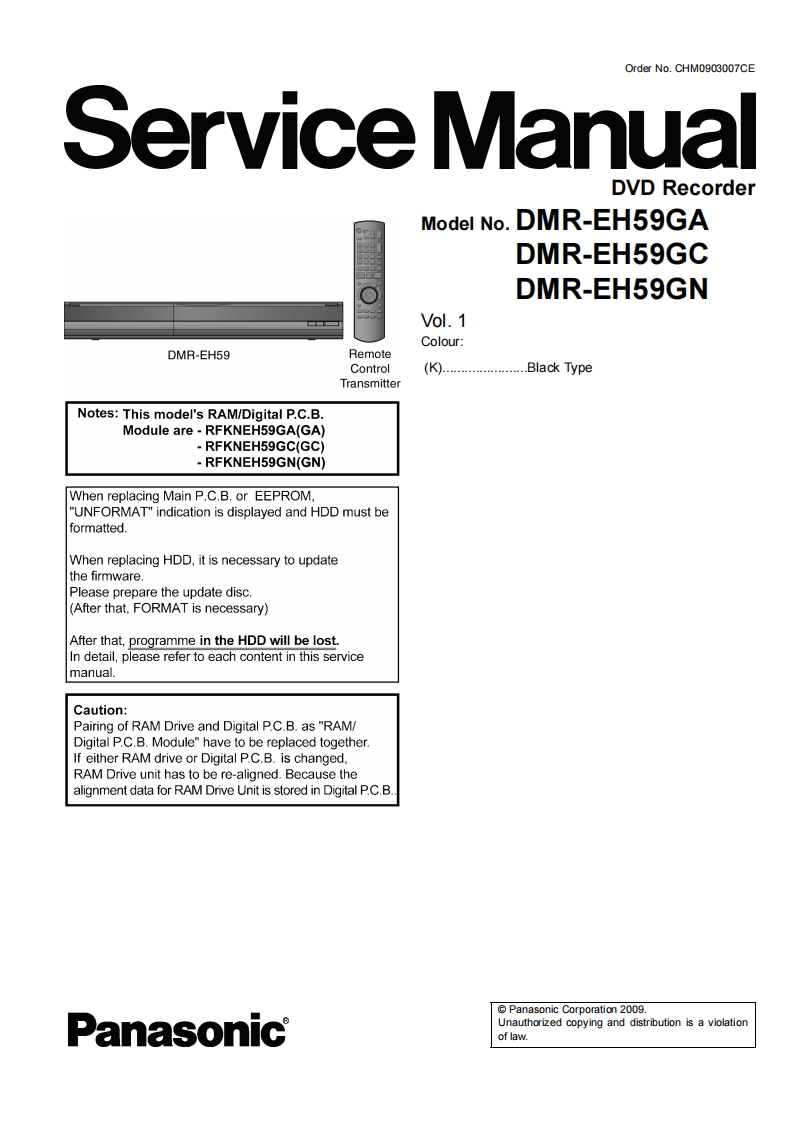

Order No.CHM0903007CEService ManuaDVD RecorderModel No.DMR-EH59GADMR-EH59GCDMR-EH59GNVol.1Colour:DMR-EH59RemoteControl(K)Black TypeTransmitterNotes:This model's RAM/Digital P.C.B.Module are-RFKNEH59GA(GA)-RFKNEH59GC(GC)-RFKNEH59GN(GN)When replacing Main P.C.B.or EEPROM,'UNFORMAT"indication is displayed and HDD must beformatted.When replacing HDD,it is necessary to updatethe firmware.Please prepare the update disc.(After that,FORMAT is necessary)After that,programme in the HDD will be lost.In detail.please refer to each content in this servicemanual.Caution:Pairing of RAM Drive and Digital P.C.B.as "RAM/Digital P.C.B.Module"have to be replaced together.If either RAM drive or Digital P.C.B.is changed.RAM Drive unit has to be re-aligned.Because thealignment data for RAM Drive Unit is stored in Digital P.C.B.Panasonic Corporation 2009.PanasonicUnauthorized copying and distribution is a violationof law.
