松下H-FS100300维修手册

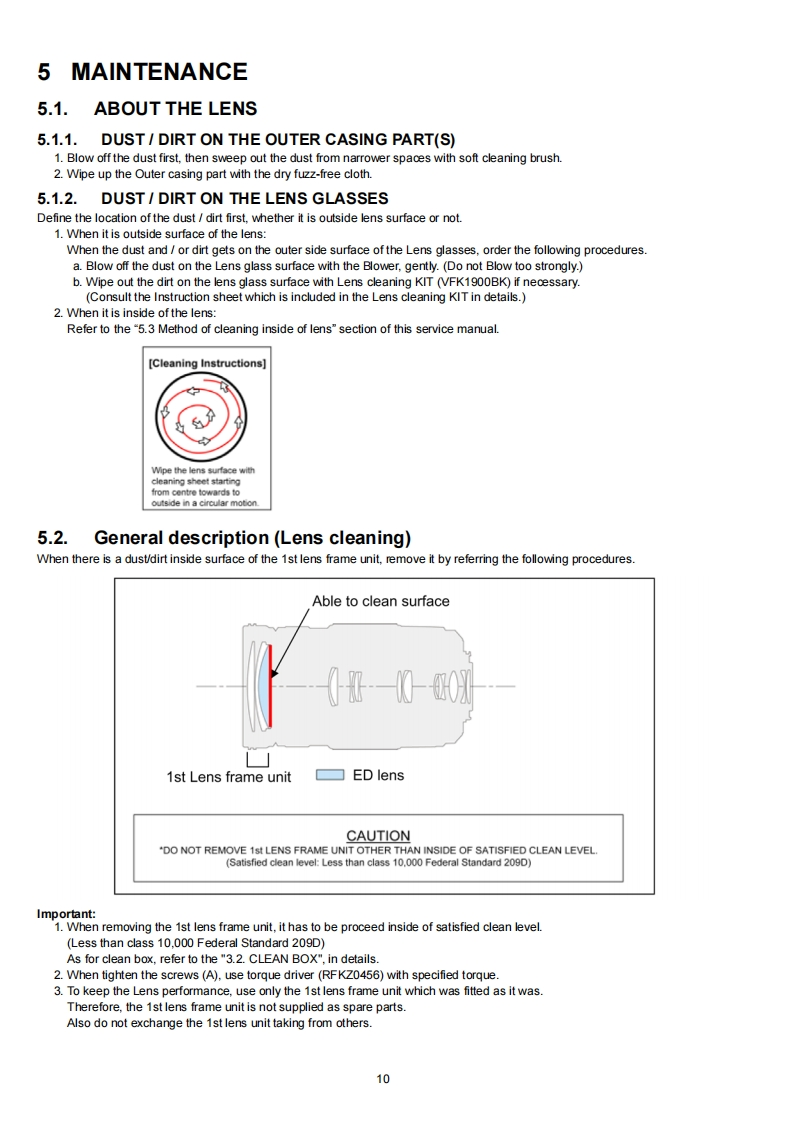

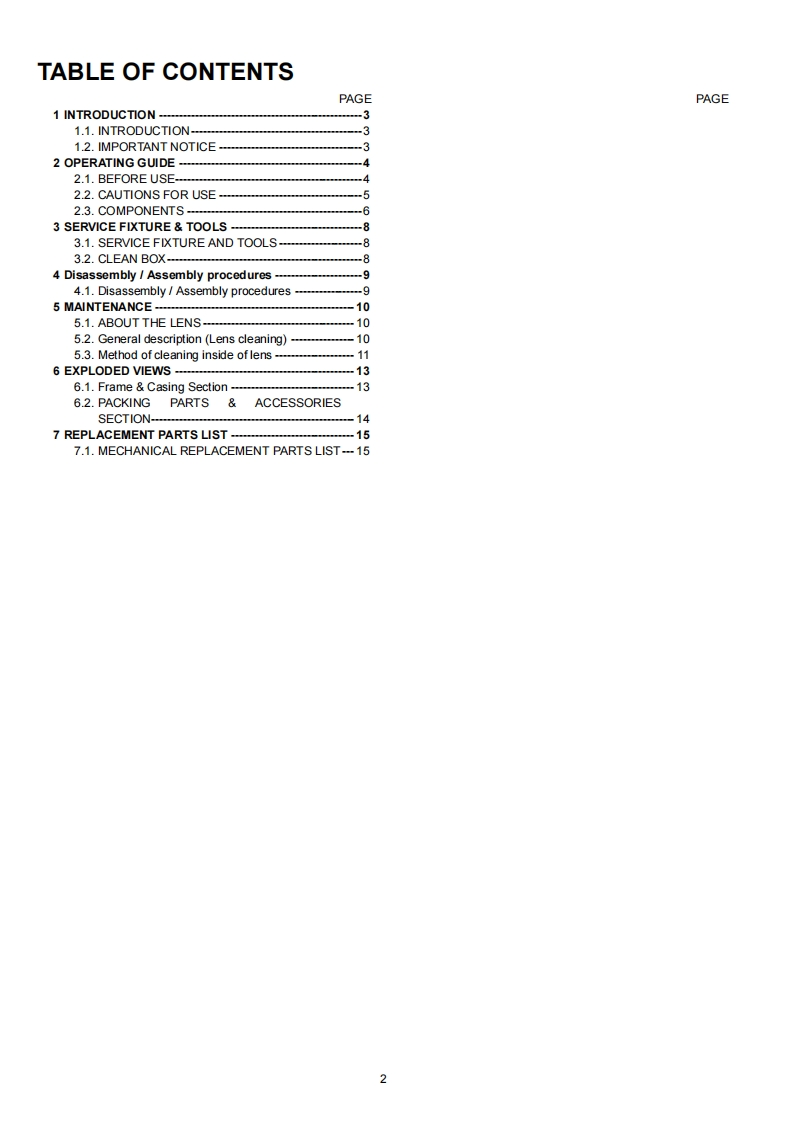

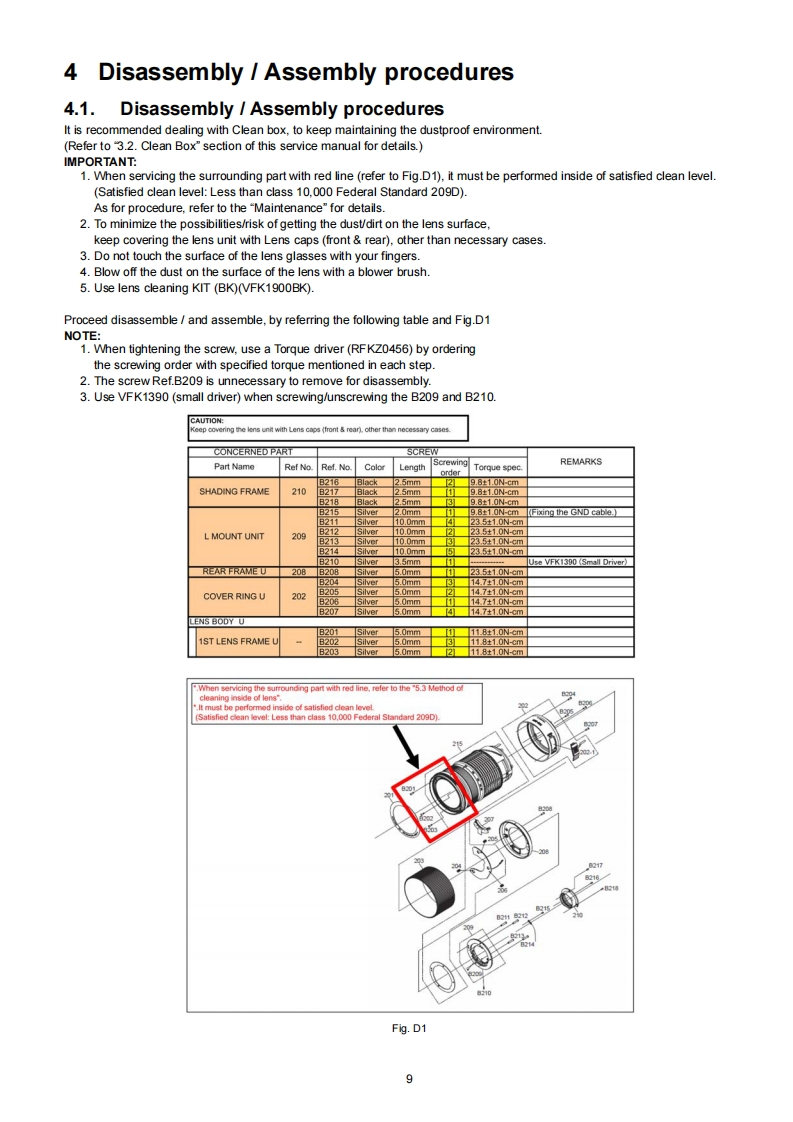

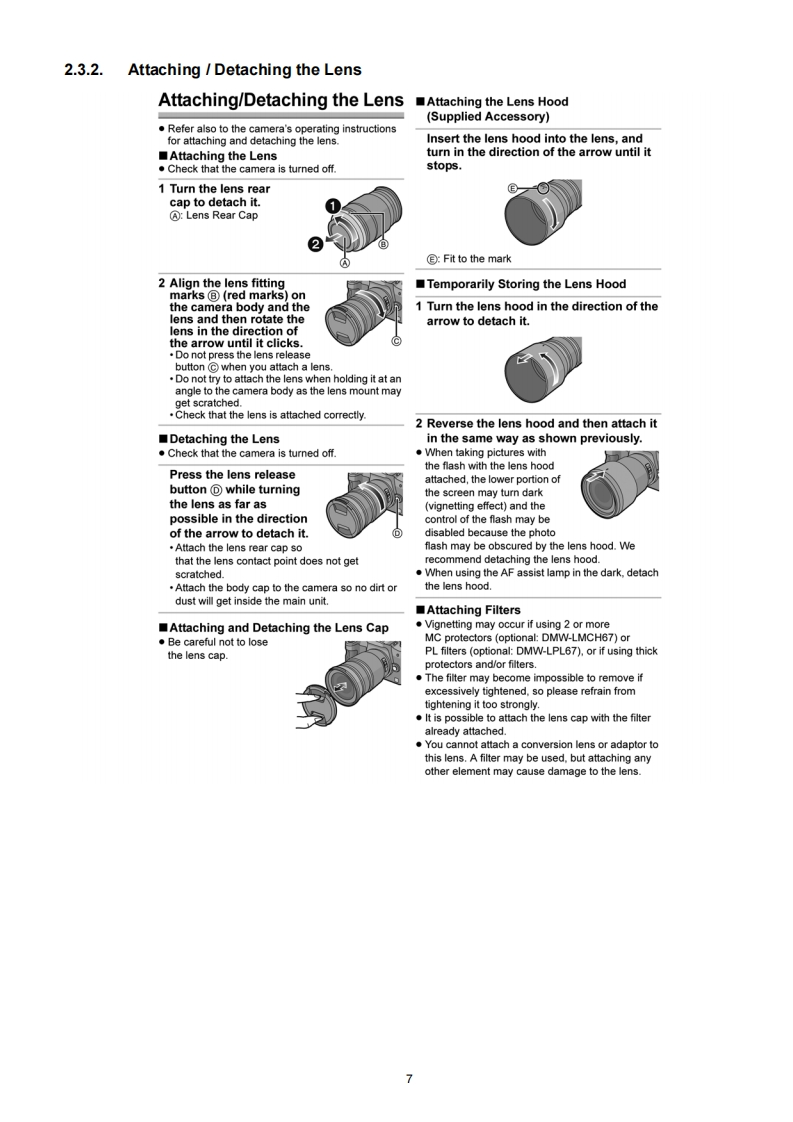

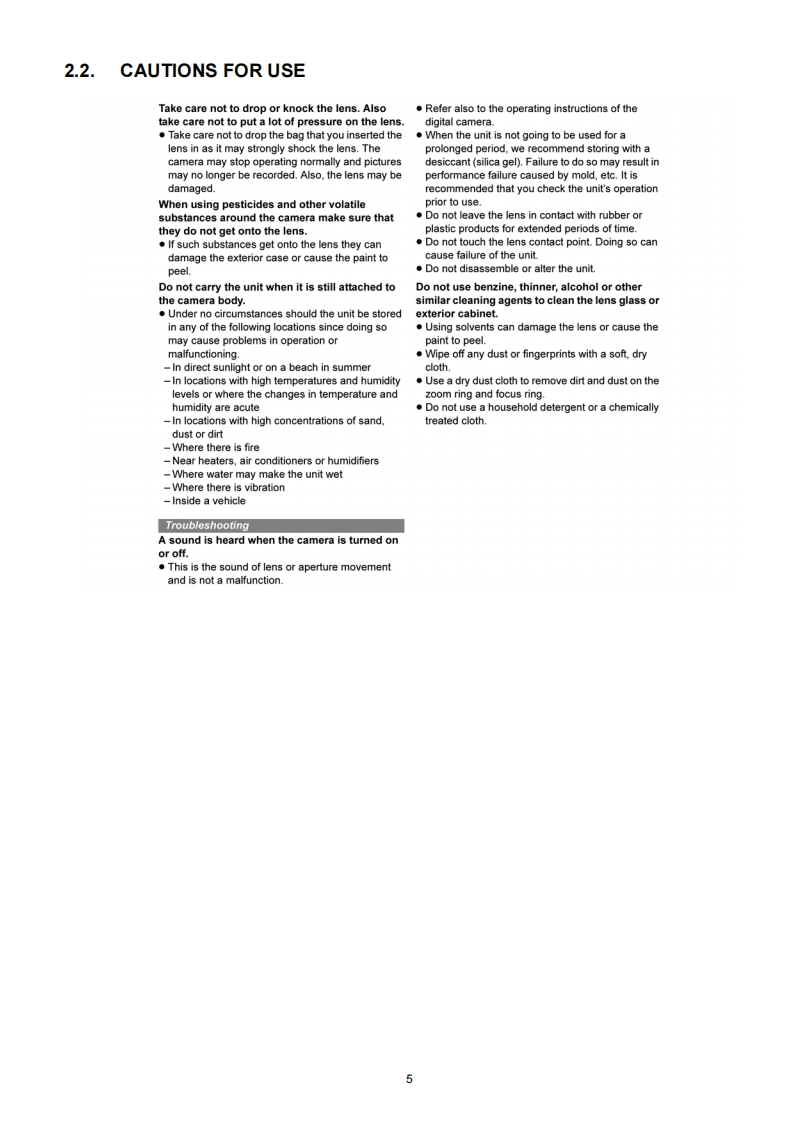

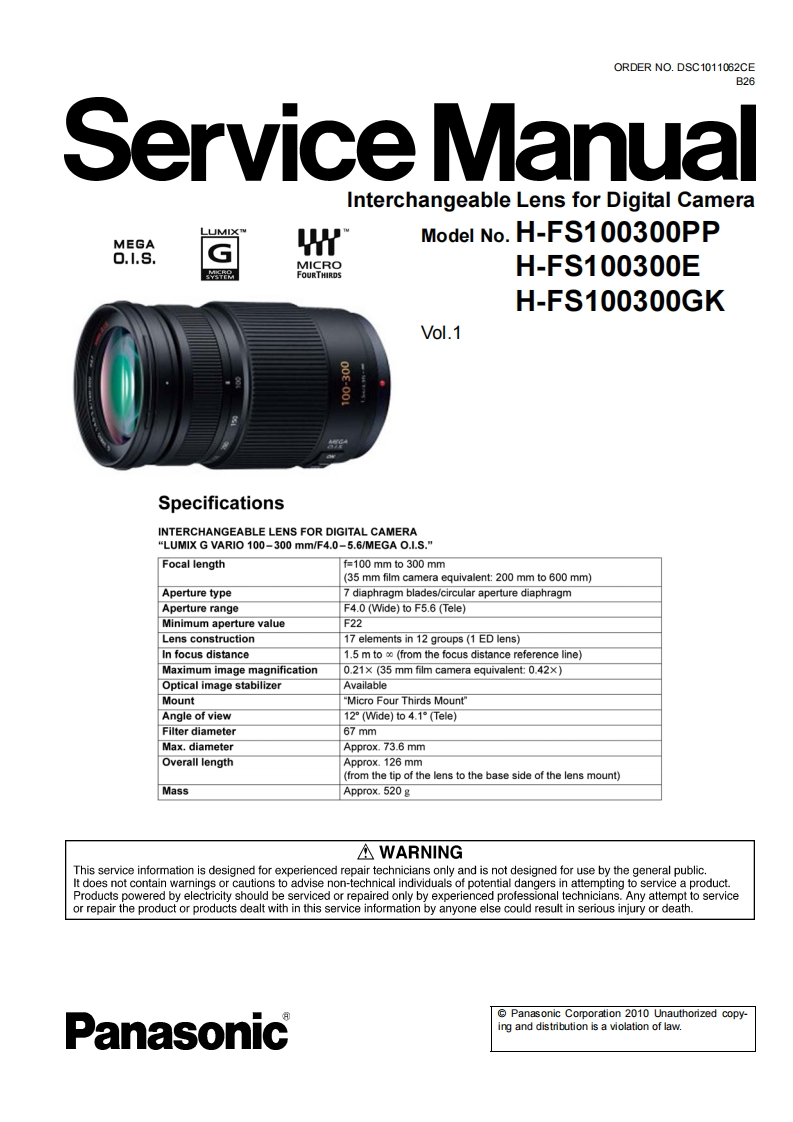

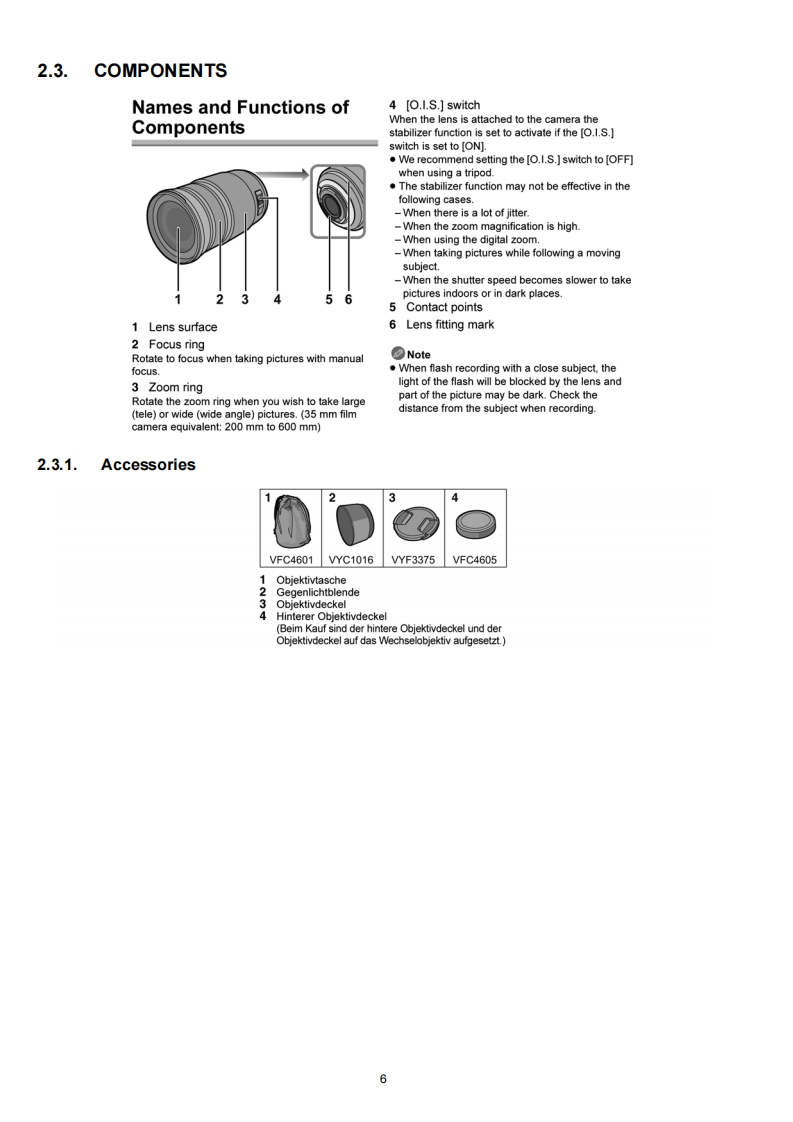

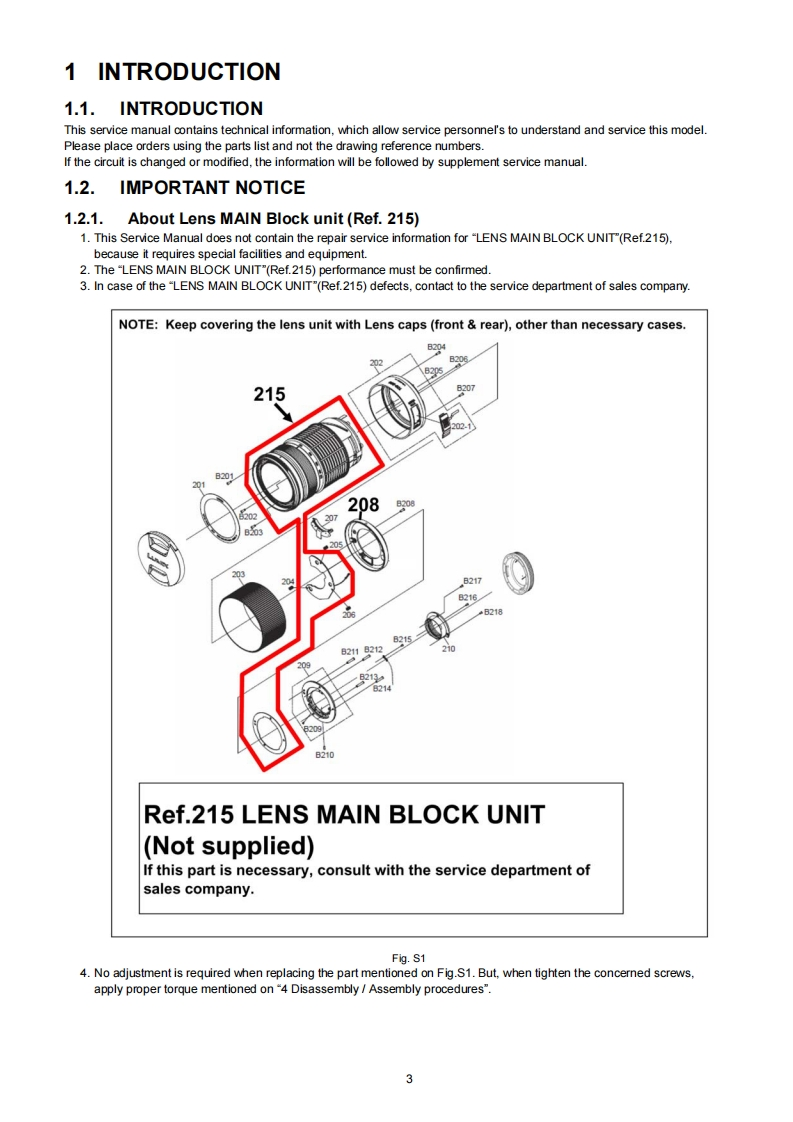

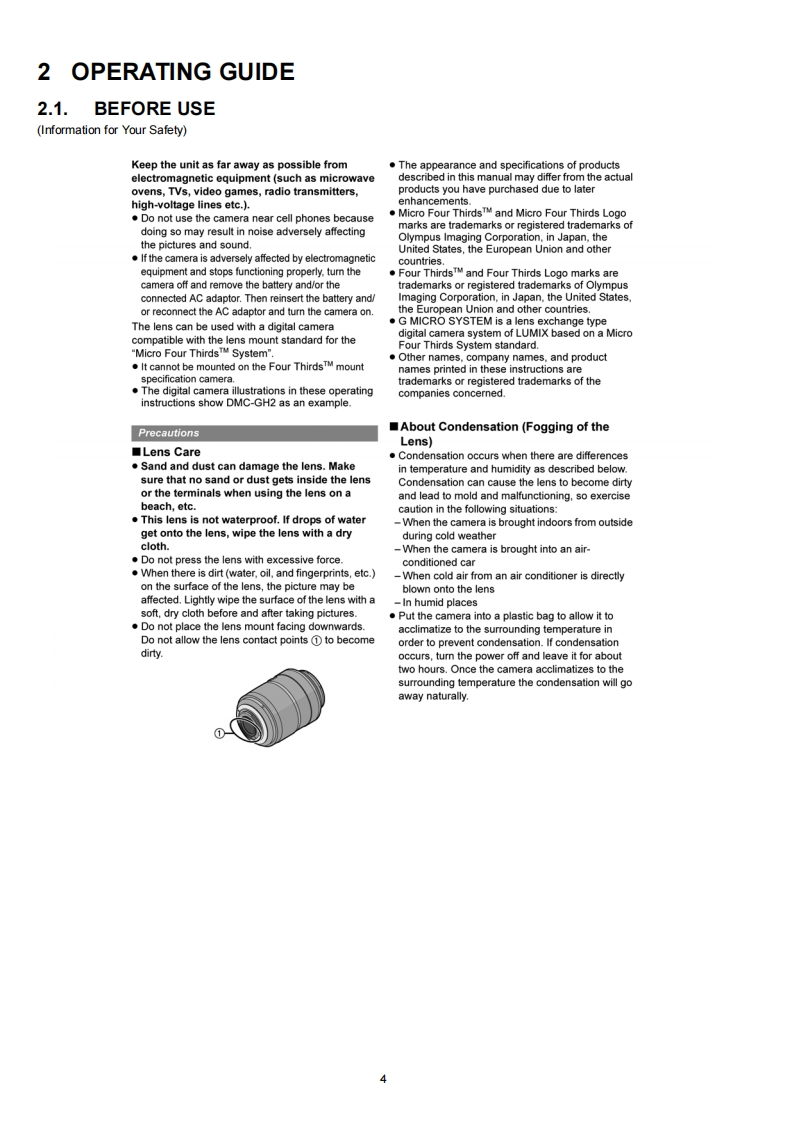

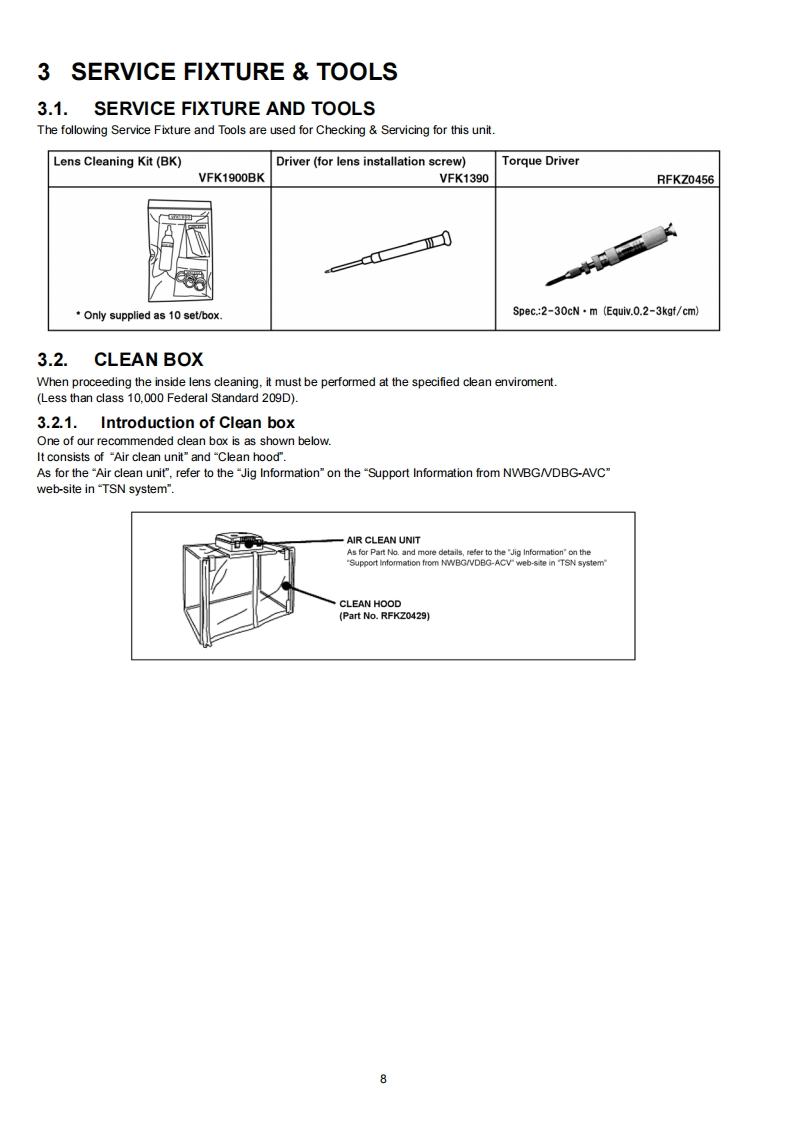

ORDER NO.DSC1011062CEB26Service ManualInterchangeable Lens for Digital CameraLUMI☒MEGAModel No.H-FS100300PP0.l.s.GMICROH-FS100300EFOURTHIRDSH-FS100300GKVol.1005SpecificationsINTERCHANGEABLE LENS FOR DIGITAL CAMERA"LUMIX G VARIO 100-300 mm/F4.0-5.6/MEGA O.I.S."Focal lengthf=100 mm to 300 mm(35 mm film camera equivalent:200 mm to 600 mm)Aperture type7 diaphragm blades/circular aperture diaphragmAperture rangeF4.0(Wide)to F5.6(Tele)Minimum aperture valueF22Lens construction17 elements in 12 groups (1 ED lens)In focus distance1.5 m to oo (from the focus distance reference line)Maximum image magnification0.21x (35 mm film camera equivalent:0.42x)Optical image stabilizerAvailableMount"Micro Four Thirds Mount"Angle of view12°WMde)to4.1°(Tele)Filter diameter67 mmMax.diameterApprox.73.6 mmOverall lengthApprox.126 mm(from the tip of the lens to the base side of the lens mount)MassApprox.520 gAWARNINGThis service information is designed for experienced repair technicians only and is not designed for use by the general public.It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to serviceor repair the product or products dealt with in this service information by anyone else could result in serious injury or death.Panasonic Corporation 2010 Unauthorized copy-Panasonicing and distribution is a violation of law.
