松下H-FT012维修手册

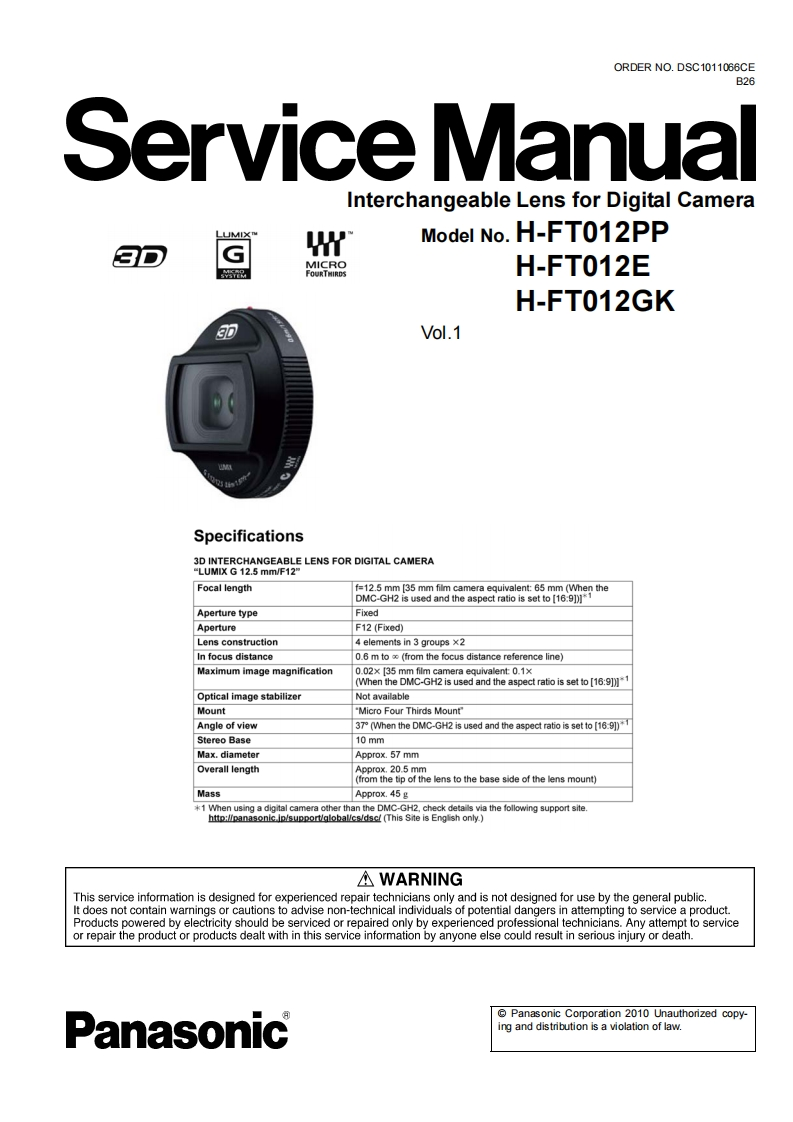

ORDER NO.DSC1011066CEB26Service ManualInterchangeable Lens for Digital CameraLUMIXModel No.H-FT012PPDGWH-FT012EH-FT012GK的Vol.1Specifications3D INTERCHANGEABLE LENS FOR DIGITAL CAMERA"LUMIX G 12.5 mm/F12"Focal length6&o股5g网5 pec o8oTms9Aperture typeFixedApertureF12 (Fixed)Lens construction4 elements in 3 groups x2In focus distance0.6 m to (from the focus distance reference line)Maximum image magnification0.02x [35 mm film camera equivalent:0.1x(When the DMC-GH2 is used and the aspect ratio is set to [16:9])]Optical image stabilizerNot availableMount"Micro Four Thirds Mount"Angle of view37(When the DMC-GH2 is used and the aspect ratio is set to [16.9])Stereo Base10mmMax.diameterApprox.57 mmOverall lengthApprox.20.5 mm(from the tip of the lens to the base side of the lens mount)MassApprox.45 g1When using a digital camera other than the DMC-GH2,check details via the following support site.http://panasonic ip/support/globalcs/dsc/(This Site is Englsh only.)AWARNINGThis service information is designed for experienced repair technicians only and is not designed for use by the general public.It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to serviceor repair the product or products dealt with in this service information by anyone else could result in serious injury or death.Panasonic Corporation 2010 Unauthorized copy-Panasonicing and distribution is a violation of law.
